Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1990
>>
Acclaim V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Oscilloscope Patterns and Waveforms
>>
Test 3E-3F
Test 3E-3F

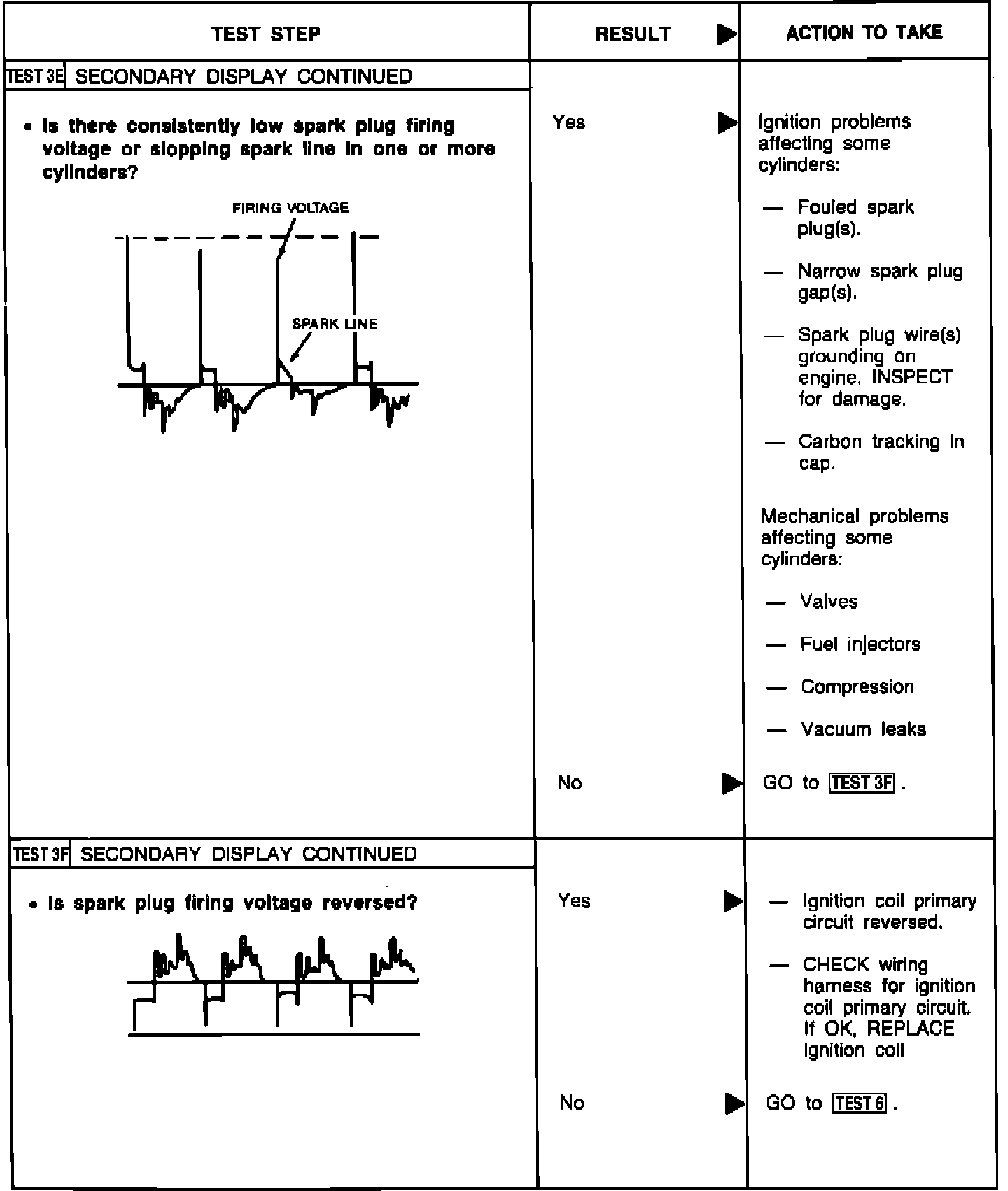

Test 3E And 3F:
