Electrical Diagrams

Fig. 16 Liftgate Wiper System Wiring Circuit:

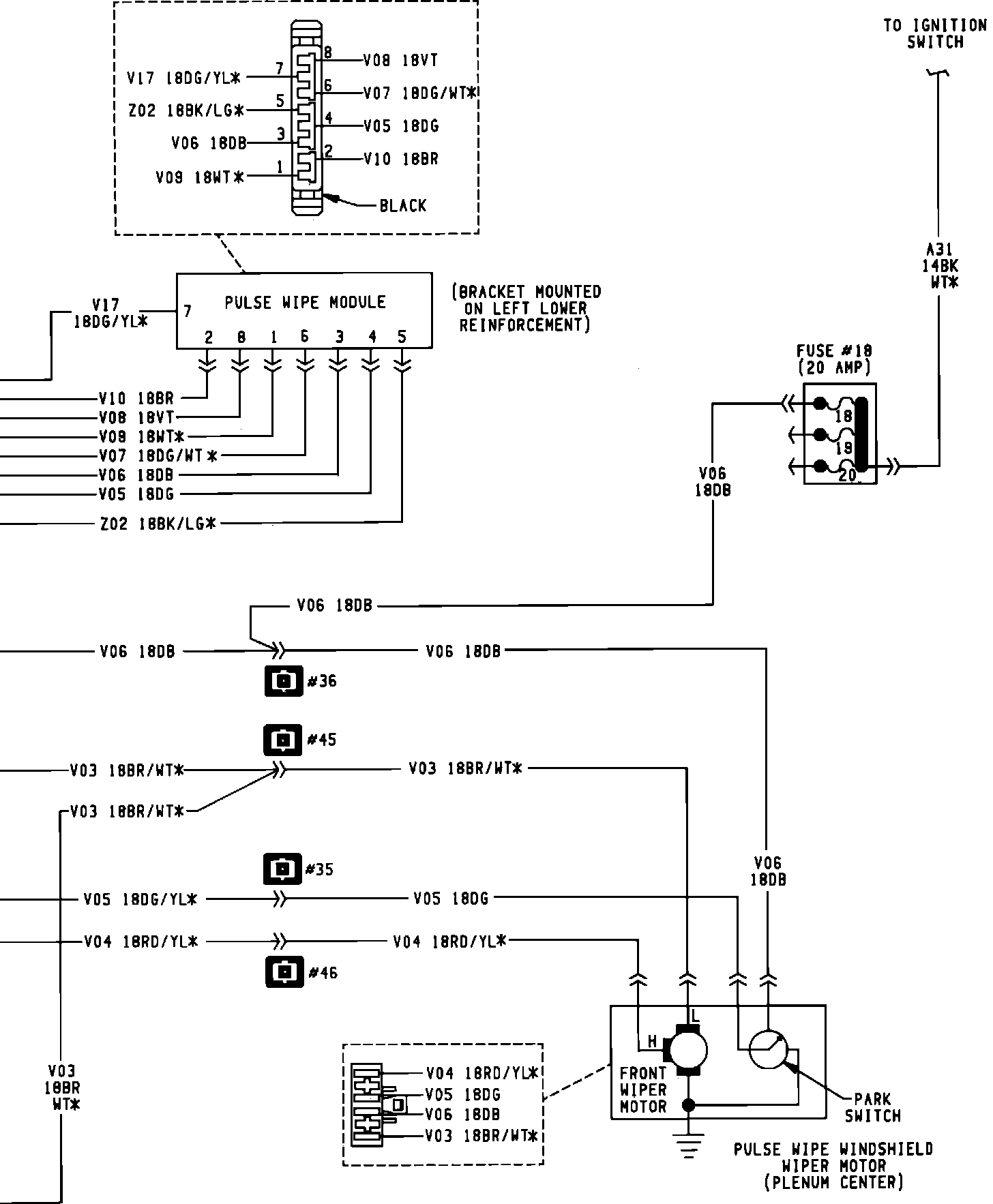

Pulse Wipe Windshield Wiper System. Non-Tilt Steering Column -- Part 1:

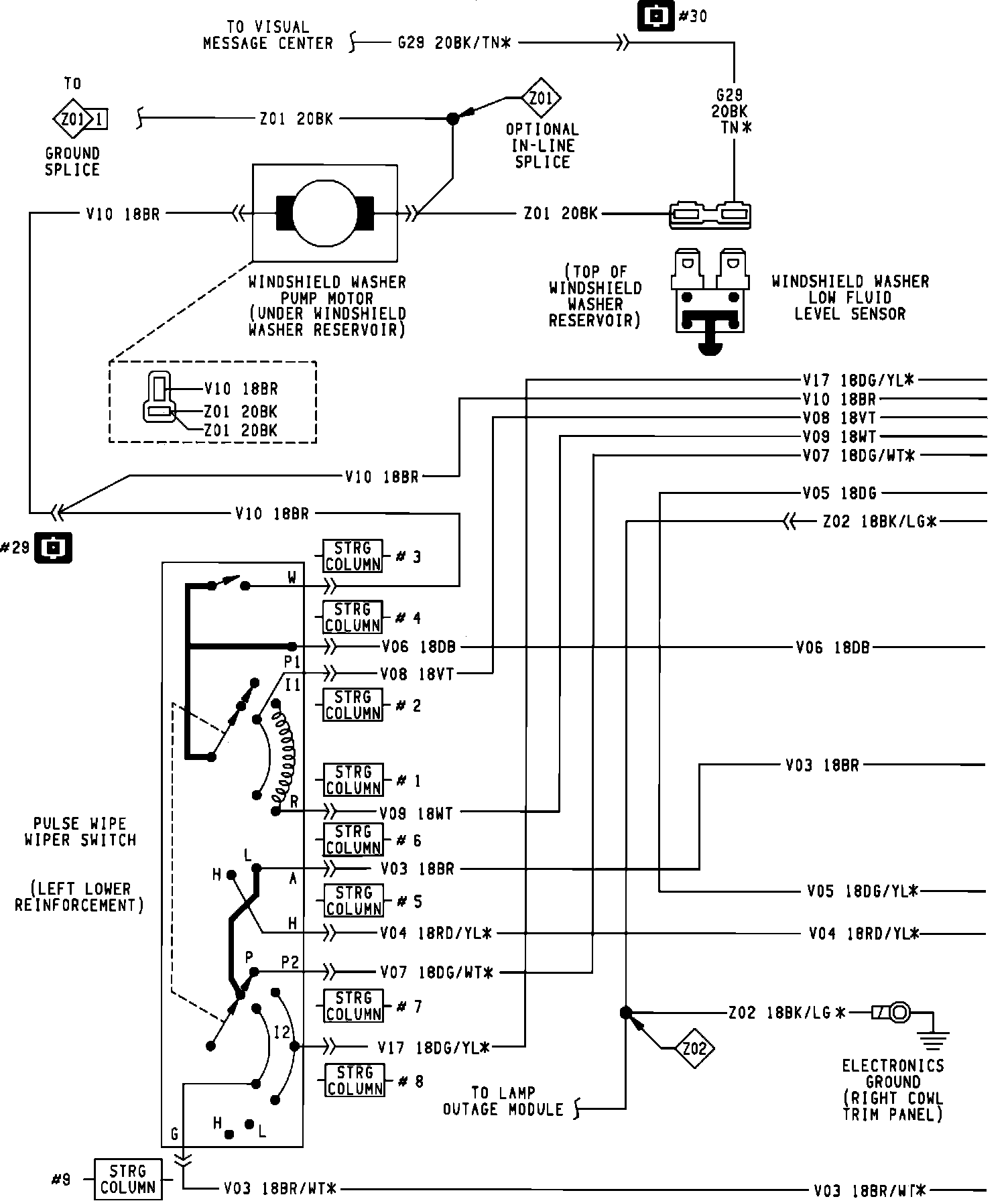

Pulse Wipe Wiper System. Non-Tilt Steering Column -- Part 2:

Pulse Wipe Windshield Wiper System. Tilt Steering Column -- Part 1:

Pulse Wipe Windshield Wiper System. Tilt Steering Column -- Part 2:
