Blower Motor: Service and Repair

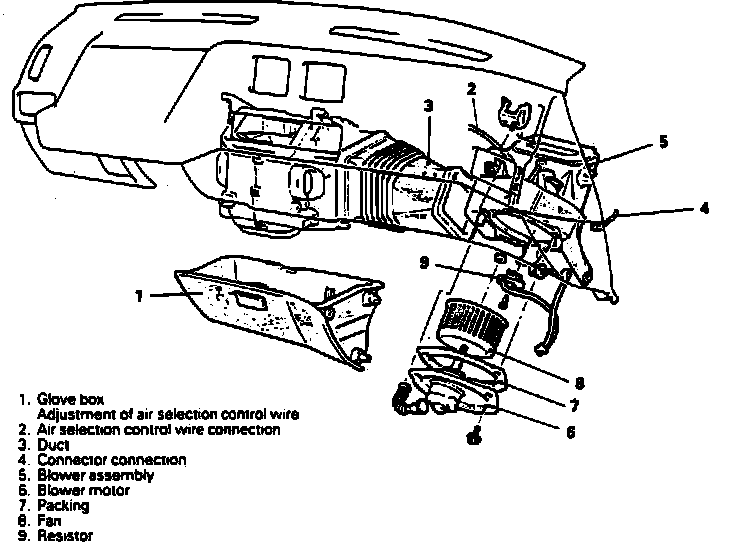

Fig. 12 Blower Motor Replacement:

1. Disconnect battery ground cable, then remove glove box.
2. Disconnect blower motor electrical connector, then remove blower motor attaching bolts and blower motor.
3. Reverse procedure to install.
