Home >> Plymouth >> 1990 >> Colt L4-1753cc 1.8L SOHC >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Locations

Seat Belt Systems: Locations

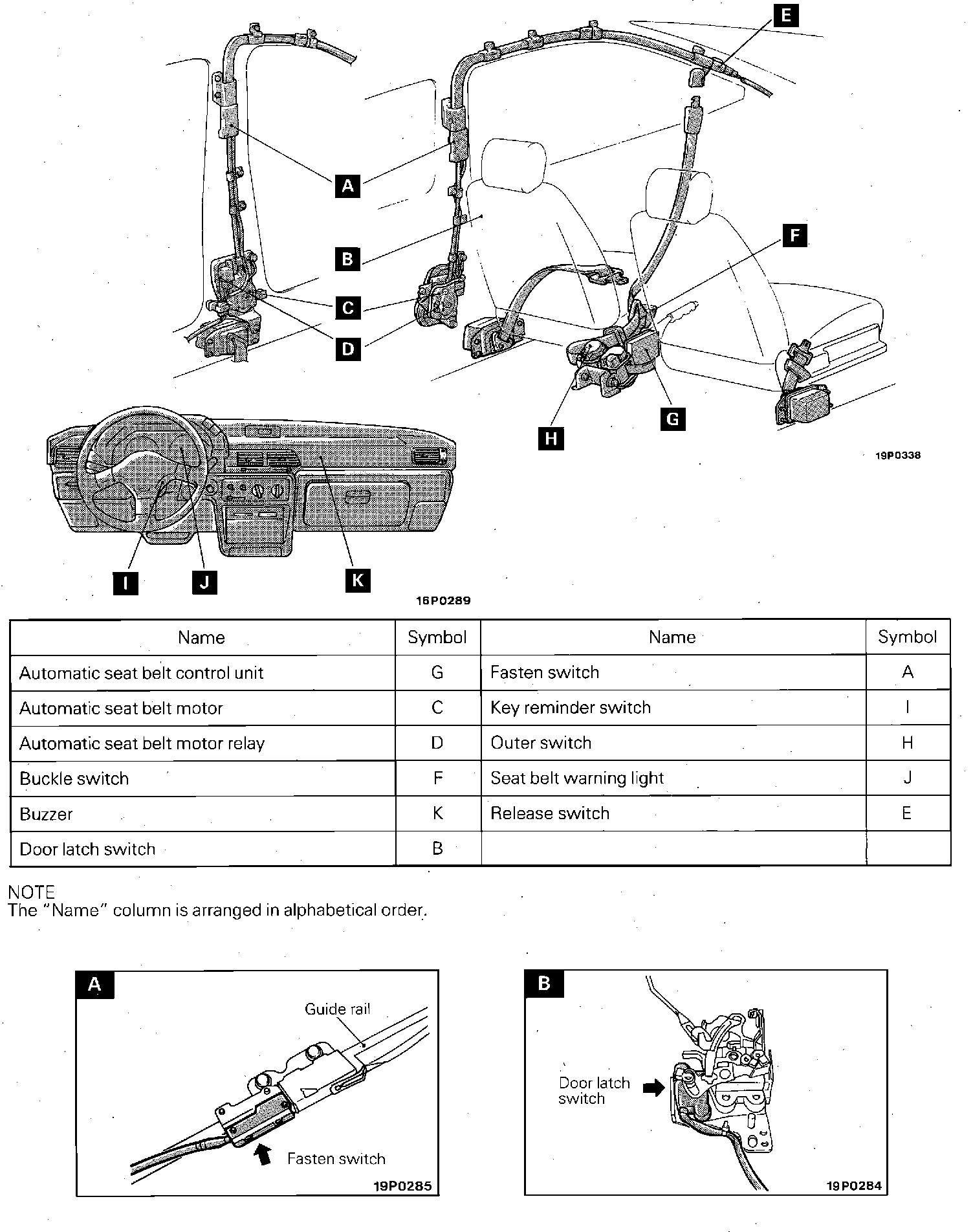

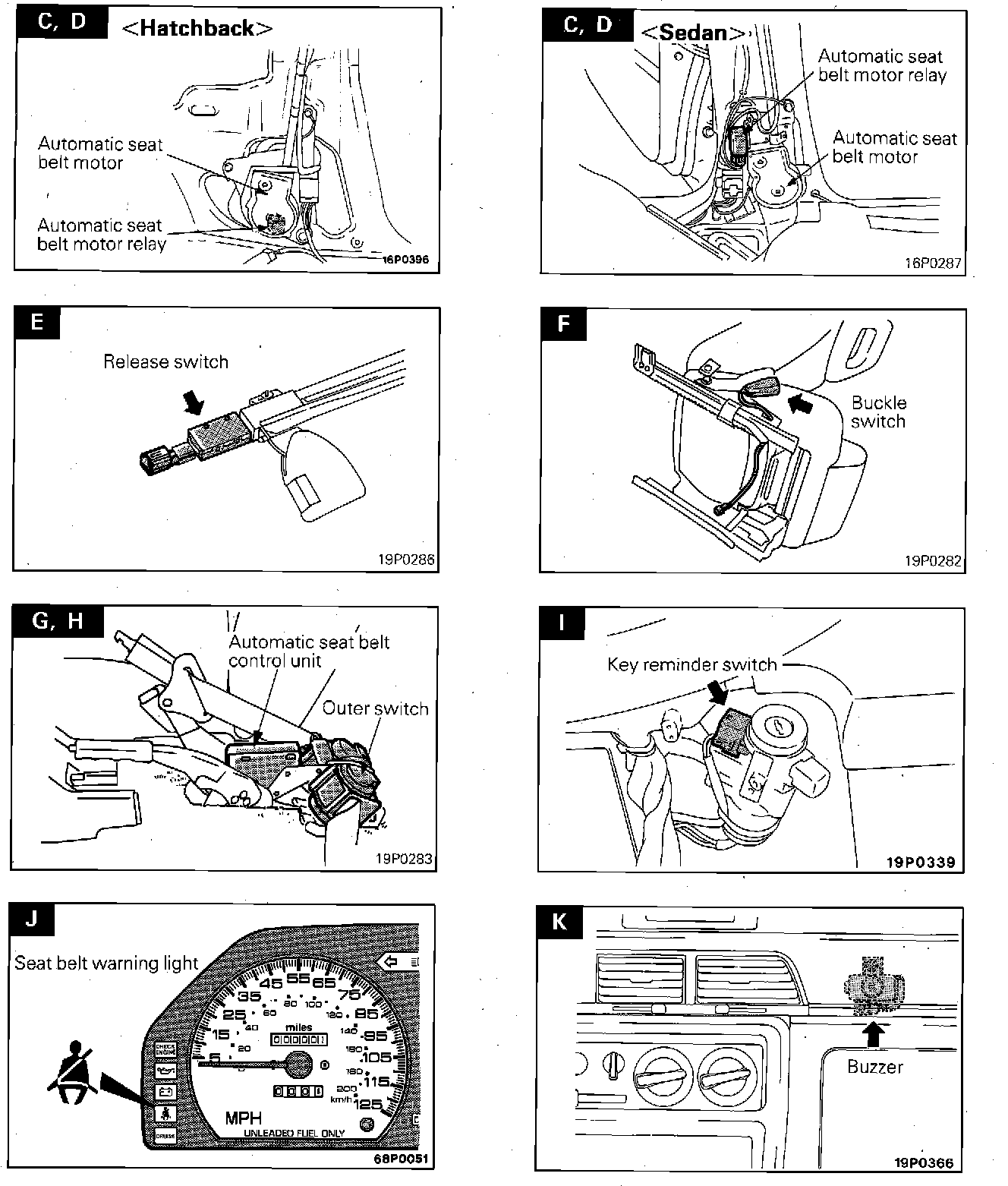

Component/Relay/Switch Locations (Automatic Seat Belt):



Component/Relay/Switch Locations (Automatic Seat Belt):
