A/T - Transfer Idler Shaft O Ring
NO.: 21-22-93GROUP: Transmission
DATE: Jul. 16, 1993
SUBJECT:
Transaxle Transfer Idler Shaft O-ring
MODELS:
1993 (B9) Colt/Summit
1990-1992 (B2) Colt/Summit
1990-1991 (B3) Vista/Summit Wagon
DISCUSSION:

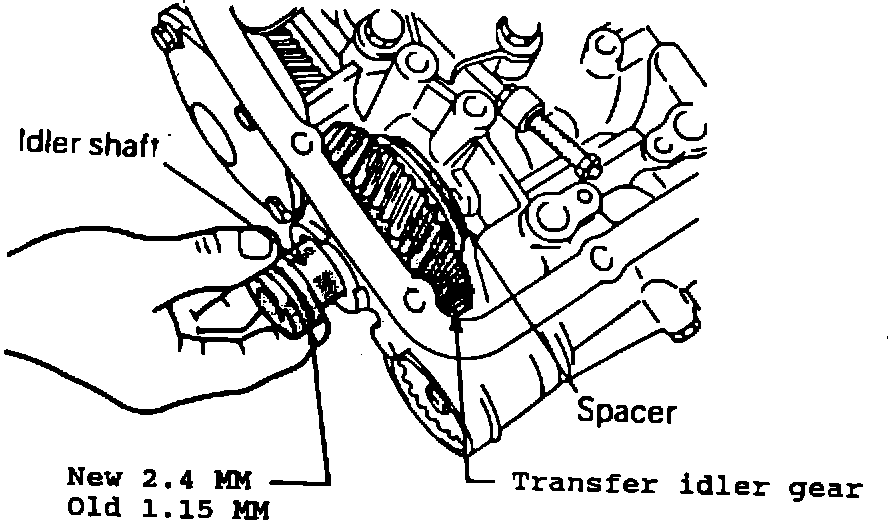

The seal ring for the transfer idler shaft was changed, beginning with the 1993 model year, on the F3A21 and the F3A22 transaxles. Prior model years used a "D" shaped ring on the idler shaft. Beginning with the 1993 model year the seal ring was changed to an "O" ring shape. The groove in the end of the shaft was changed also to accommodate this new seal ring. Service replacement parts for applications prior to 1993 will be the new O-ring style, and are not interchangeable unless replaced as a set.
PARTS INFORMATION:
Part New Old
Idler Shaft MD755126 MD722756
Seal Ring MD707516 (O-ring) MD714355 (D-ring)
POLICY: Information only
