Chart No. 0, ECU Power Supply Circuit Test
Chart No. 0, ECU Power Supply Circuit Test

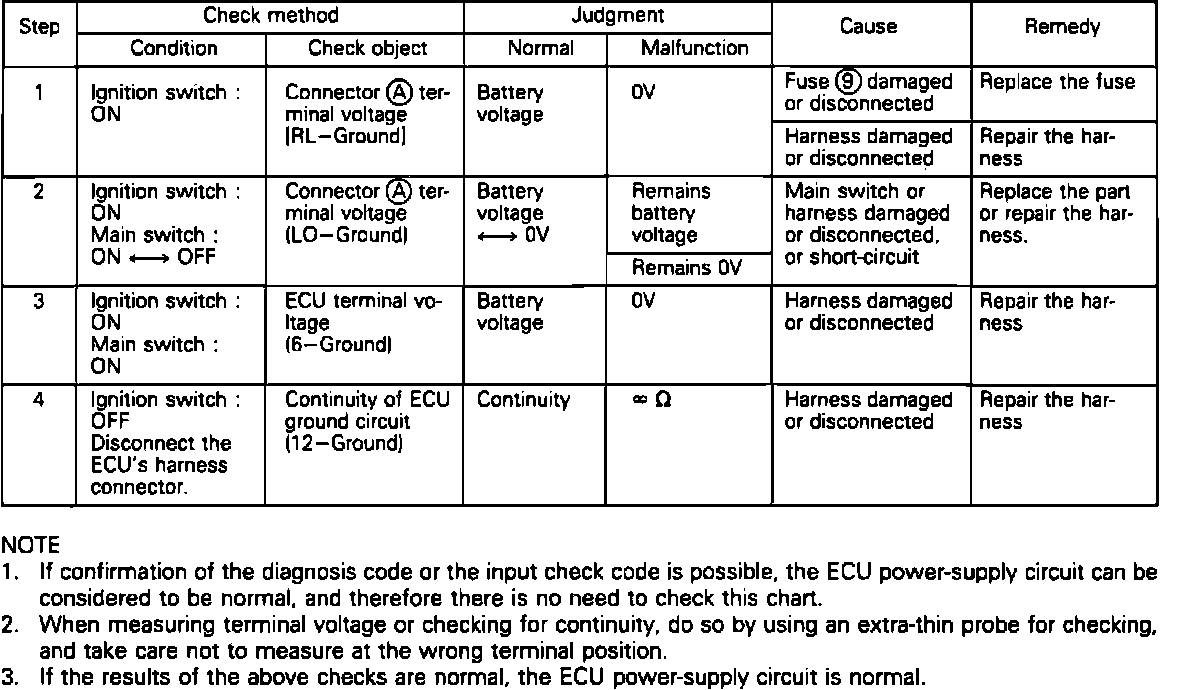

Fig. 29 Check Chart No. 0, ECU Power Supply Wiring Circuit:
