Chart No. 1, Set Switch Circuit Test
Chart No. 1, Set Switch Circuit Test

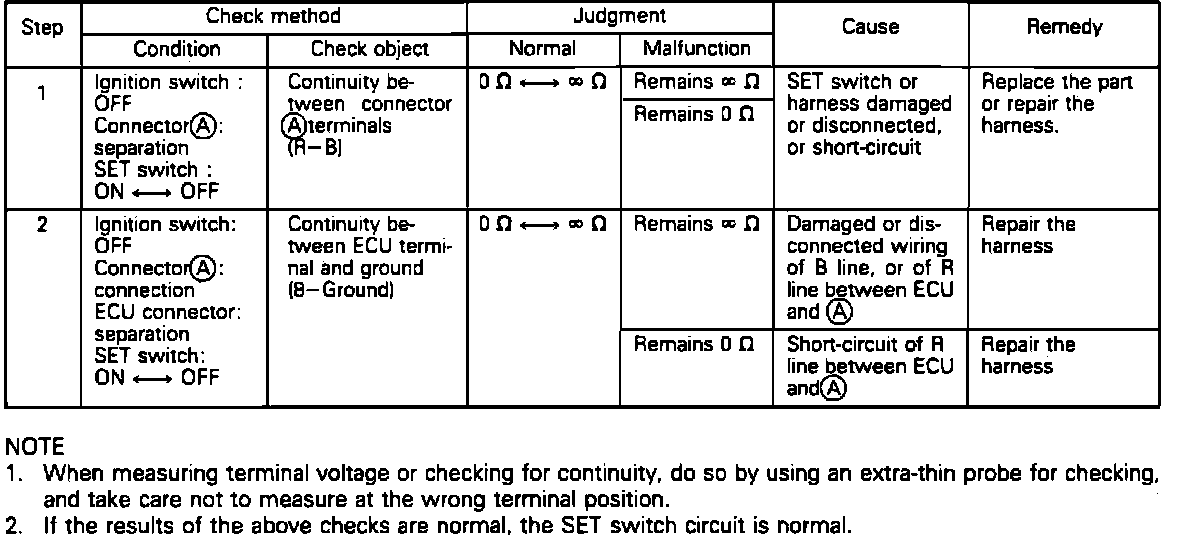

Fig. 30 Check Chart No. 1, Set Switch Wiring Circuit:
