Chart No. 4, Actuator Circuit Test
Chart No. 4, Actuator Circuit Test

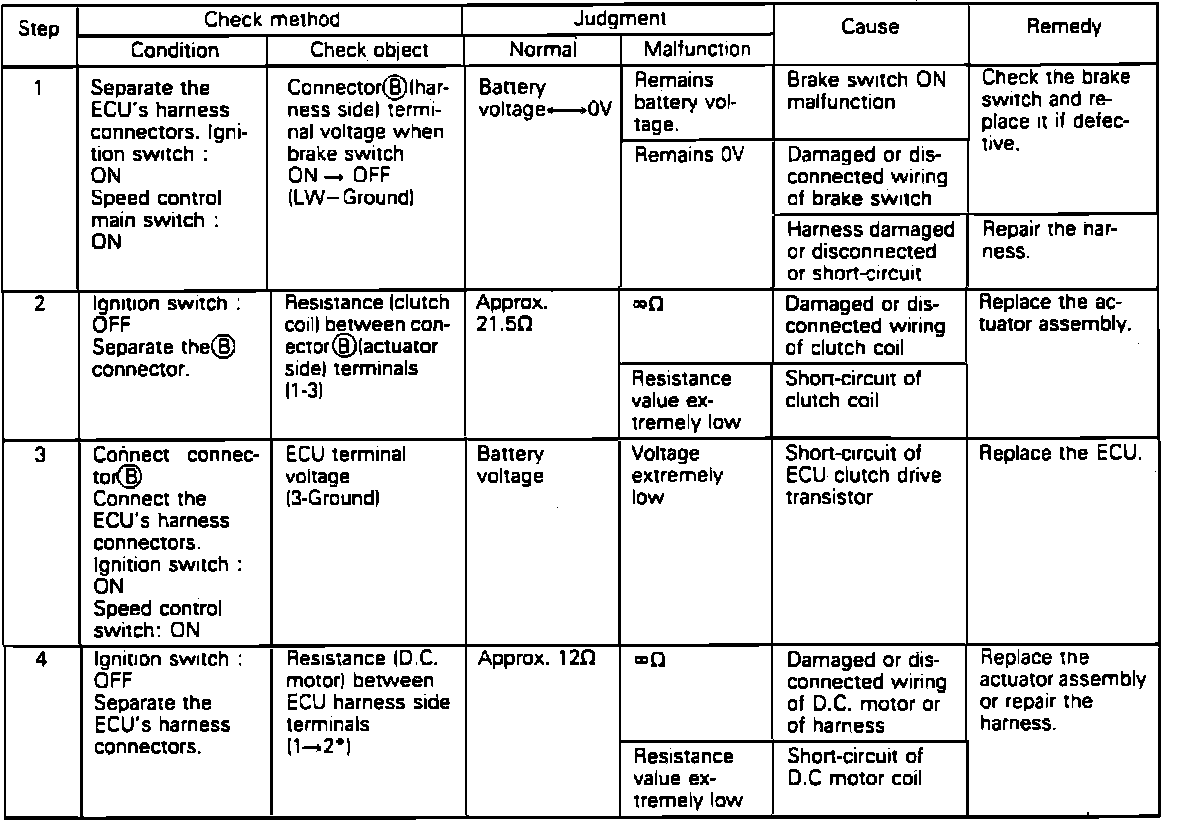

Fig. 33 Check Chart No. 4, Actuator Wiring Circuit:
