Brake Fluid Pressure Sensor/Switch
Brake Fluid Pressure Sensor/Switch

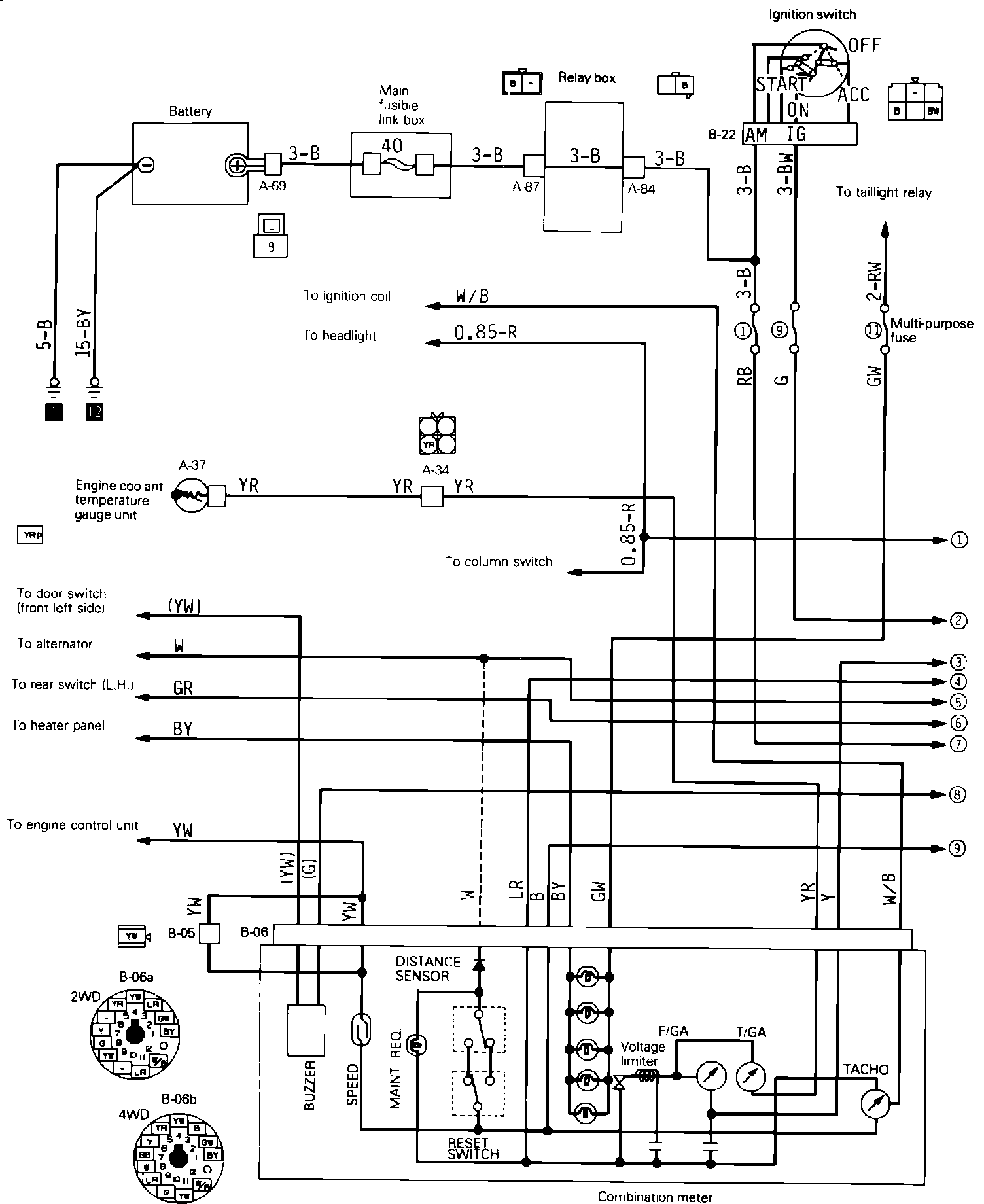

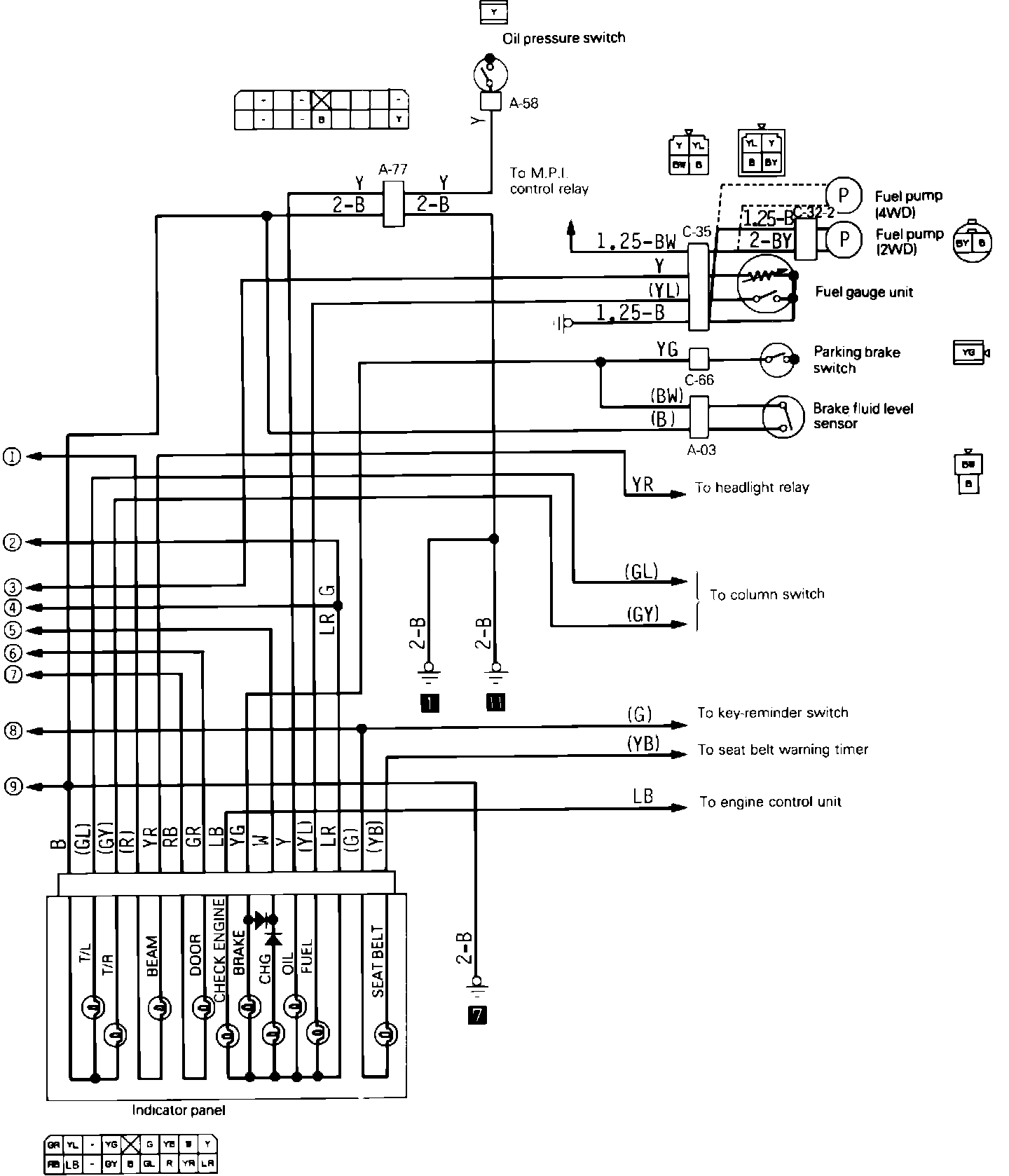

Instrument Panel (Gauges & Meters):
Instrument Panel (Gauges & Meters):
