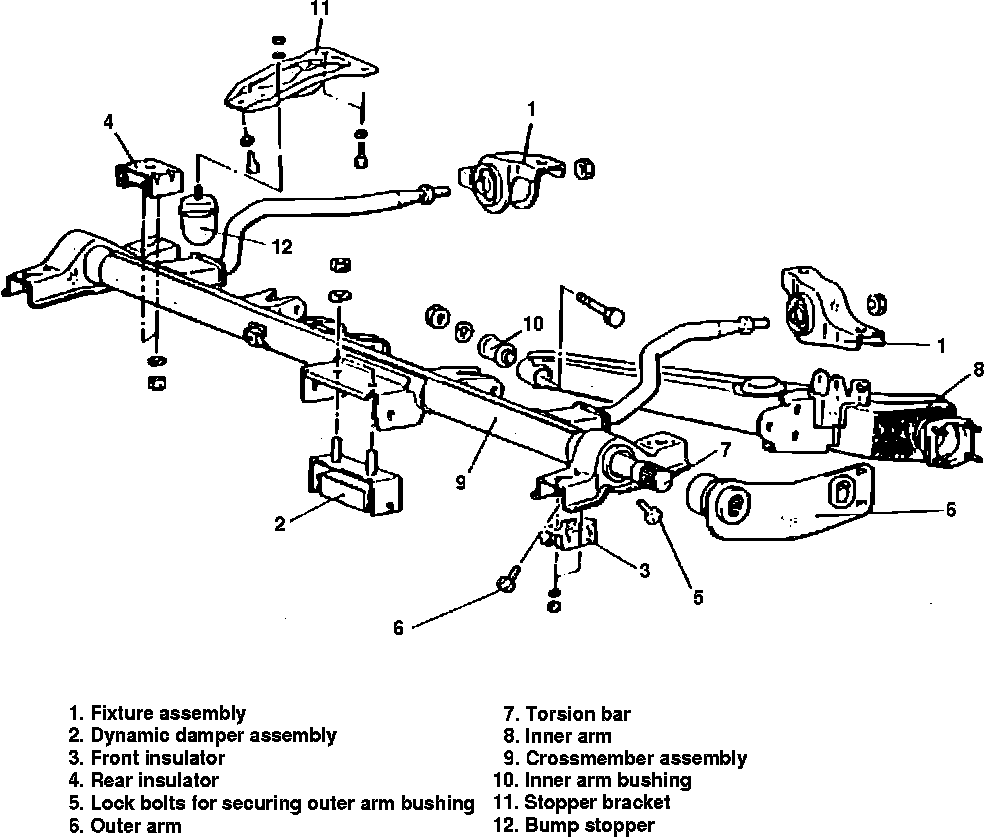

Fig. 19 Rear Suspension Removal & Installation w/4WD:

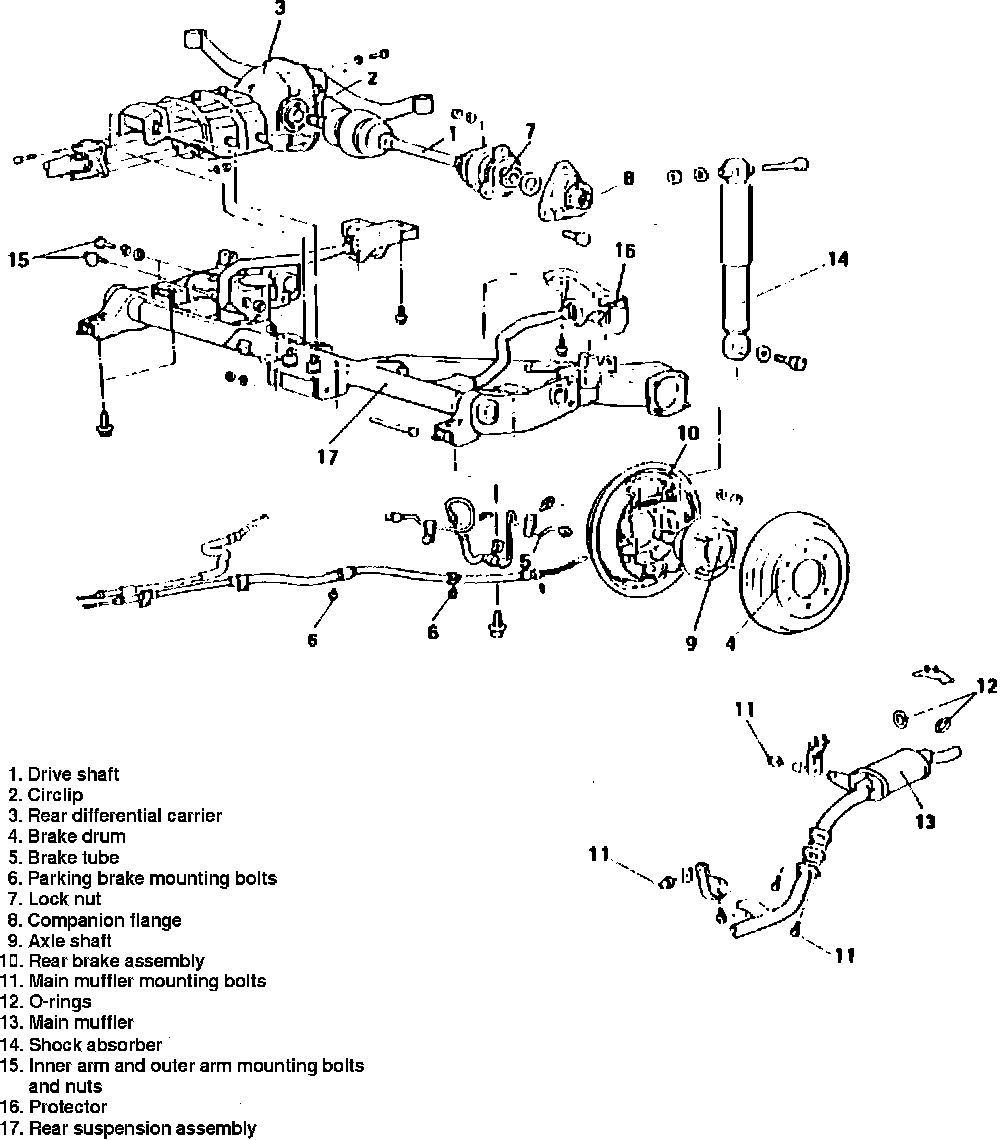

Fig. 20 Rear Suspension Disassembly & Assembly w/4WD:
