Instrument Cluster / Carrier: Service and Repair

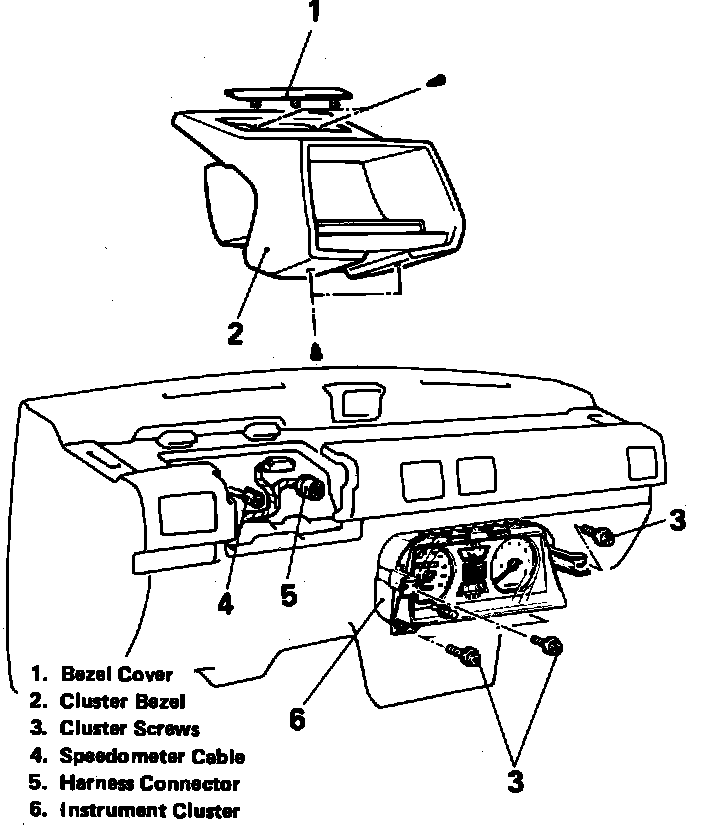

Fig. 8 Instrument Cluster:

1. Disconnect battery ground cable.
2. Remove cluster bezel cover using suitable tool, then remove bezel attaching screws and bezel.
3. Remove instrument cluster retaining screws and pull cluster away from instrument panel.
4. Disconnect speedometer cable and electrical connectors, then remove instrument cluster.
5. Reverse procedure to install.
