Rear Wiper/Washer System

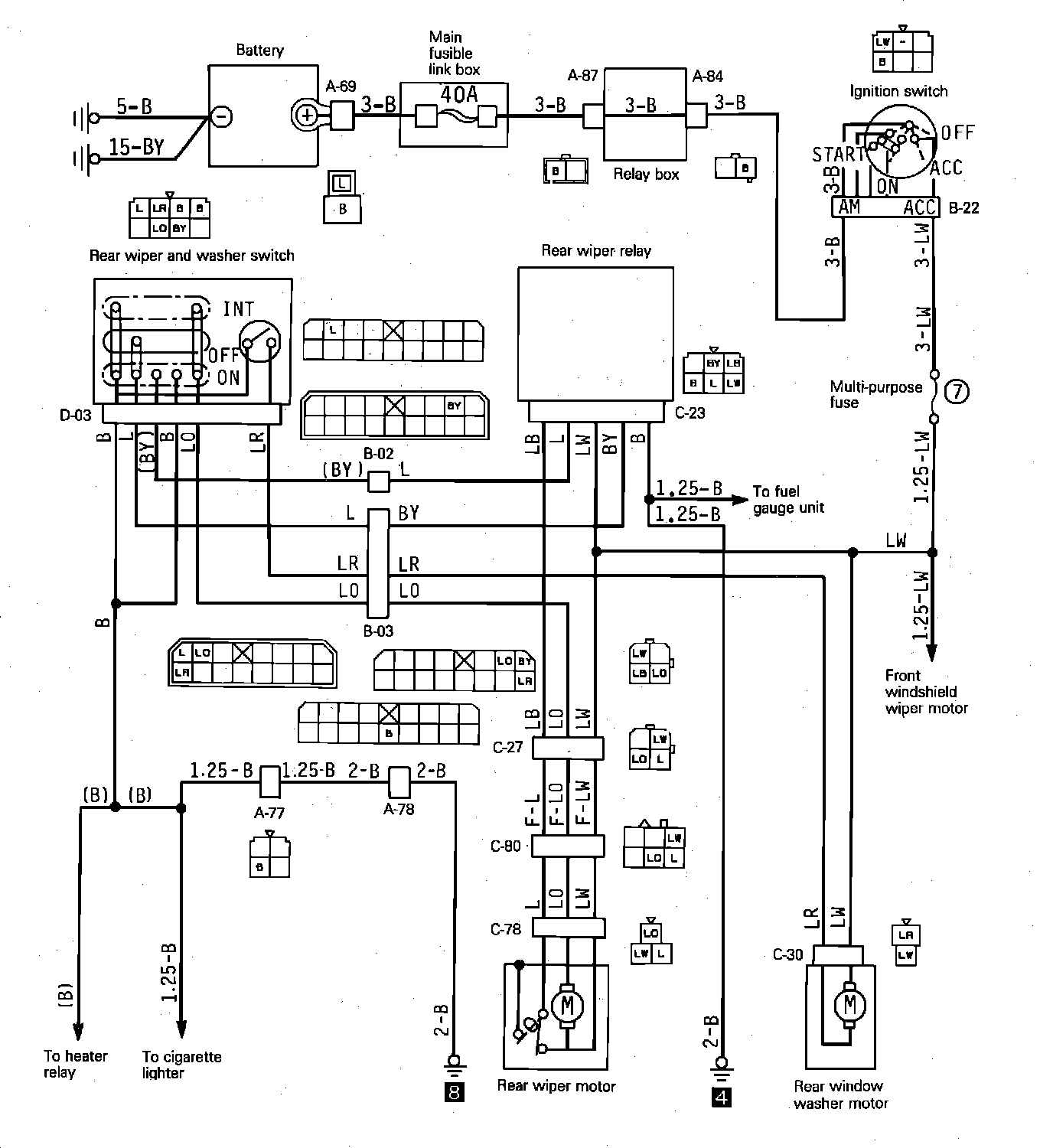

Fig. 26 Rear Wiper System Wiring Circuit:

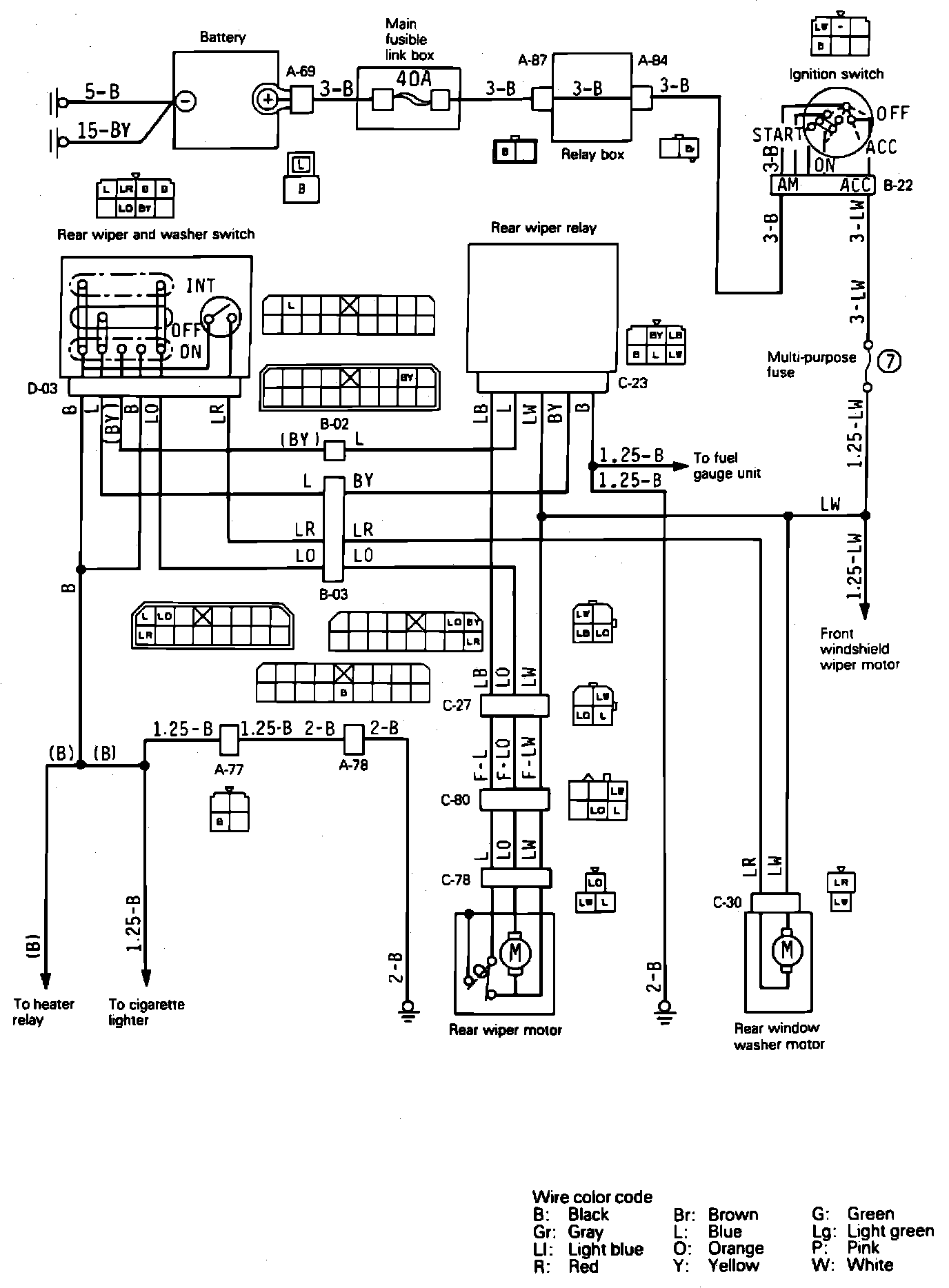

Windshield Wiper & Washer (Rear):
