Mirrors: Testing and Inspection

ELECTRIC REMOTE-CONTROL MIRROR INSPECTION
Check the operation of the electric remote-control door mirror

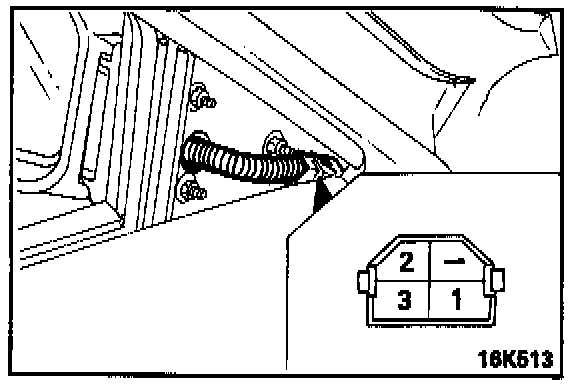

1. Disconnect the wiring connector from mirror.

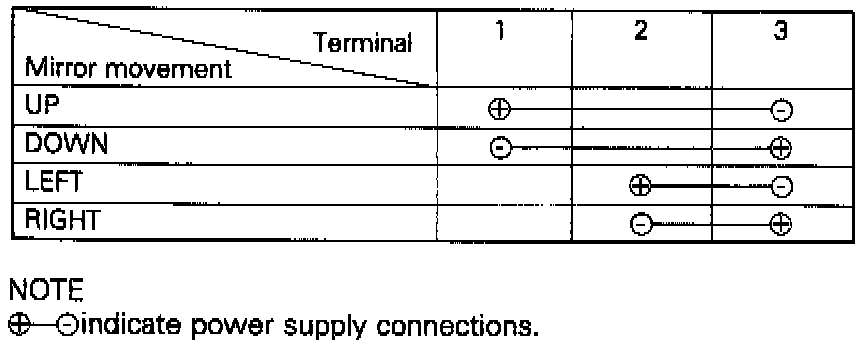

2. Confirm that the mirror moves correctly when battery voltage is applied to the mirror side terminals, as indicated below.
