Home >> Plymouth >> 1990 >> Colt Vista 4WD L4-1997cc 2.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 1

Part 1

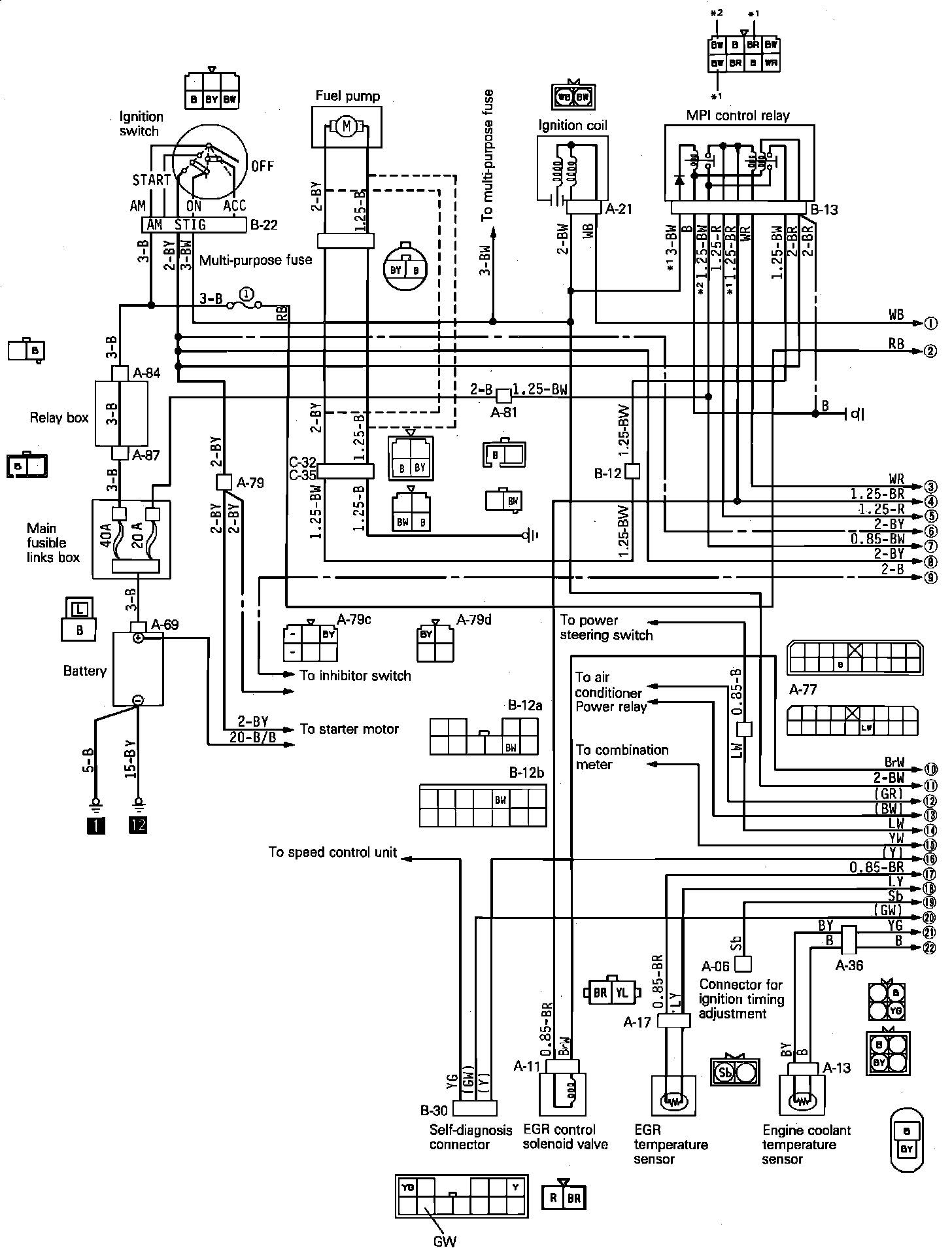

Fuel Injection (Part 1 Of 2):
