Plymouth
>>
1990
>>
Colt Wagon 2WD L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

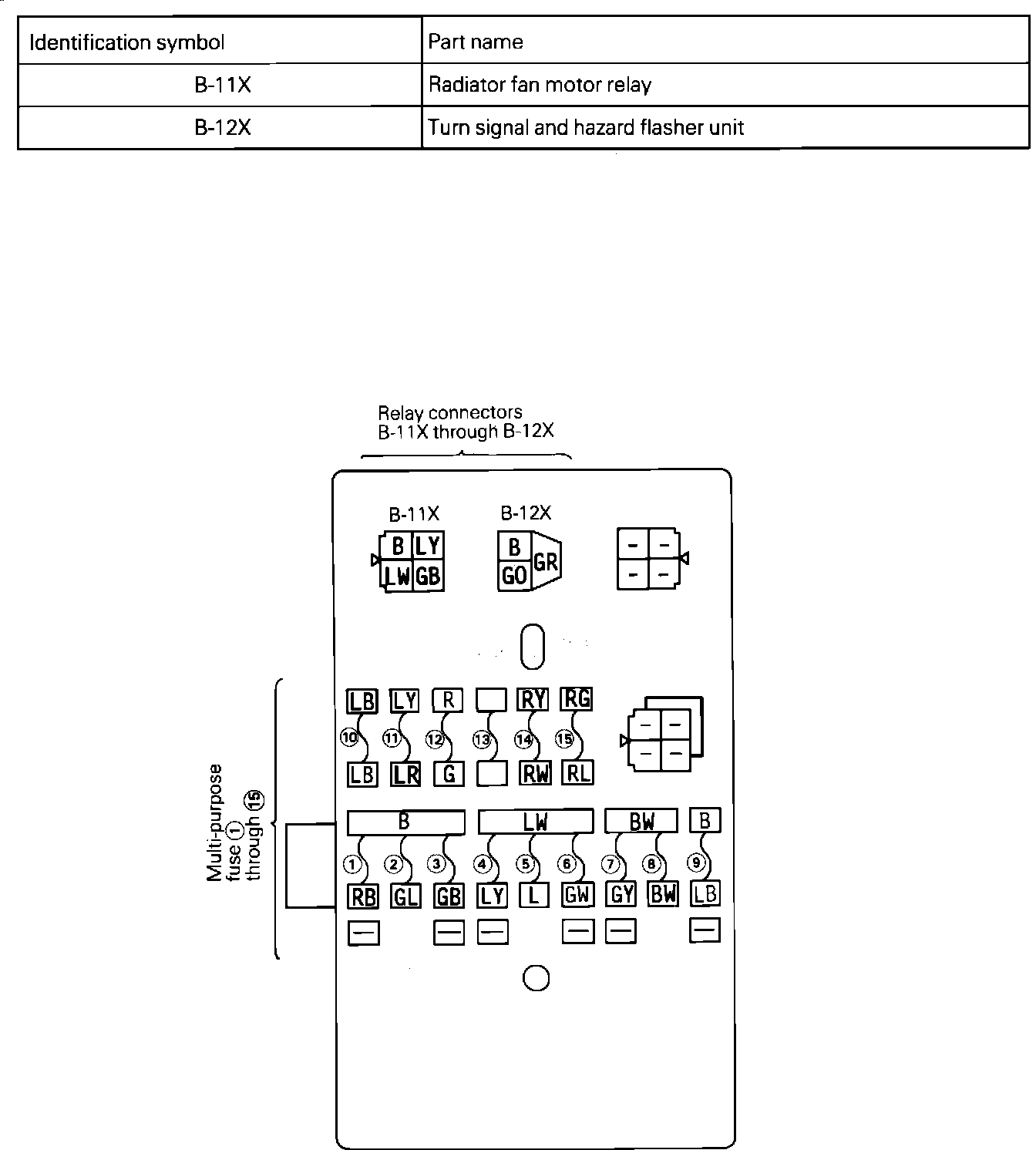

Fuse Block
>>
Part 1 of 2
Part 1 of 2
Fuse & Relay Panels:
