Engine Compartment Connector Locations
Engine Compartment Connector Locations

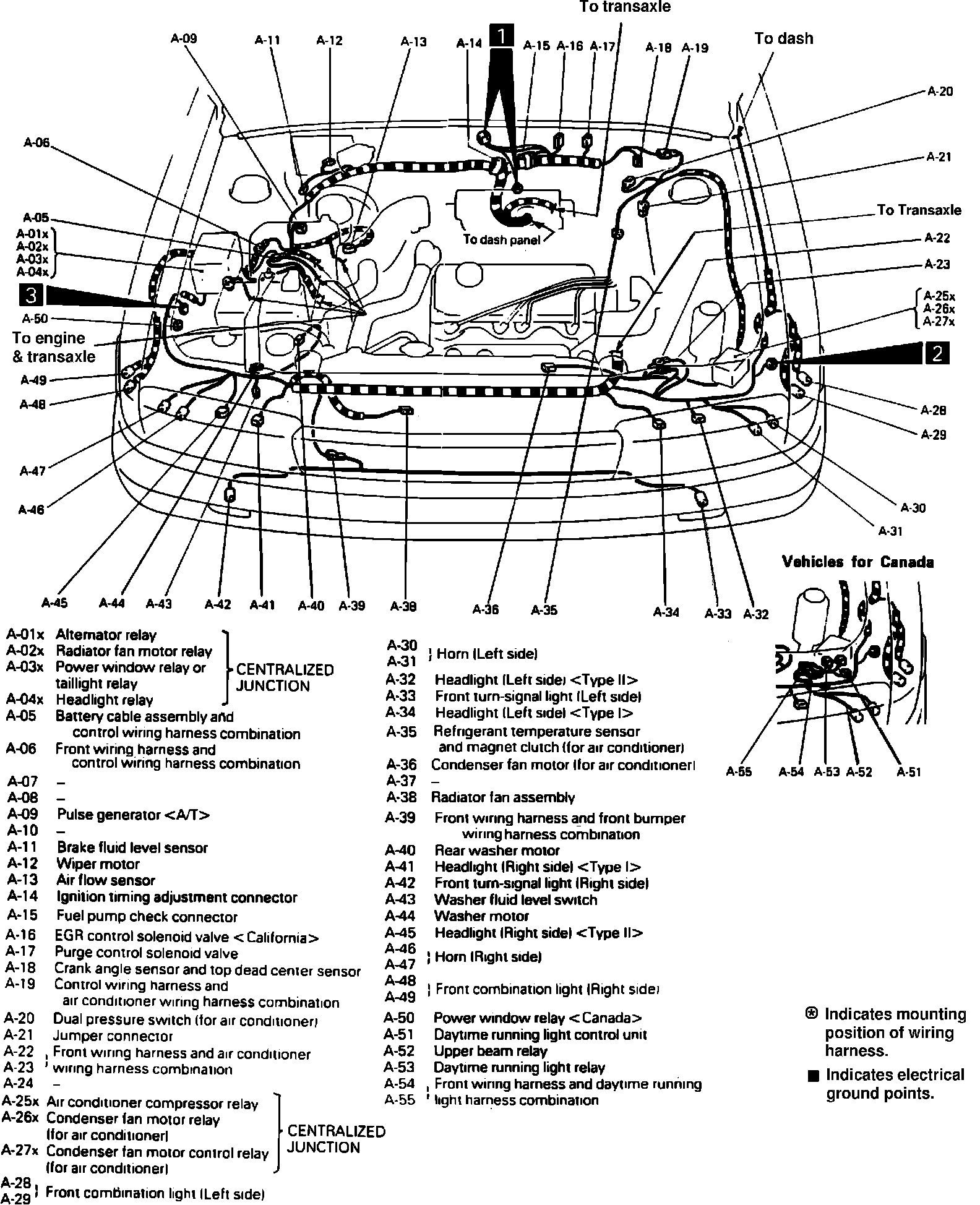

Component Connectors:

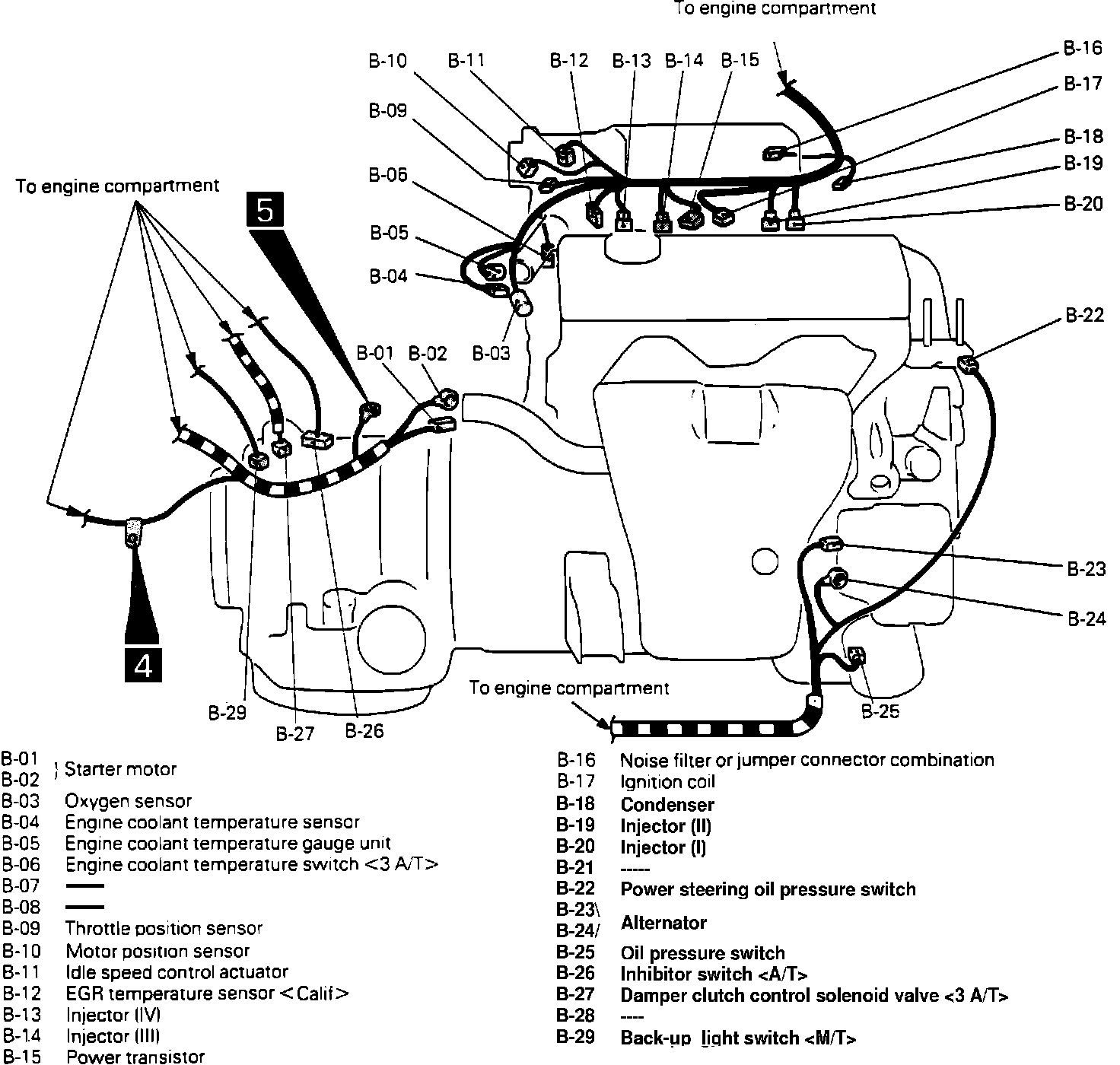

Engine Compartment Harness Connections:
