Electrical Diagrams

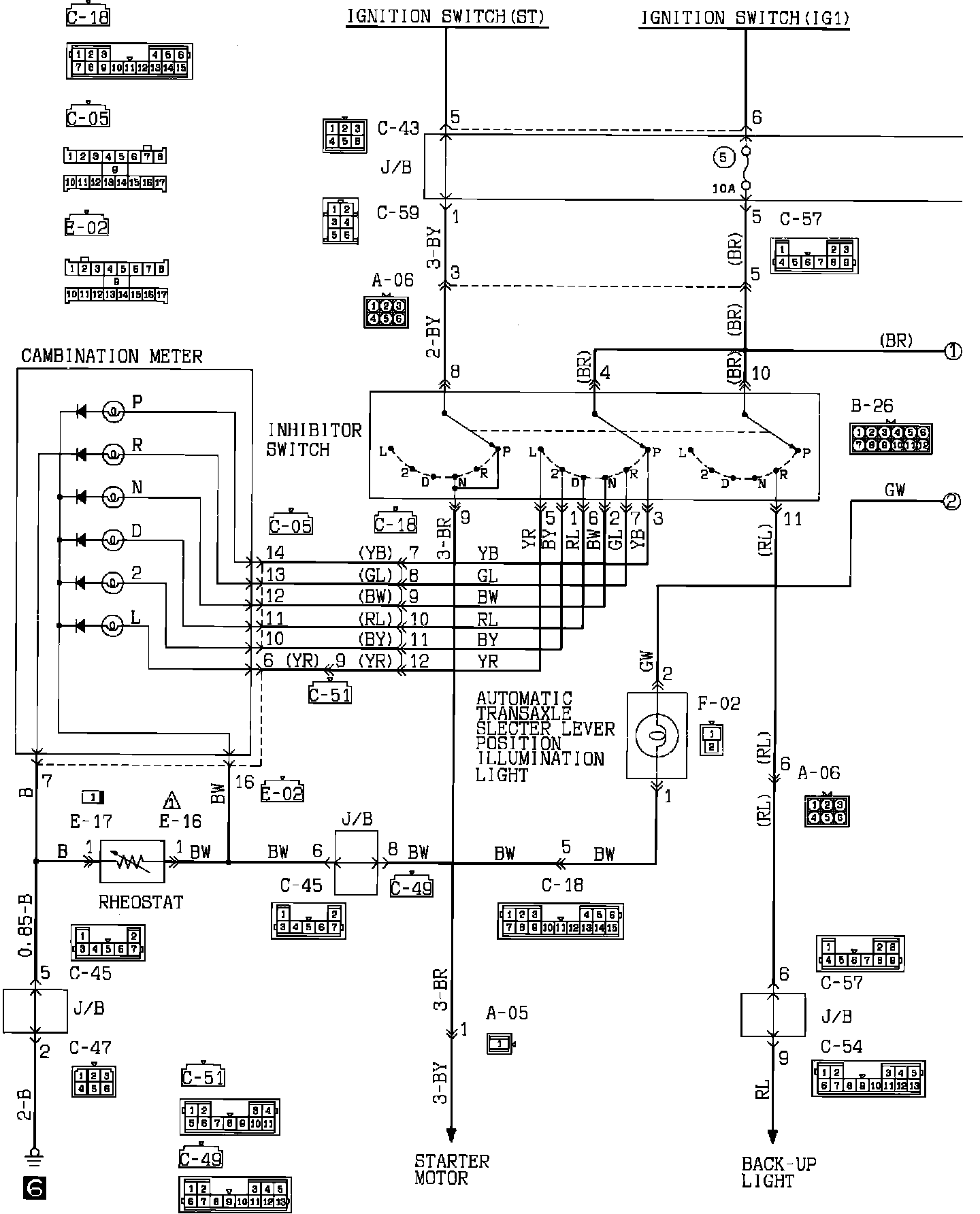

Automatic Transmission W/3 Speed Sedan:



Automatic Transmission With 3 Speed Sedan:

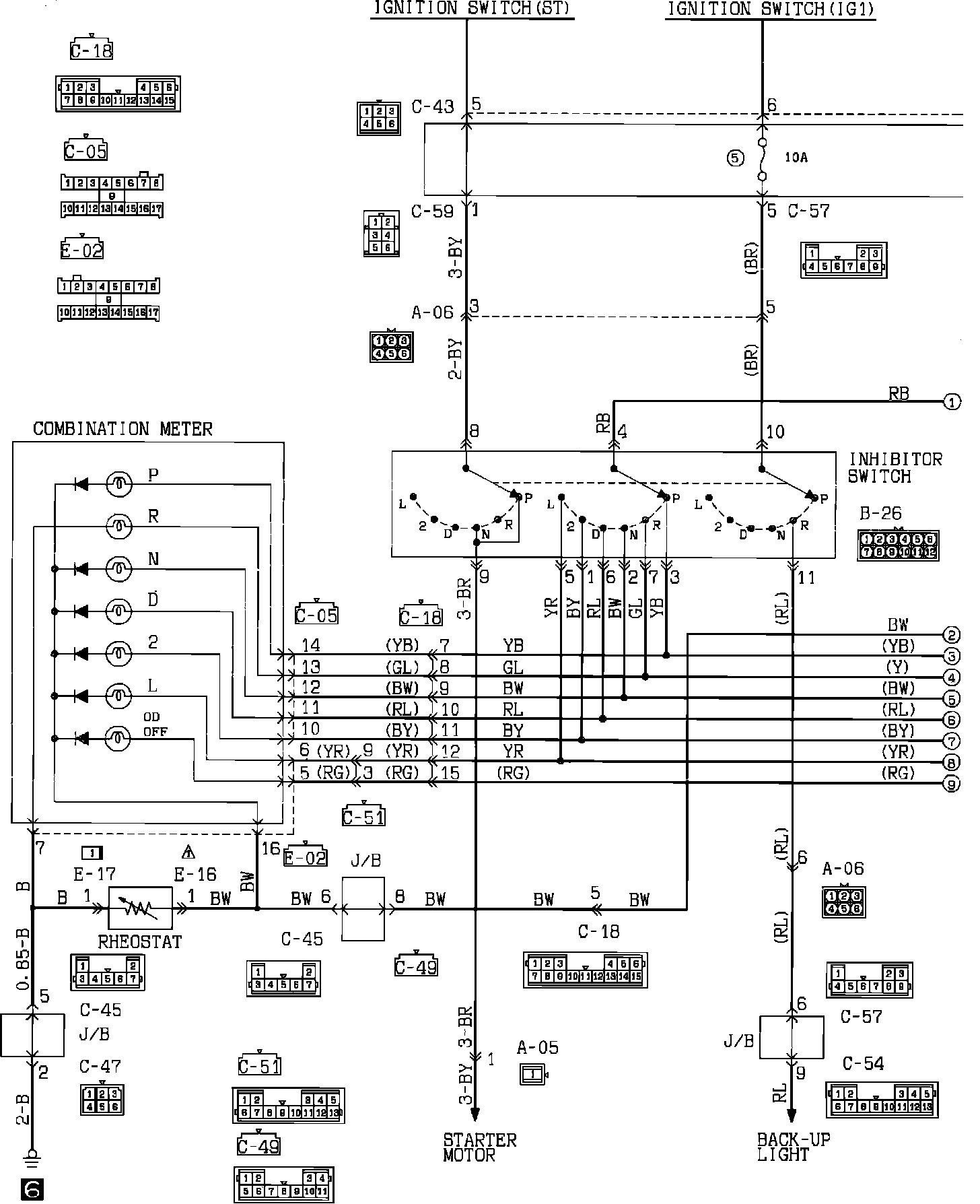

Automatic Transmission W/4 Speed Sedan:

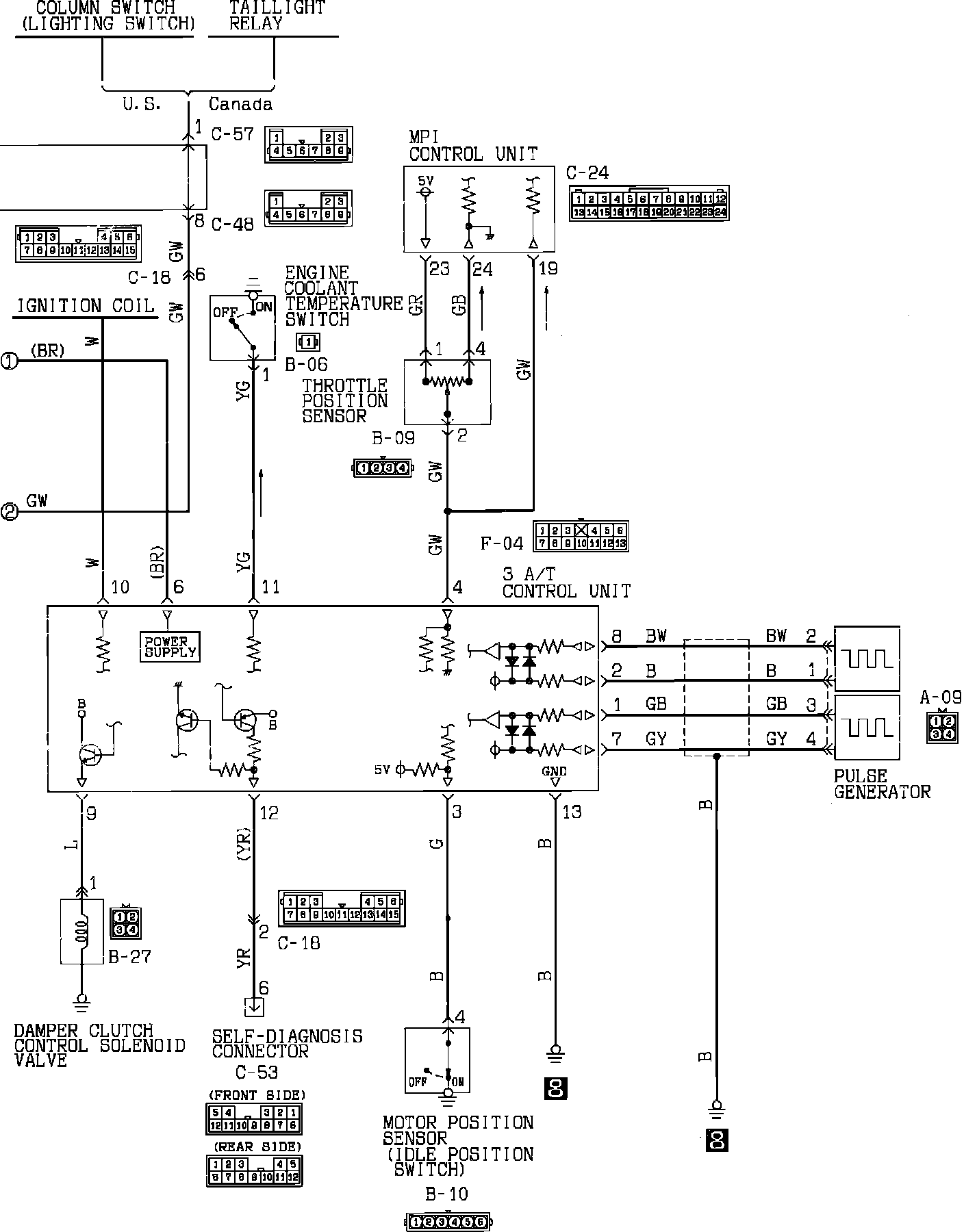

Automatic Transmission W/4 Speed Sedan:

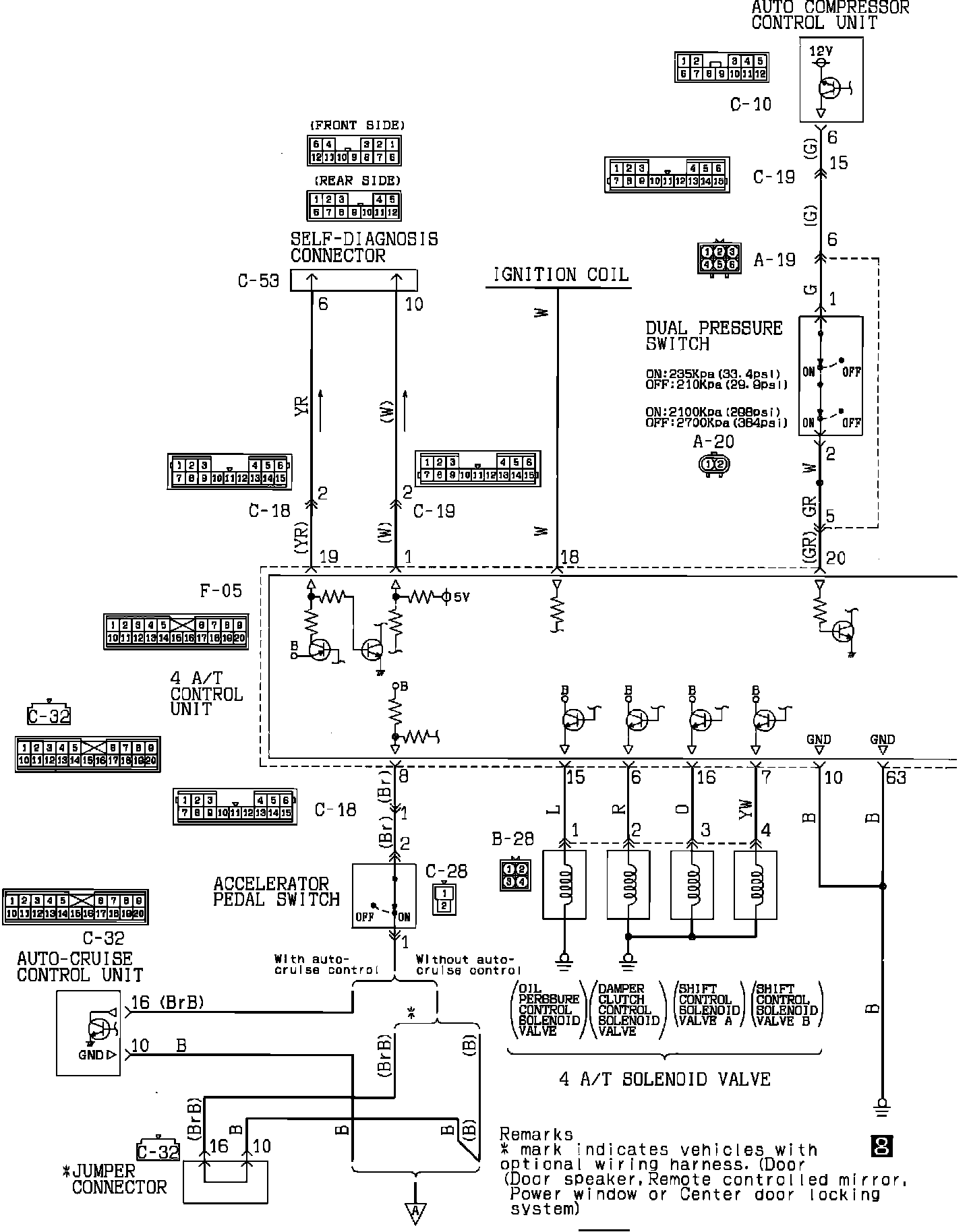

Automatic Transmission W/4 Speed Sedan:



Automatic Transmission W/4 Speed Sedan:



Automatic Transaxle Wagon:
