Engine Control Module

MULTI ECU CONNECTORS

(View from Harness End)









10-WAY CONNECTOR








18-WAY CONNECTOR

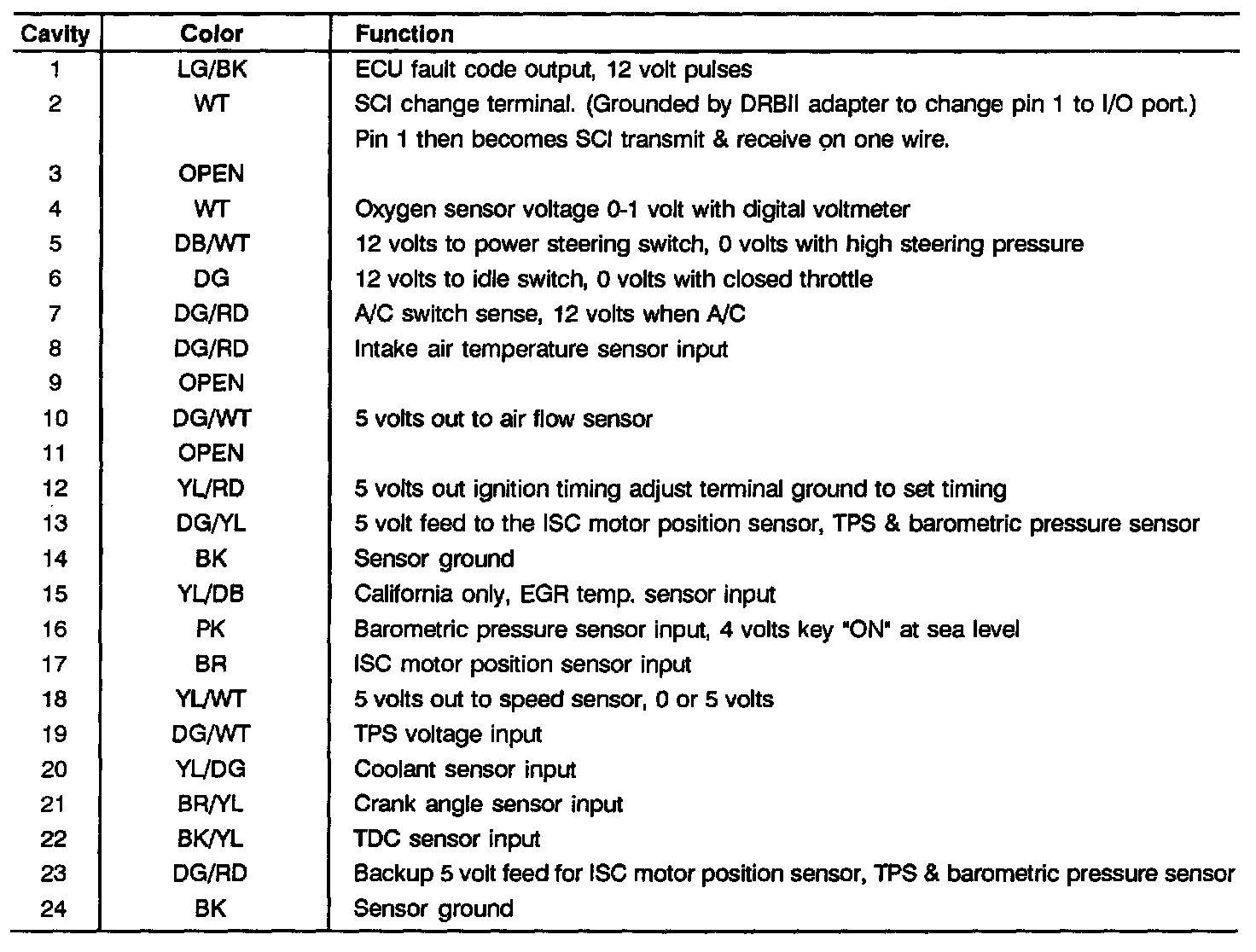

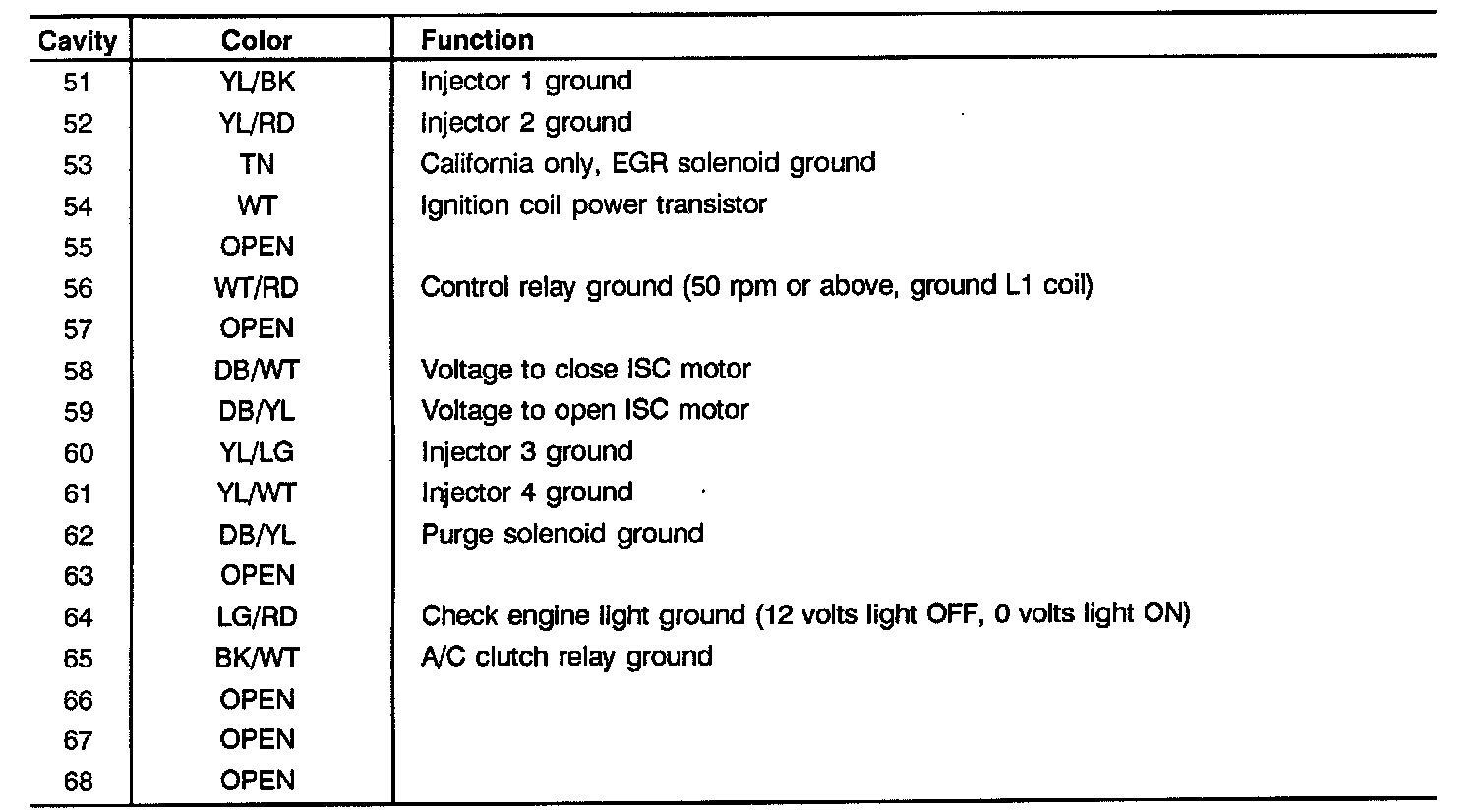

24-WAY CONNECTOR
