Clearance and Design Specifications

Front
see Transmission/Drivetrain

Rear

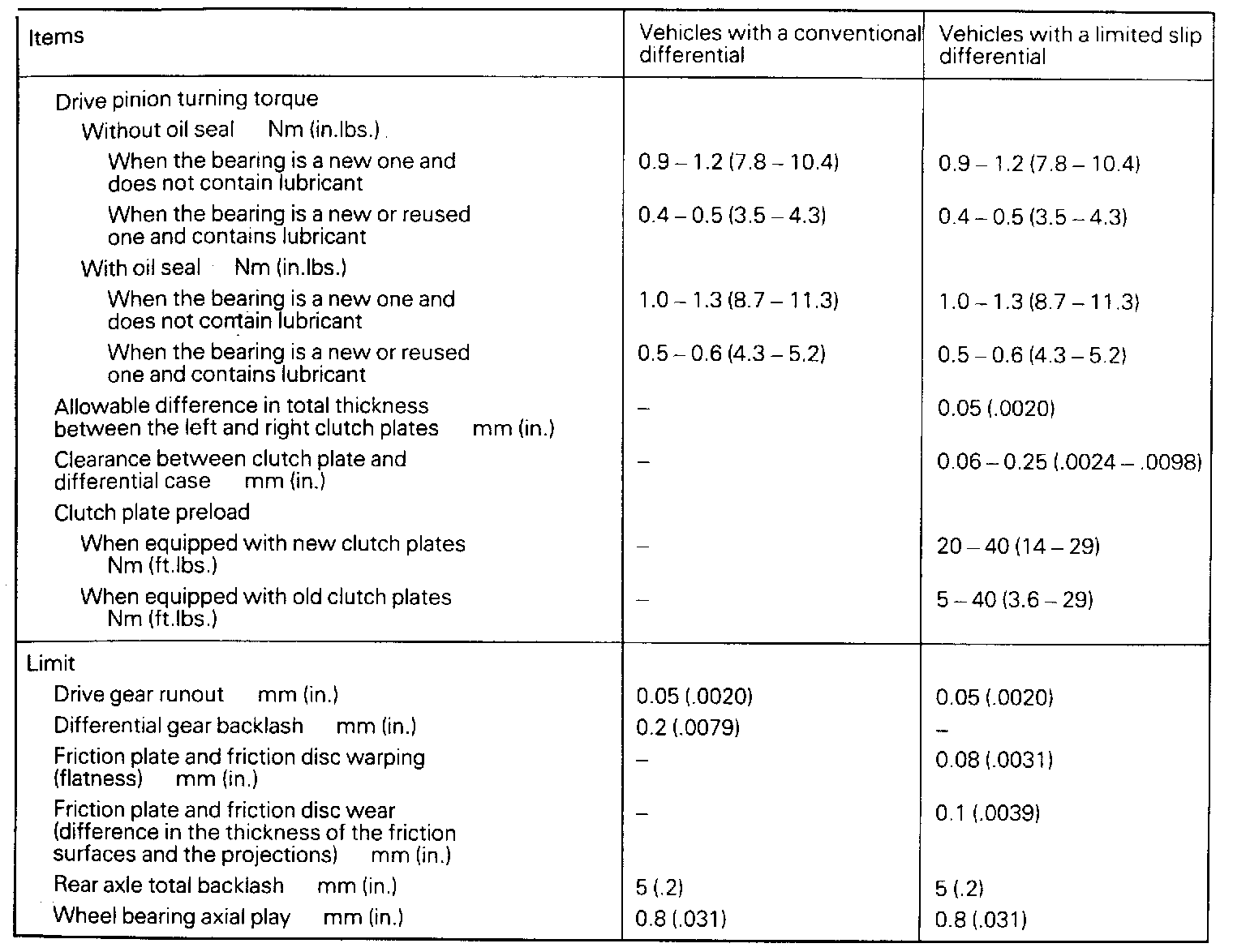

General Specifications:

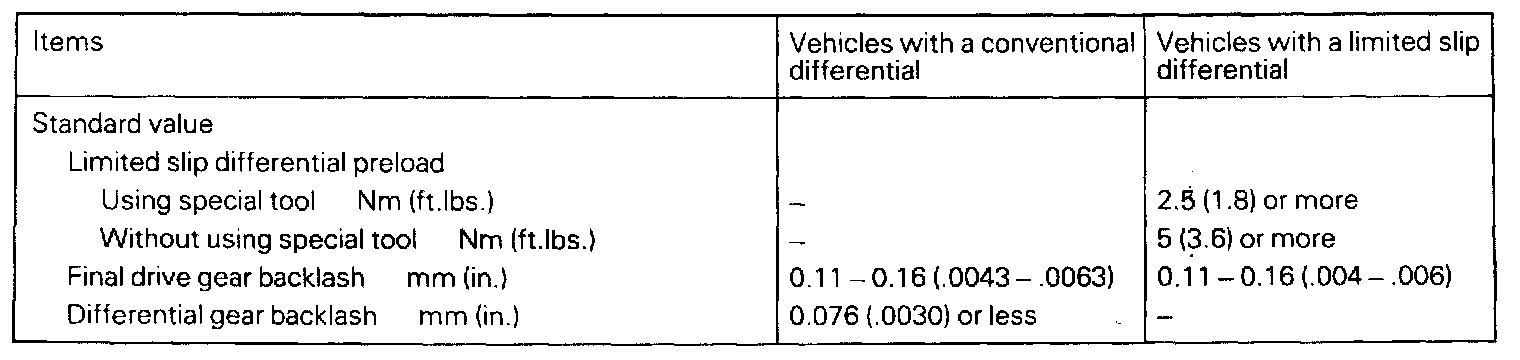

Service Specifications:




Continued:

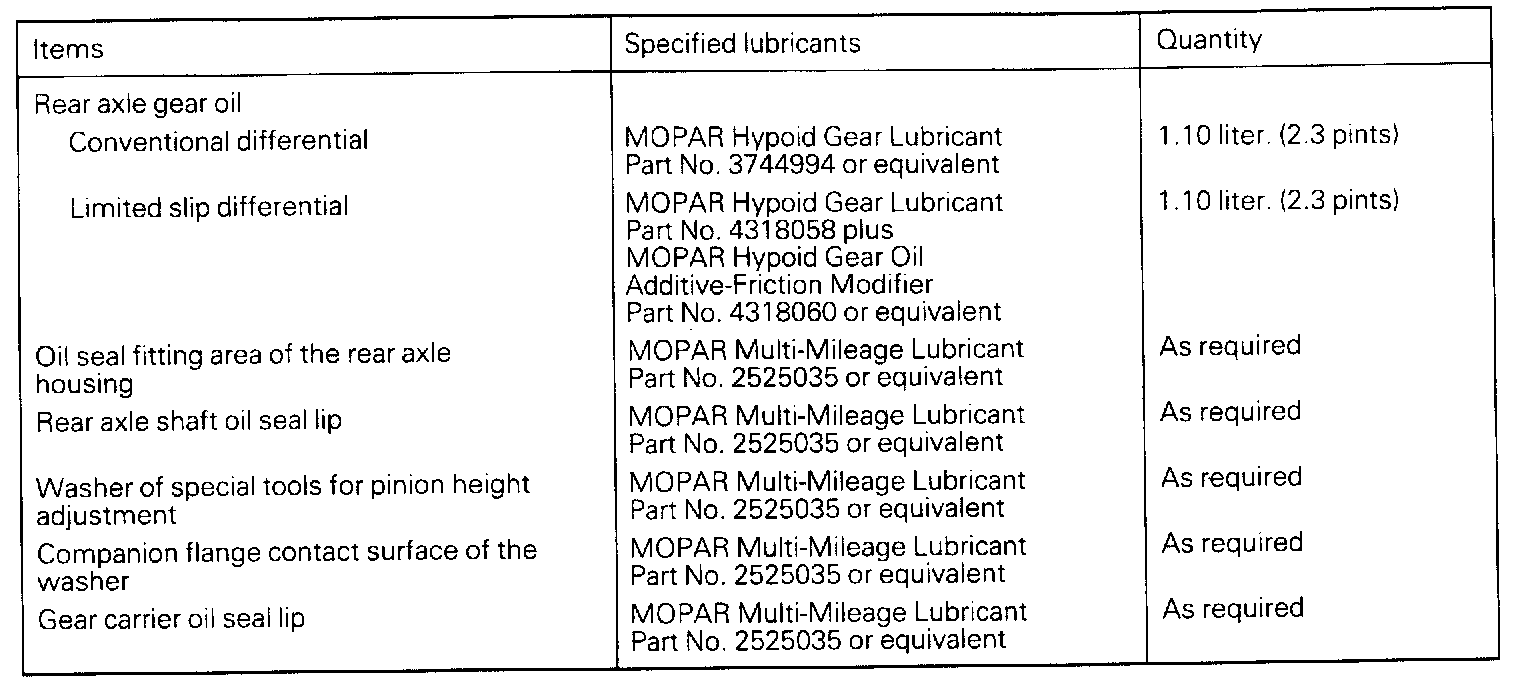

Lubricants:
