Front Seat Assembly

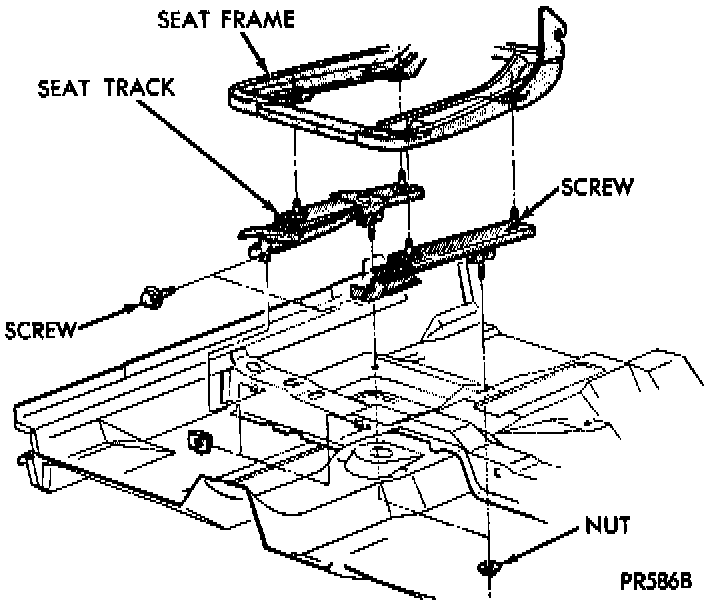

Front Seat Mounting:





1. Remove seat track mounting nuts from under the vehicle.
2. Remove seat mounting bolts from the front doorpan area on the inside of the vehicle.
3. Remove seat assembly.
4. Reverse this procedure to install.
