Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram

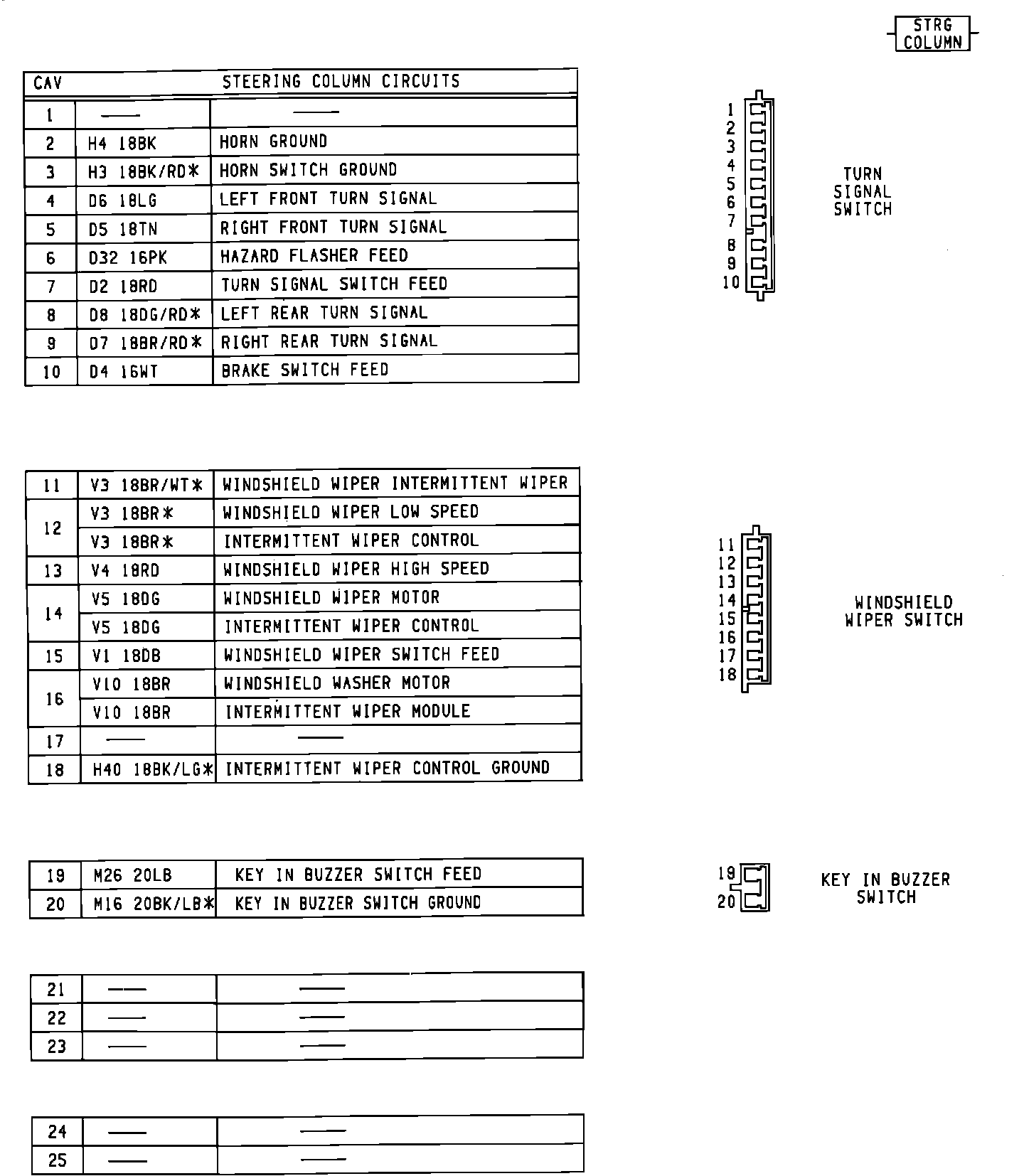

Steering Column To Instrument Panel Wiring (25 Way Connector):
