Turn Signals

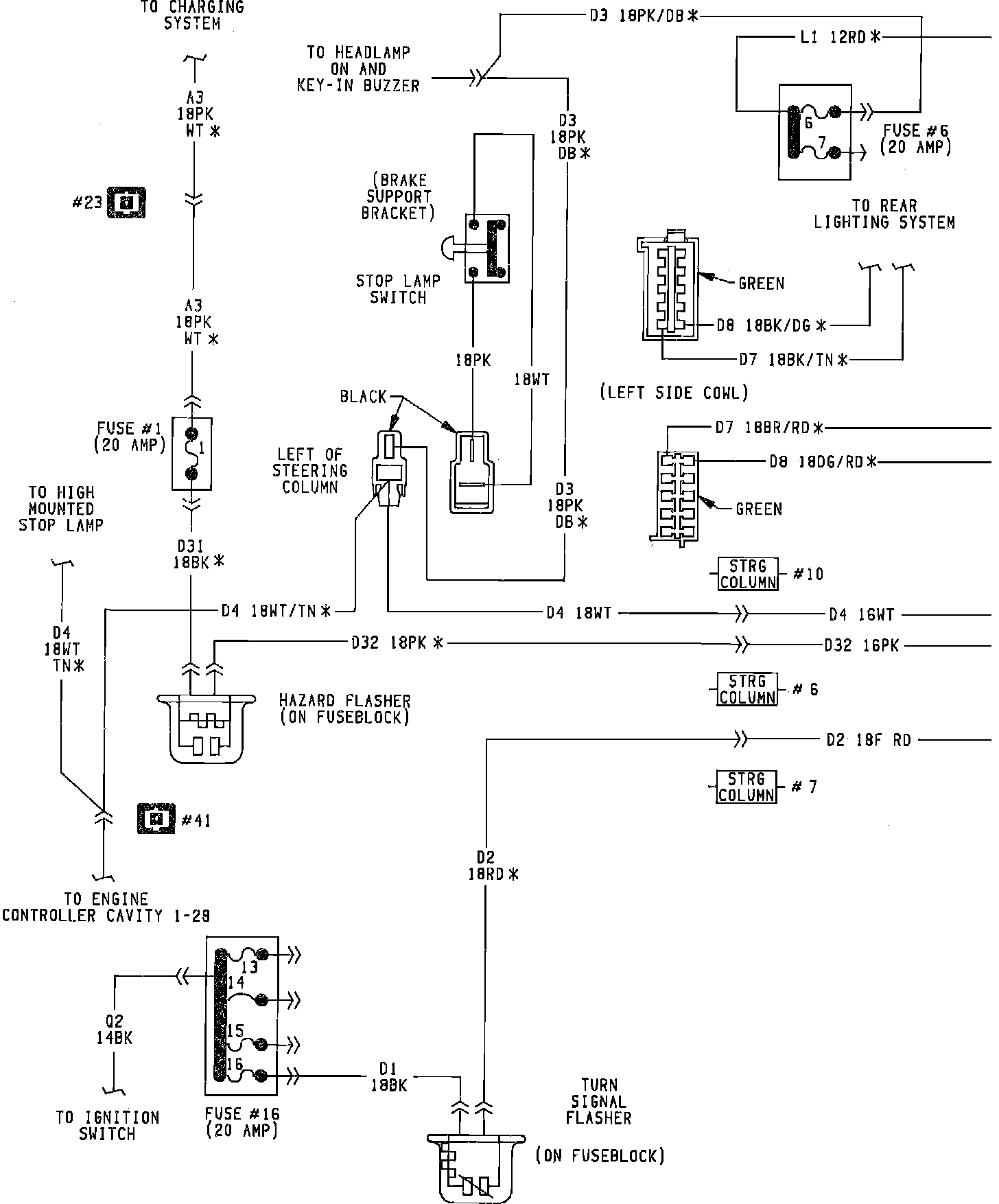

Turn Signal Switch Wiring Circuit - Part 1:



Turn Signal Switch Wiring Circuit - Part 2:
