Home >> Plymouth >> 1990 >> Horizon L4-135 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Part 1 of 2

Part 1 of 2

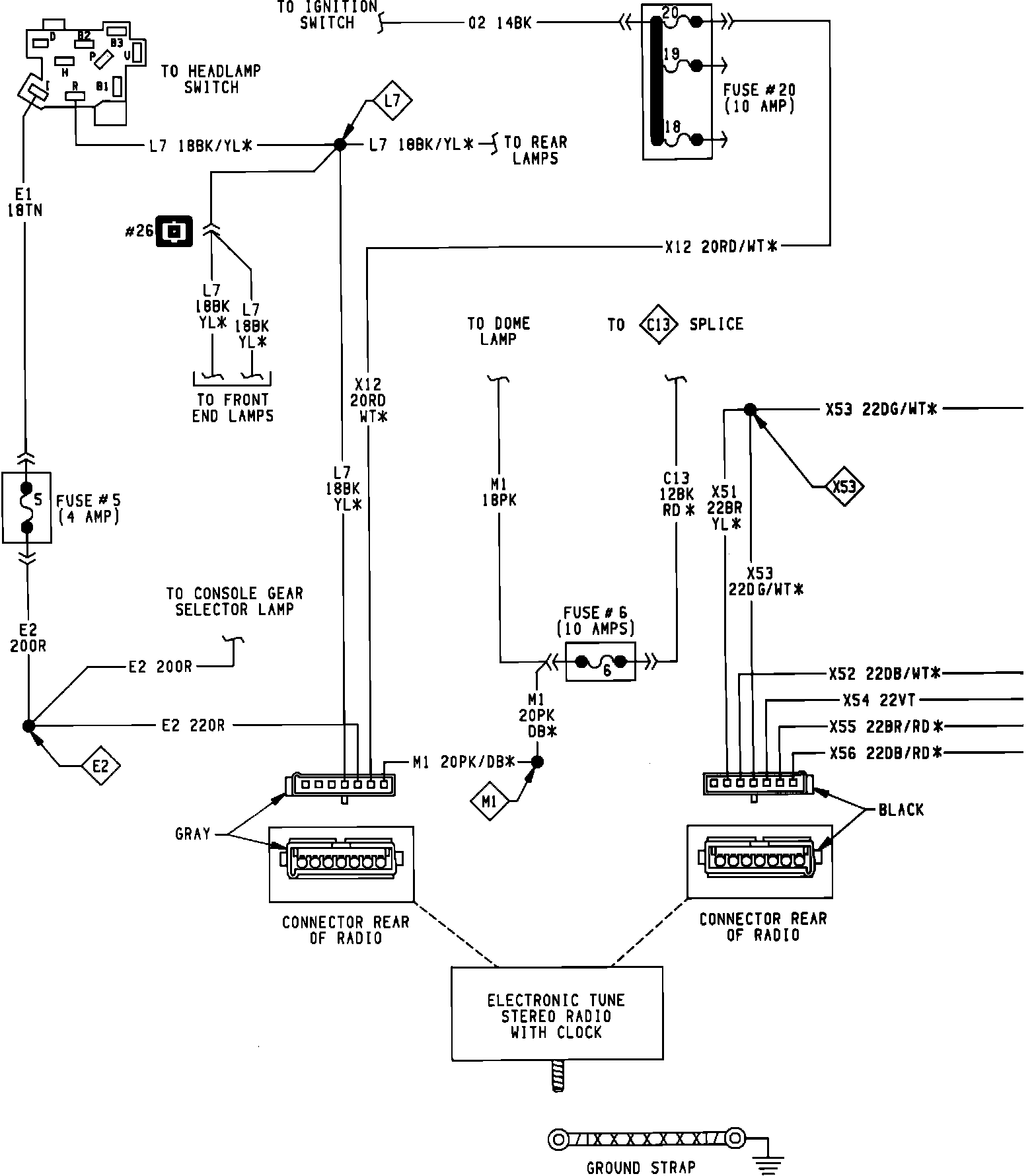

Electronically Tuned Radio & Speaker:
