Heating and Air Conditioning
>>
System Diagram
System Diagram

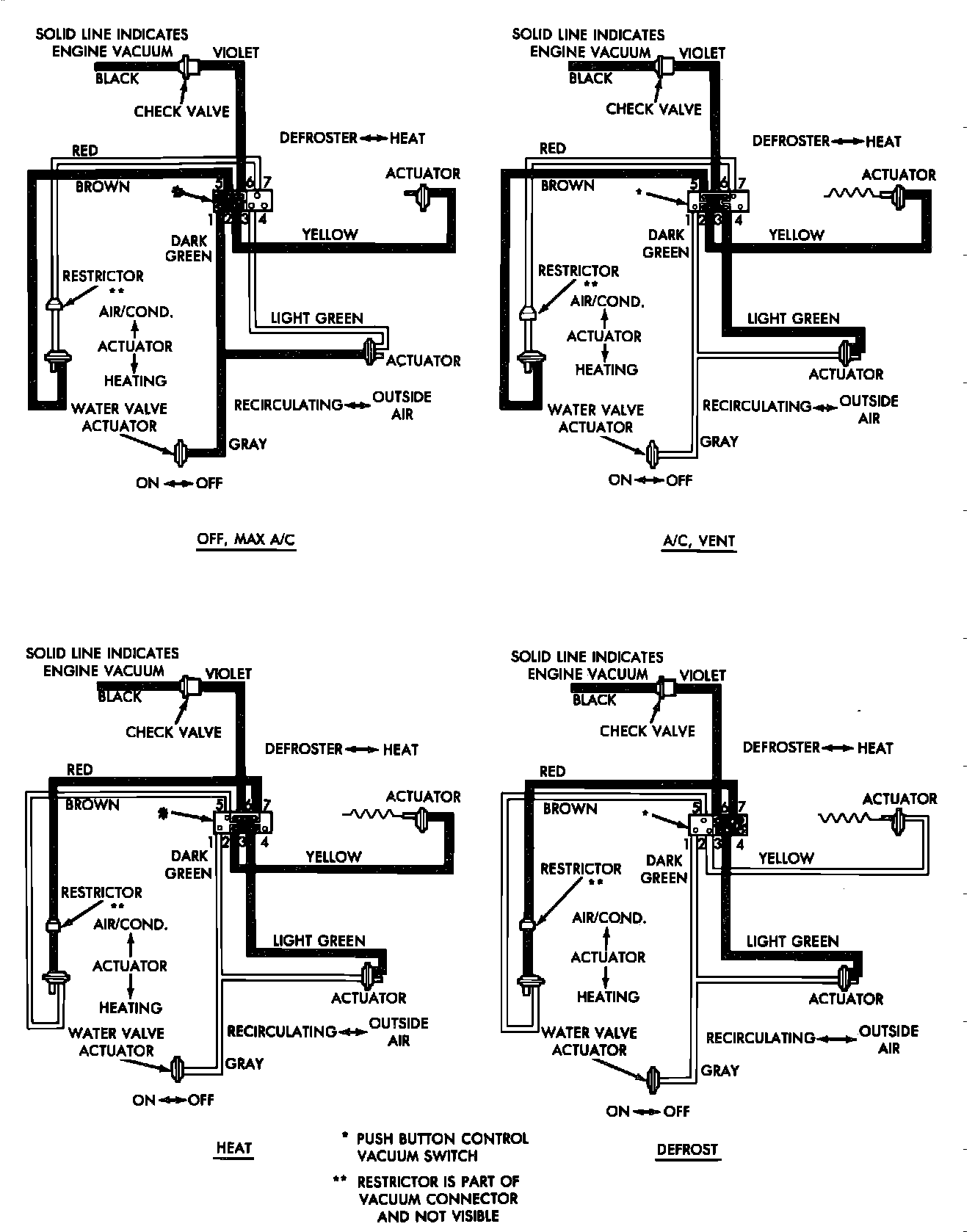

Air Conditioning & Heater Vacuum Hose Routing. Horizon & Omni:
