Home >> Plymouth >> 1990 >> Horizon L4-135 2.2L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lighting

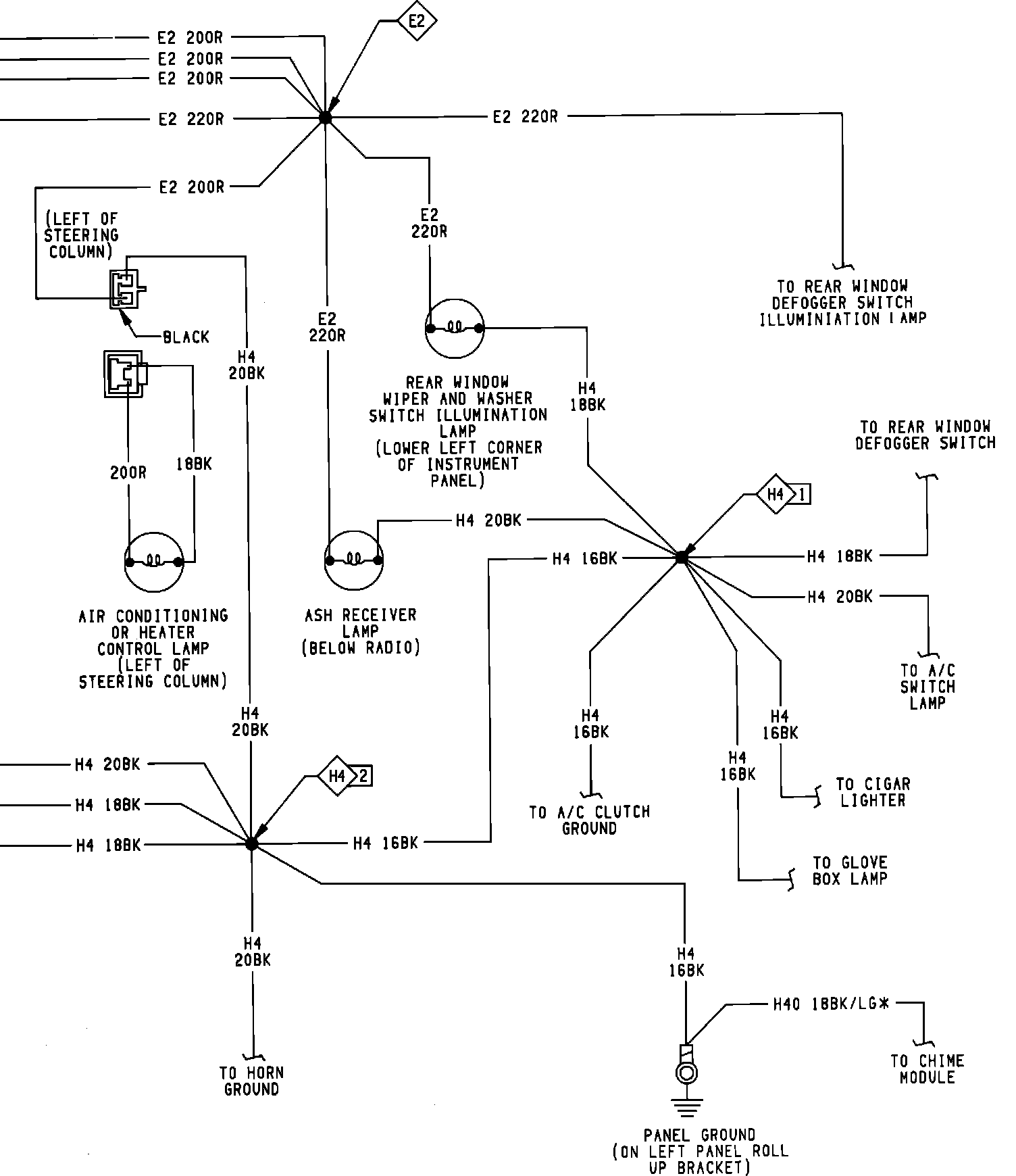

Interior Lighting

Controlled Interior Lighting:



Controlled Interior Lighting:
