Home
>>
Plymouth
>>
1990
>>
Sundance L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Driver/Vehicle Information Display
Driver/Vehicle Information Display

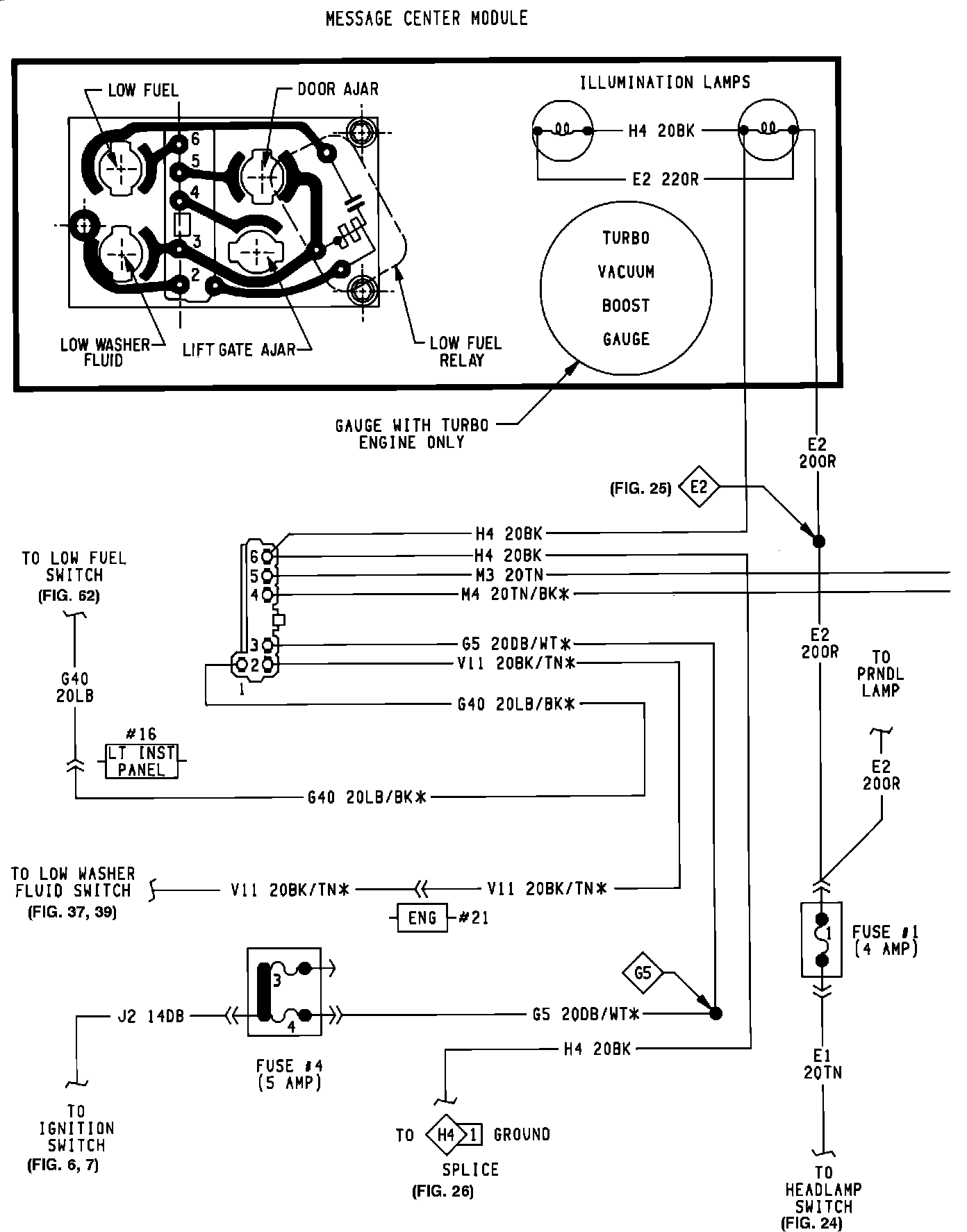

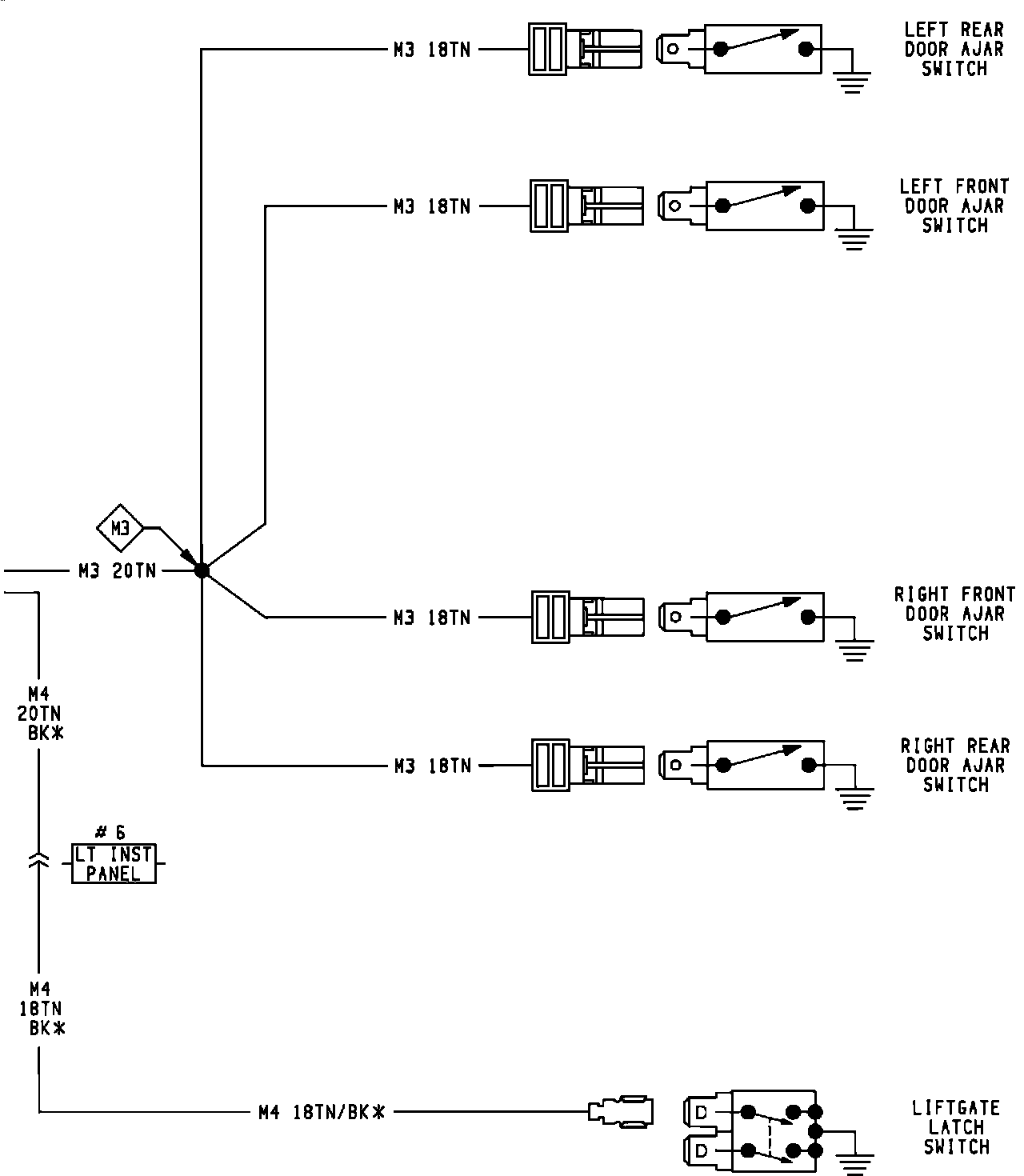

Door Ajar Switches & Message Center:
Door Ajar Switches & Message Center:
