Home >> Plymouth >> 1990 >> Sundance L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Less Tilt

Less Tilt

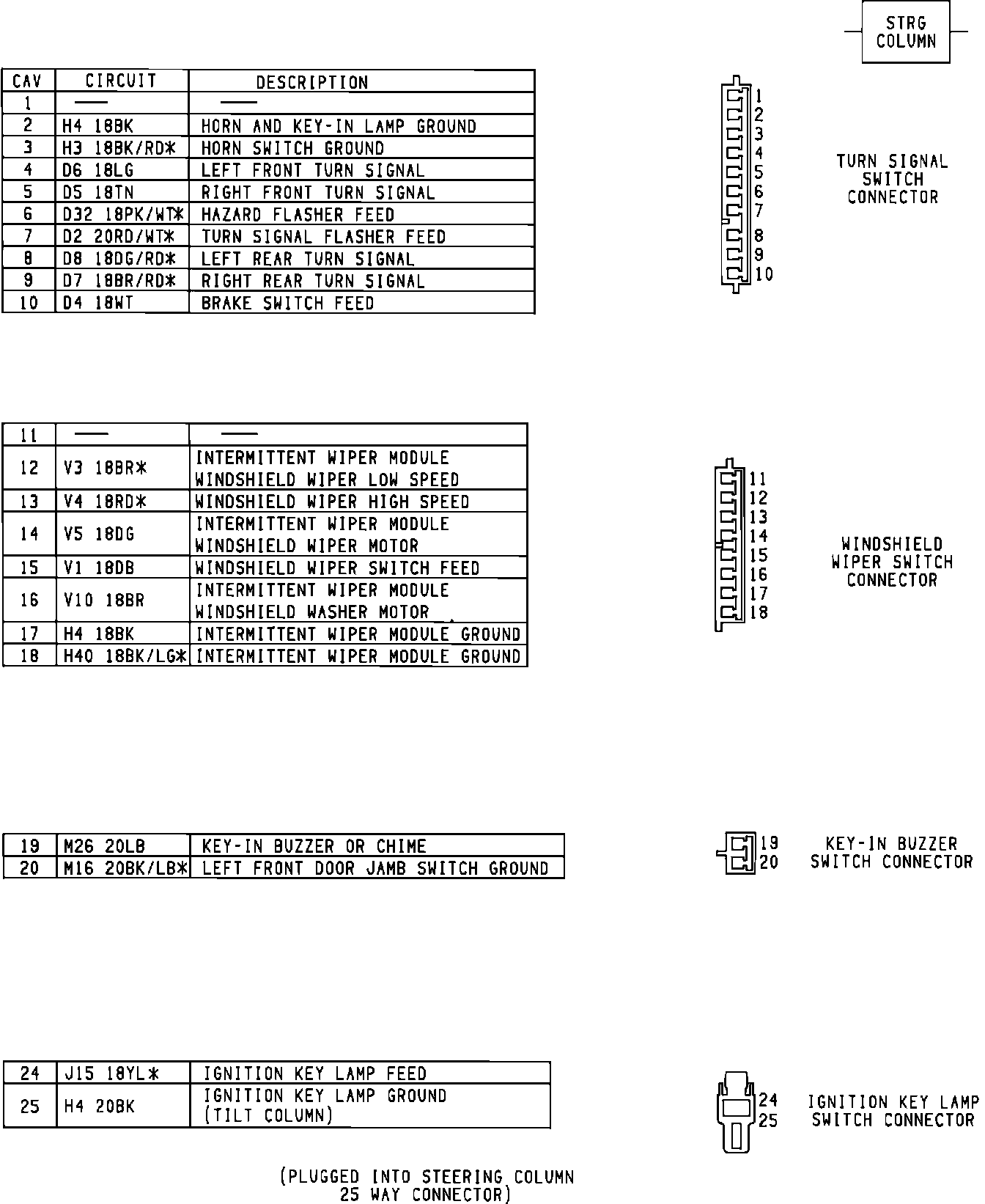

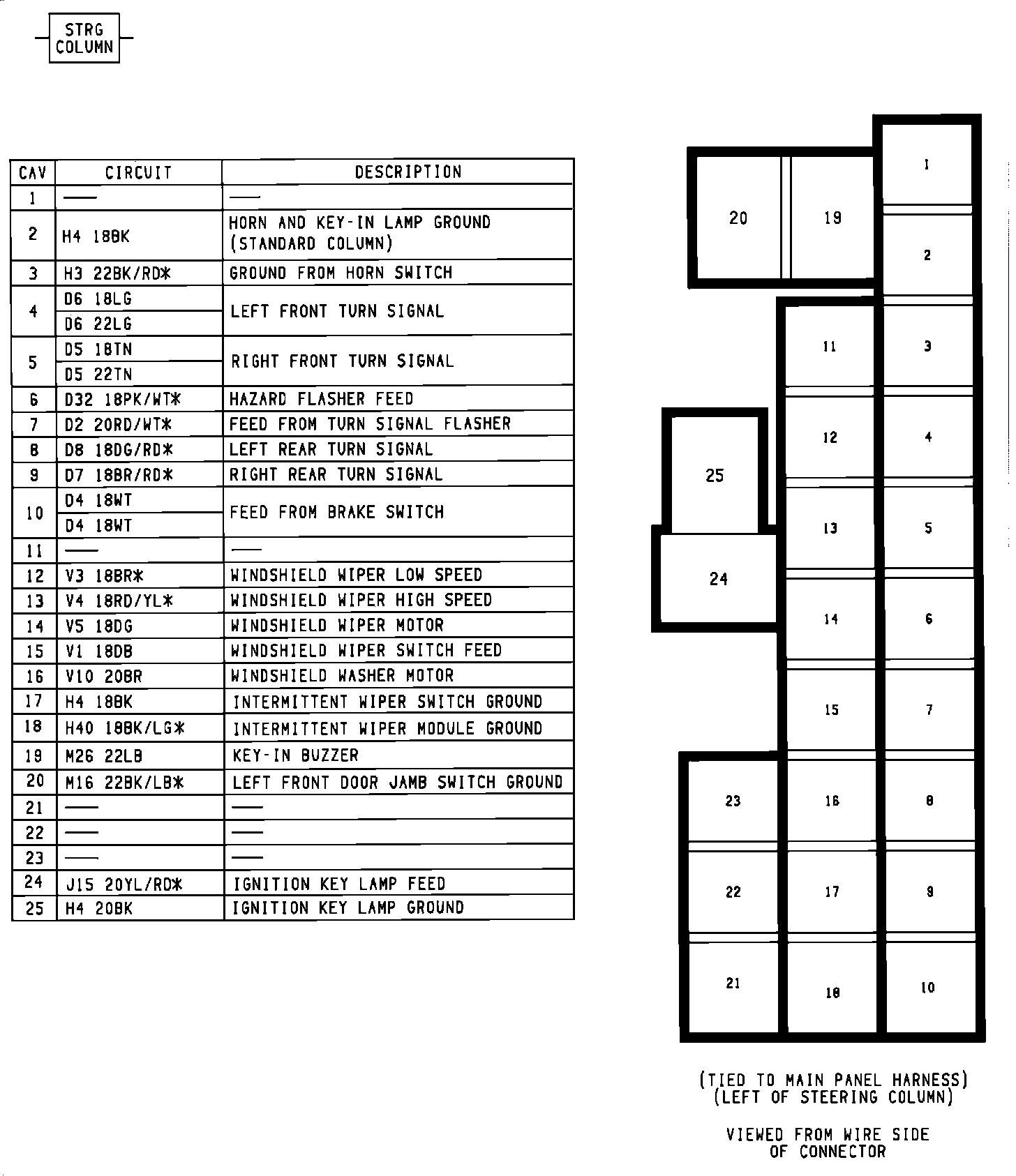

Steering Column Switch To Panel Connector - Less Tilt:



Steering Column Switch To Panel Connector - Less Tilt:
