Instrument Cluster
Instrument Cluster

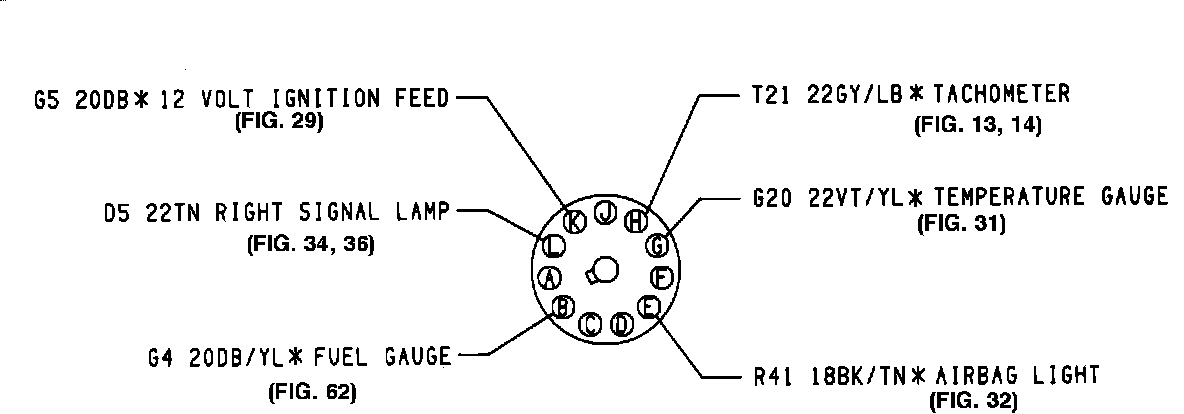

Left Printed Circuit Board Connector:

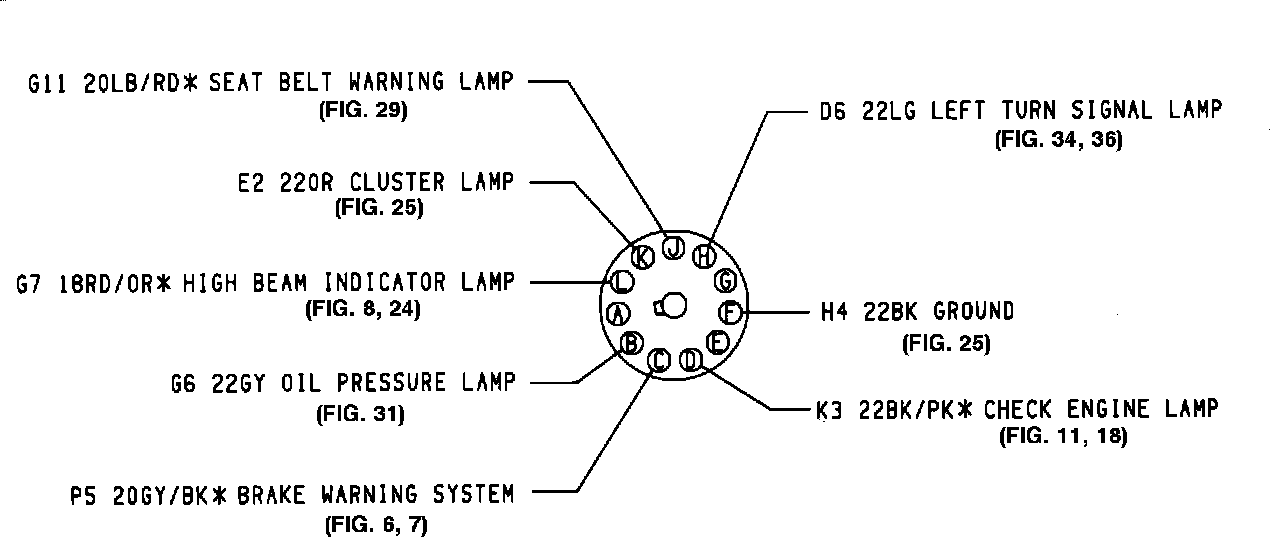

Right Printed Circuit Board Connector:
