Front End Lighting

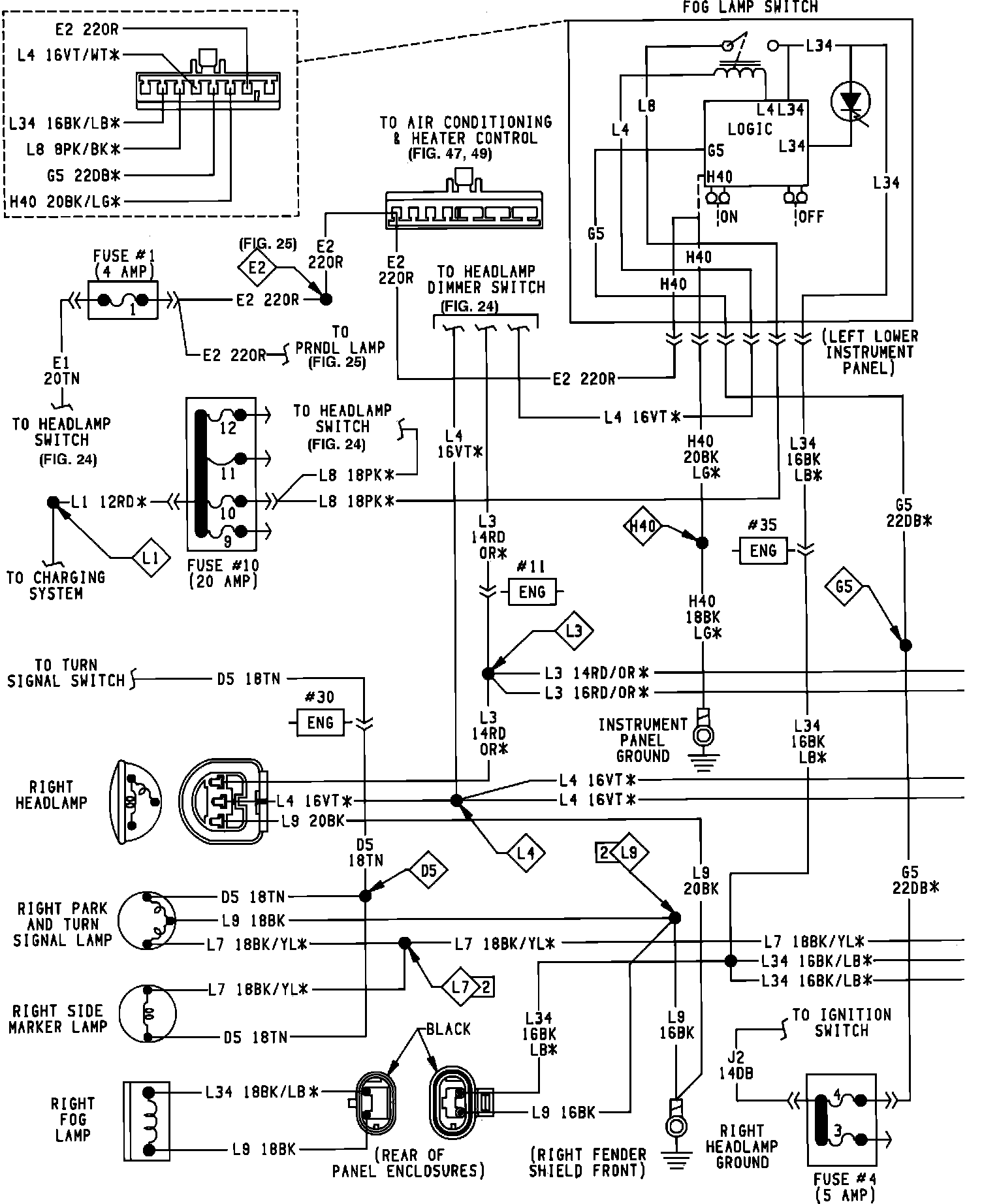

Airbag Sensors & Front End Lighting:

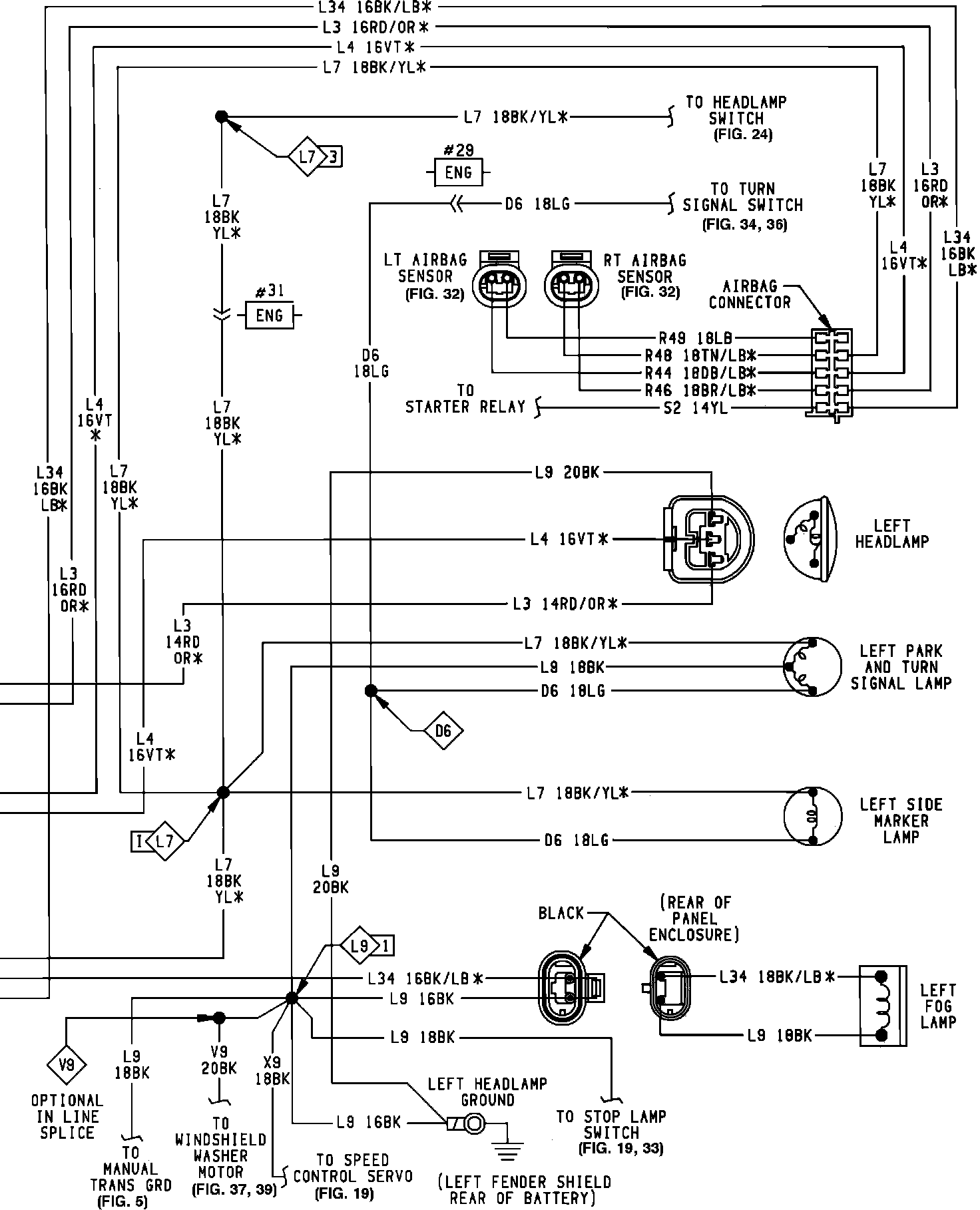

Airbag Sensors & Front End Lighting:

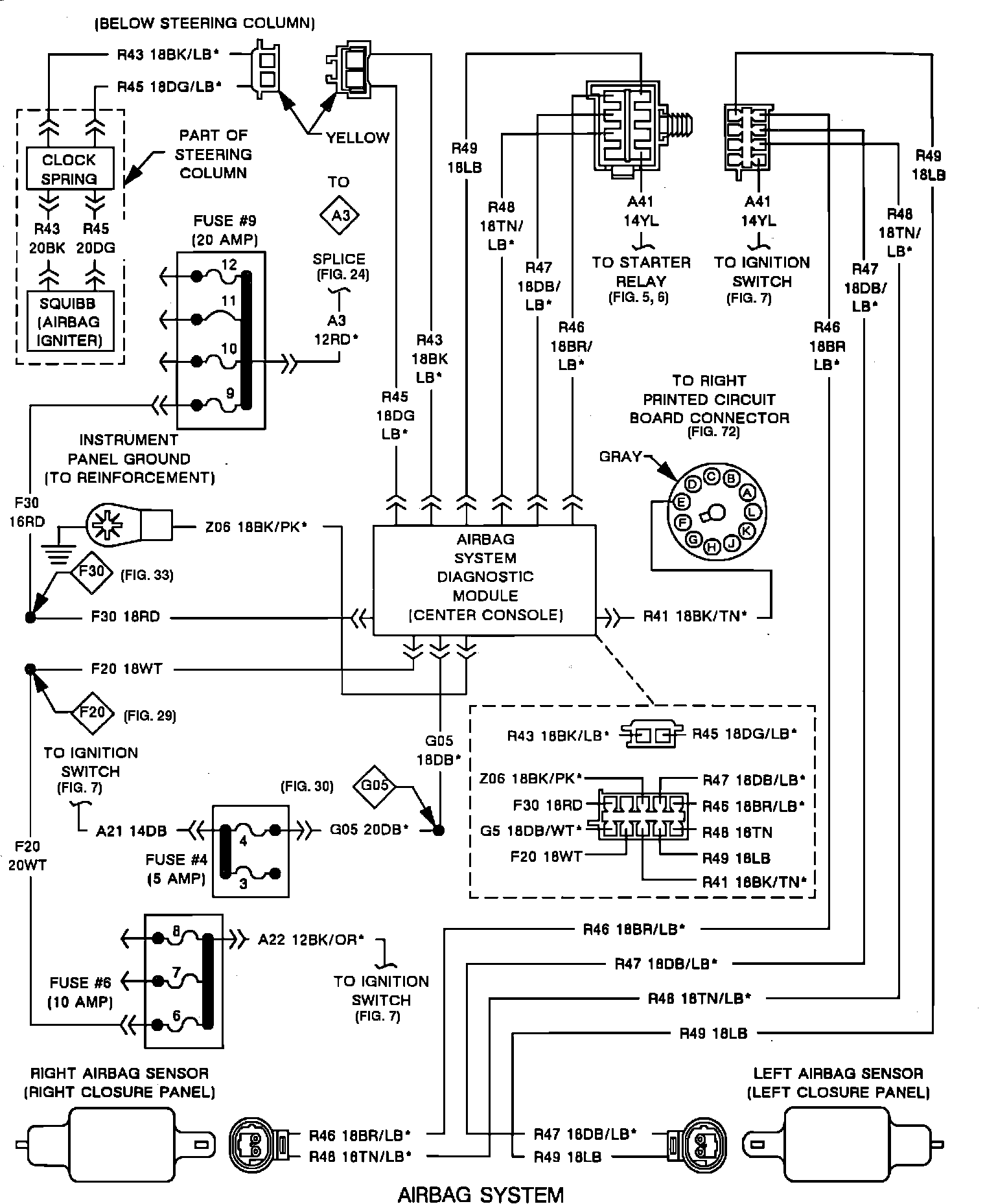

Airbag System:

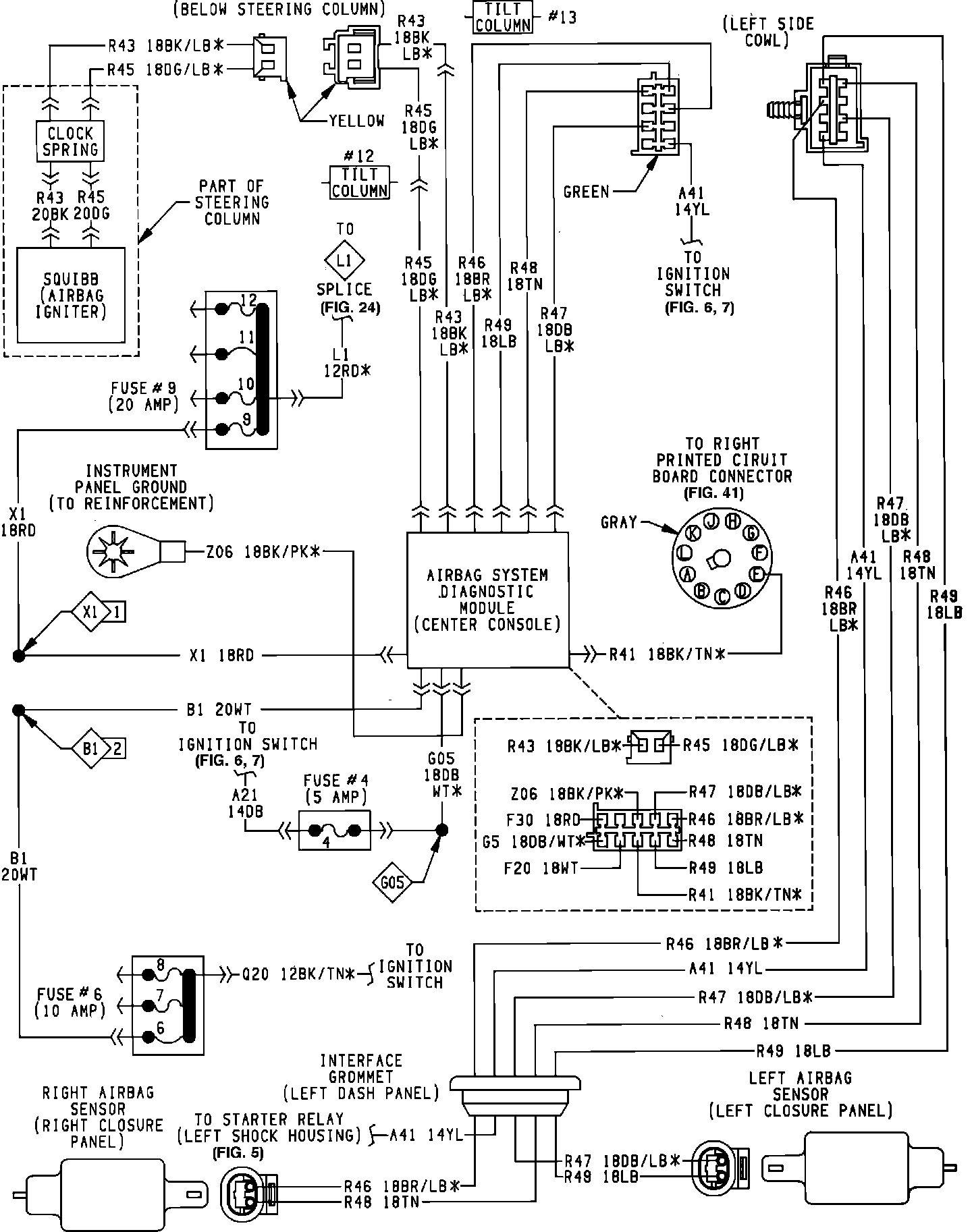

Airbag System:
