Sundance L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Diagrams
>>
Electrical Diagrams
>>
With Tilt Wheel
With Tilt Wheel

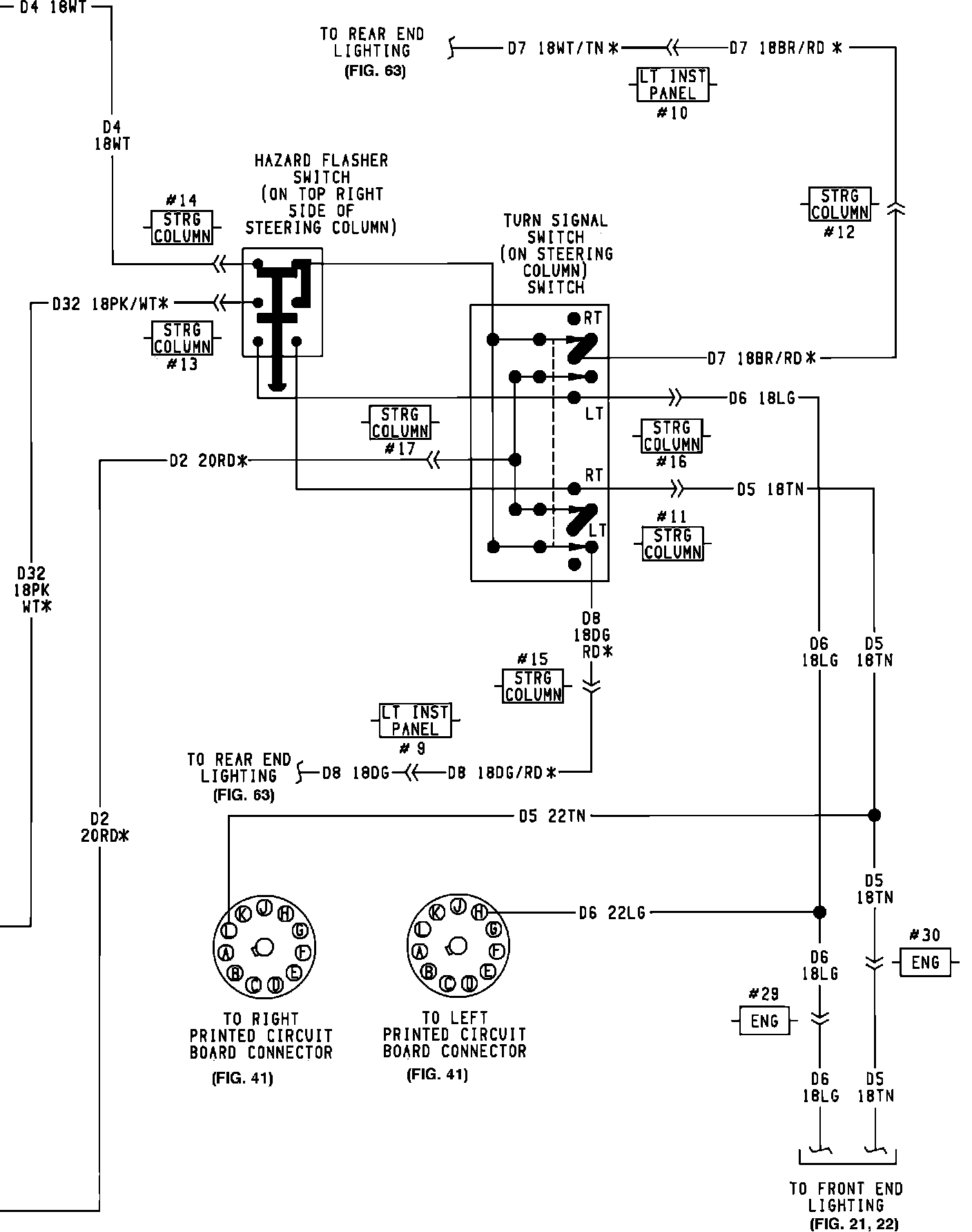

Hazard & Turn Flasher (With Tilt):
Hazard & Turn Flasher (With Tilt):
