Sundance L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

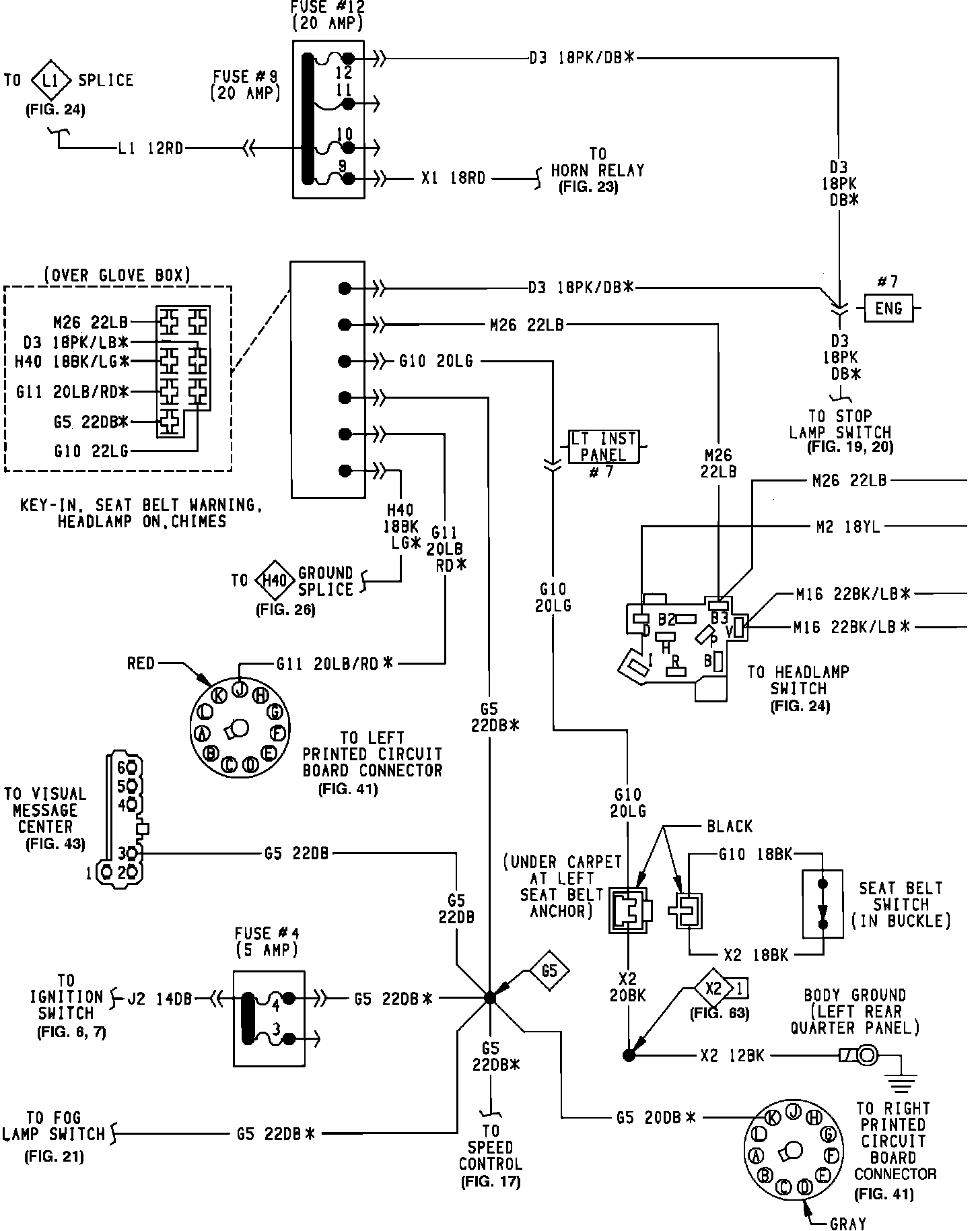

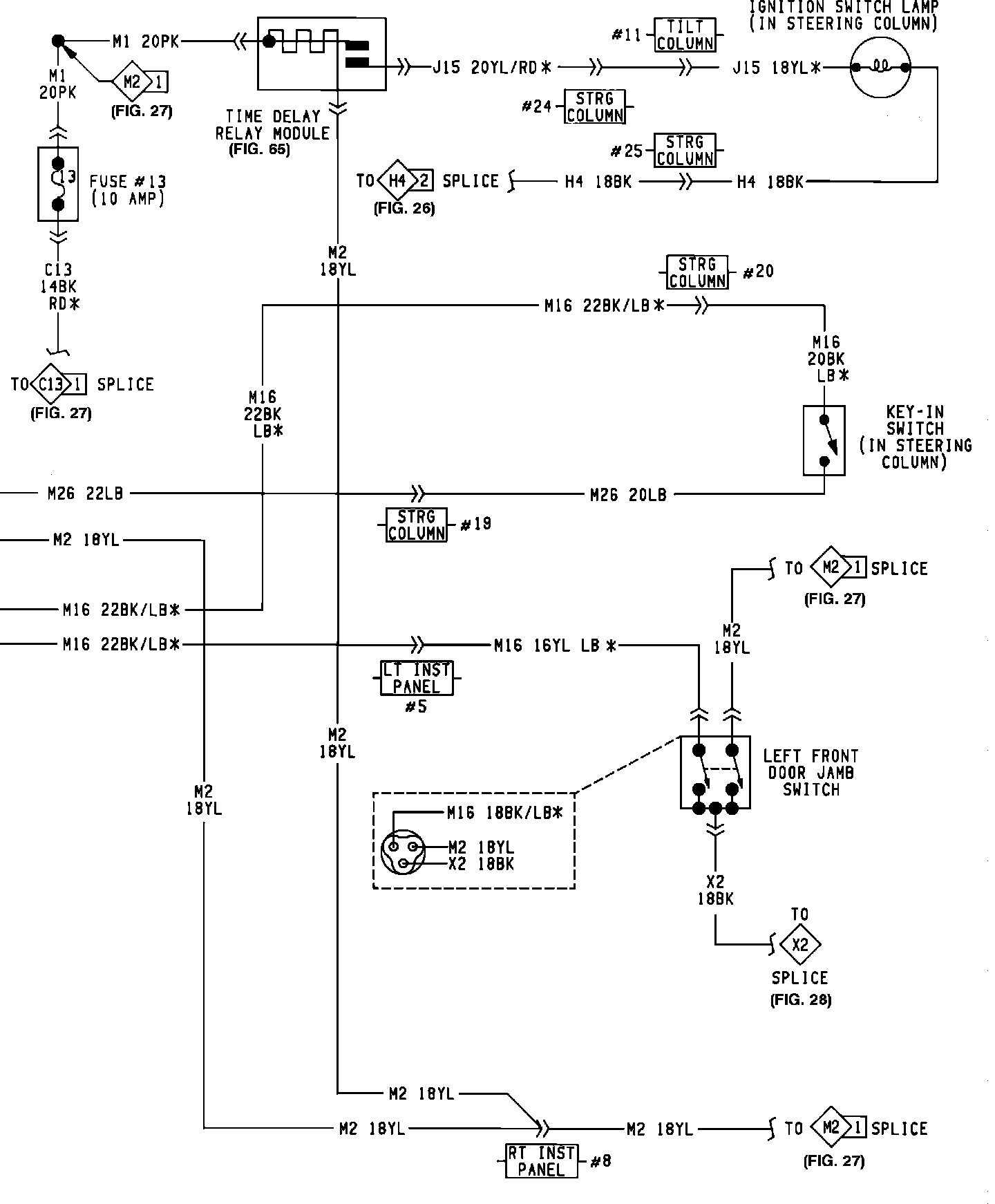

Courtesy Lamps & Seat Belt Warning System:
Courtesy Lamps & Seat Belt Warning System:
