Ignition Switch

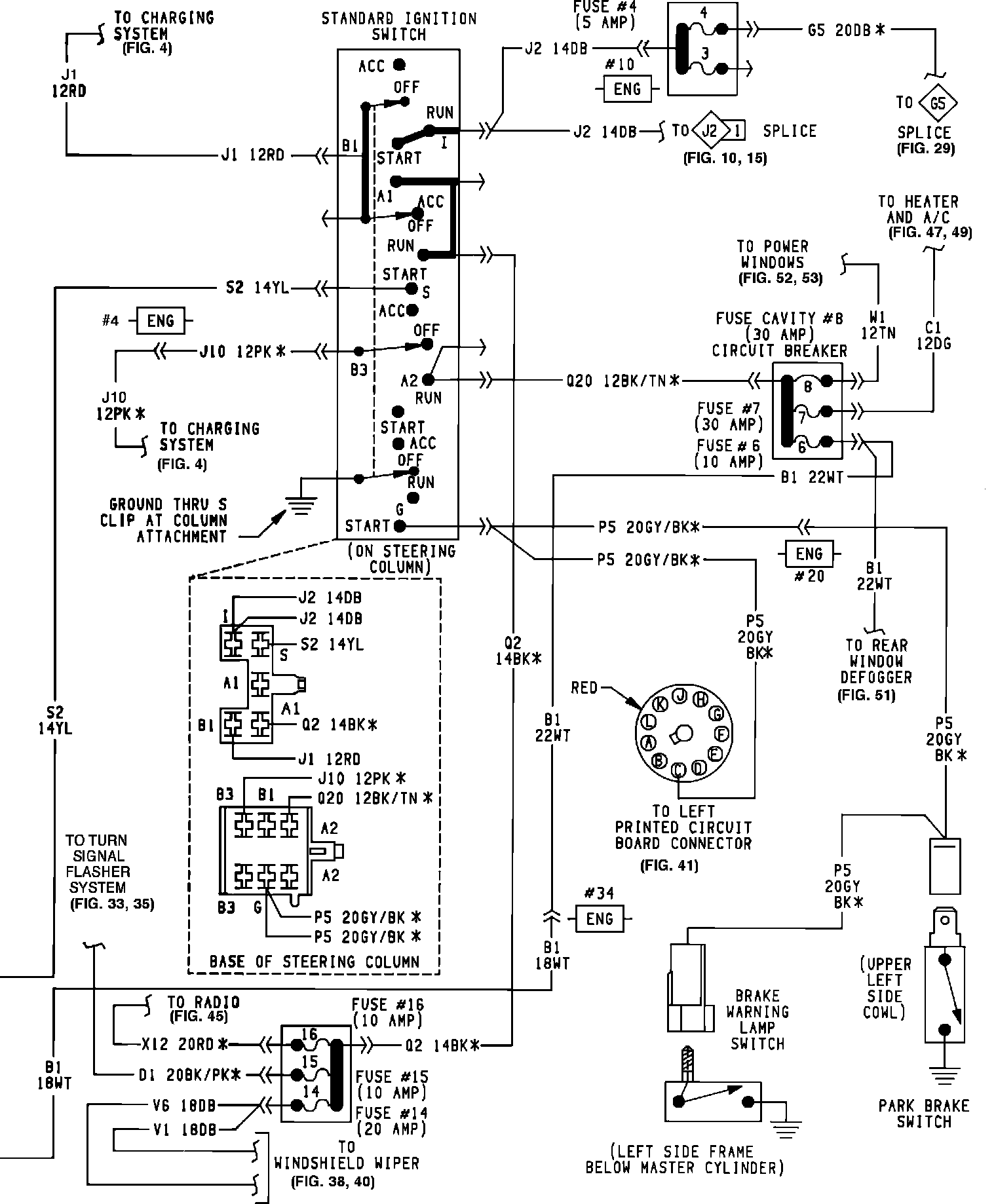

Ignition Switch & Starter System (Less Tilt):

Ignition Switch & Starter System (Less Tilt):

Ignition Switch (With Tilt):
