Wiper and Washer Systems

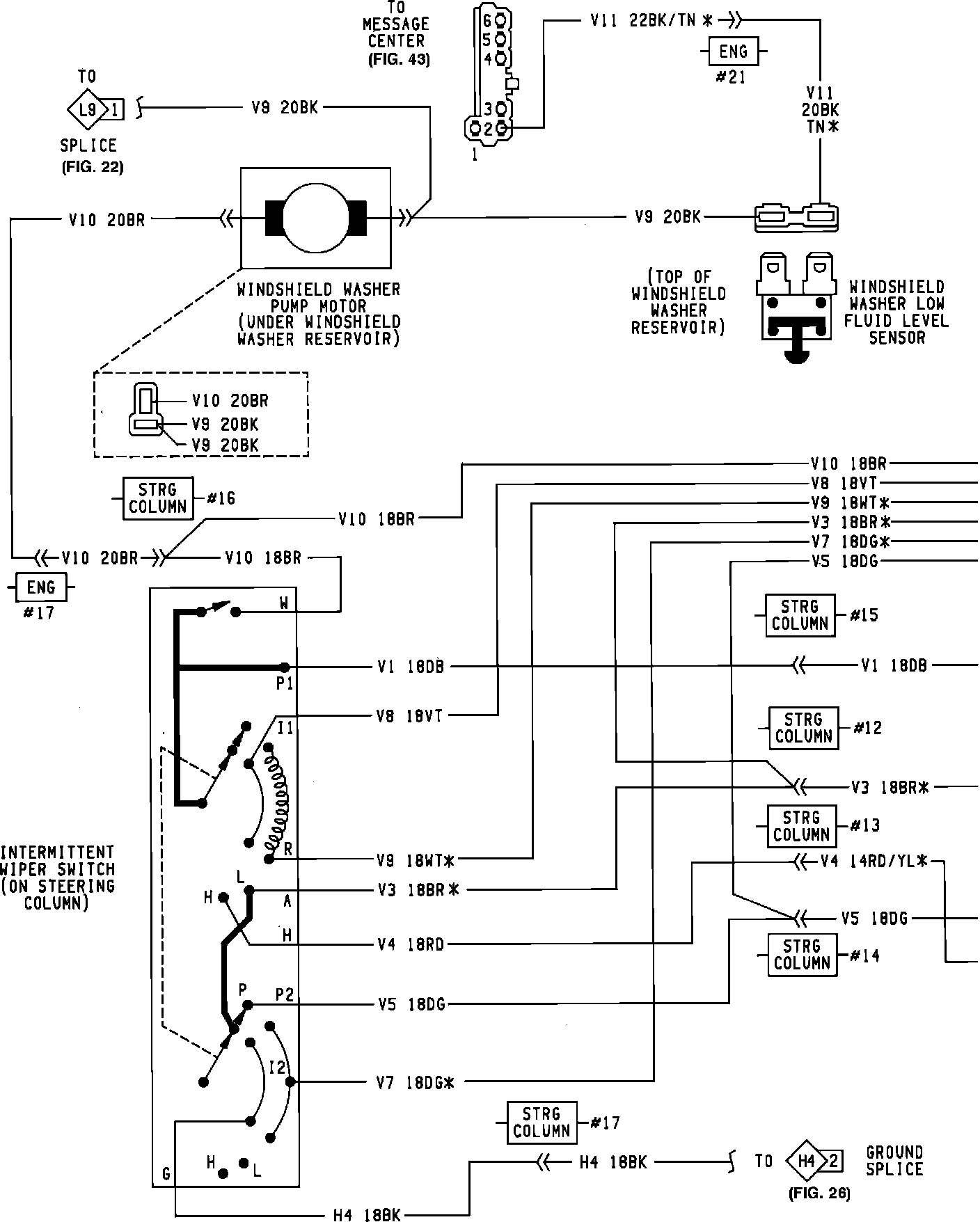

Fig. 16 Liftgate Wiper System Wiring Circuit:

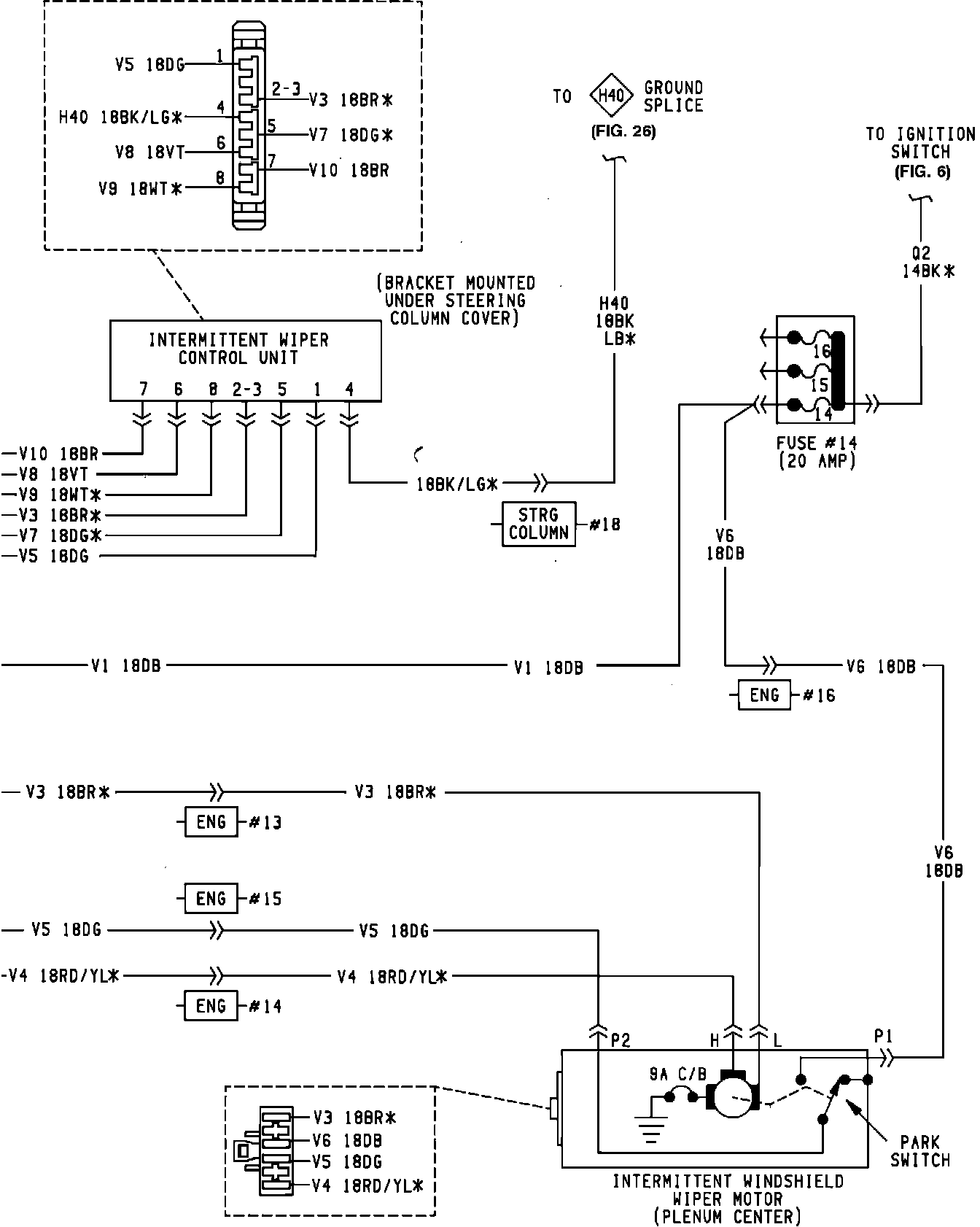

Wiper System Less Tilt:

Wiper System Less Tilt:

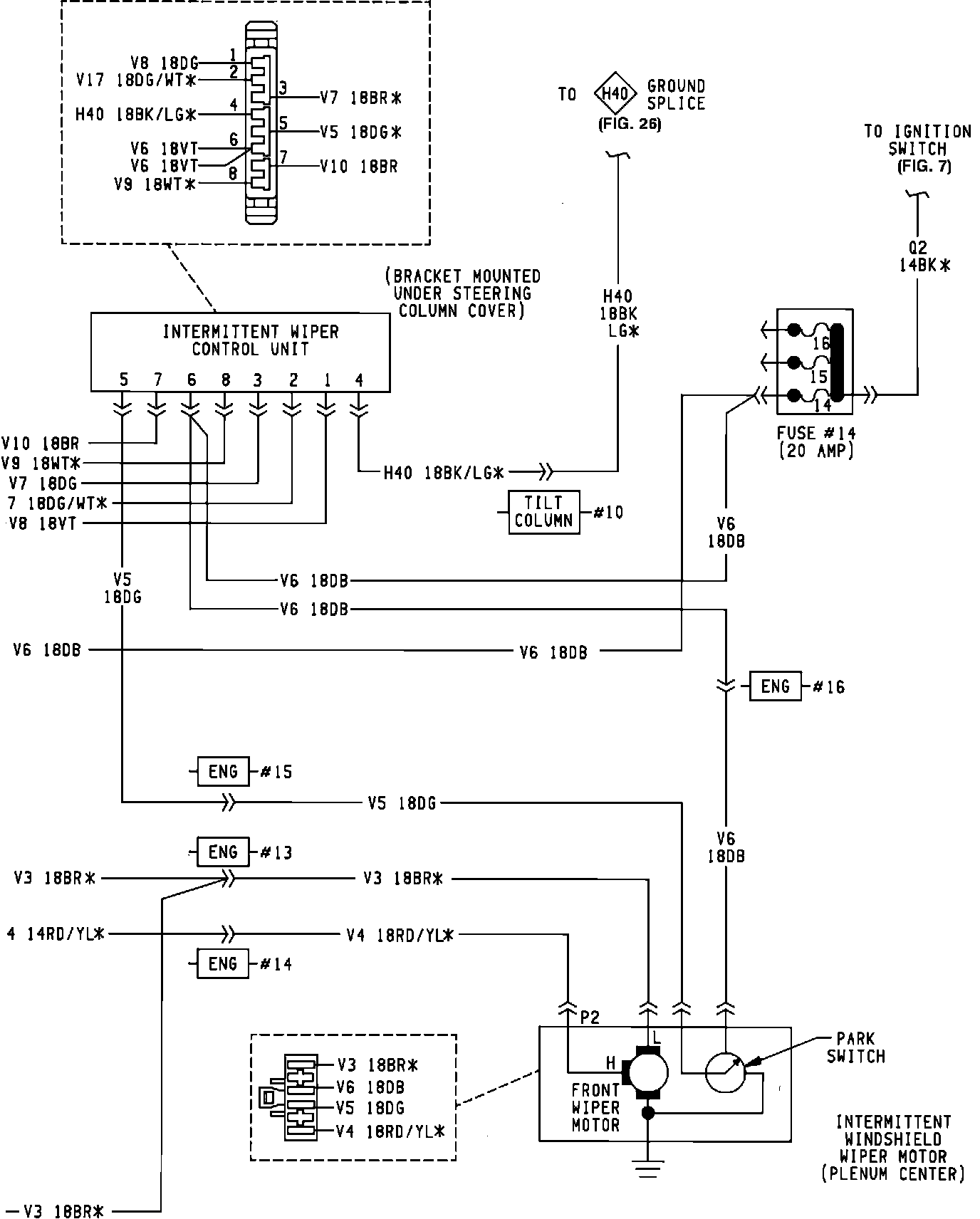

Wiper System With Tilt:

Wiper System With Tilt:
