Home >> Plymouth >> 1991 >> Acclaim V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> Radio/Stereo

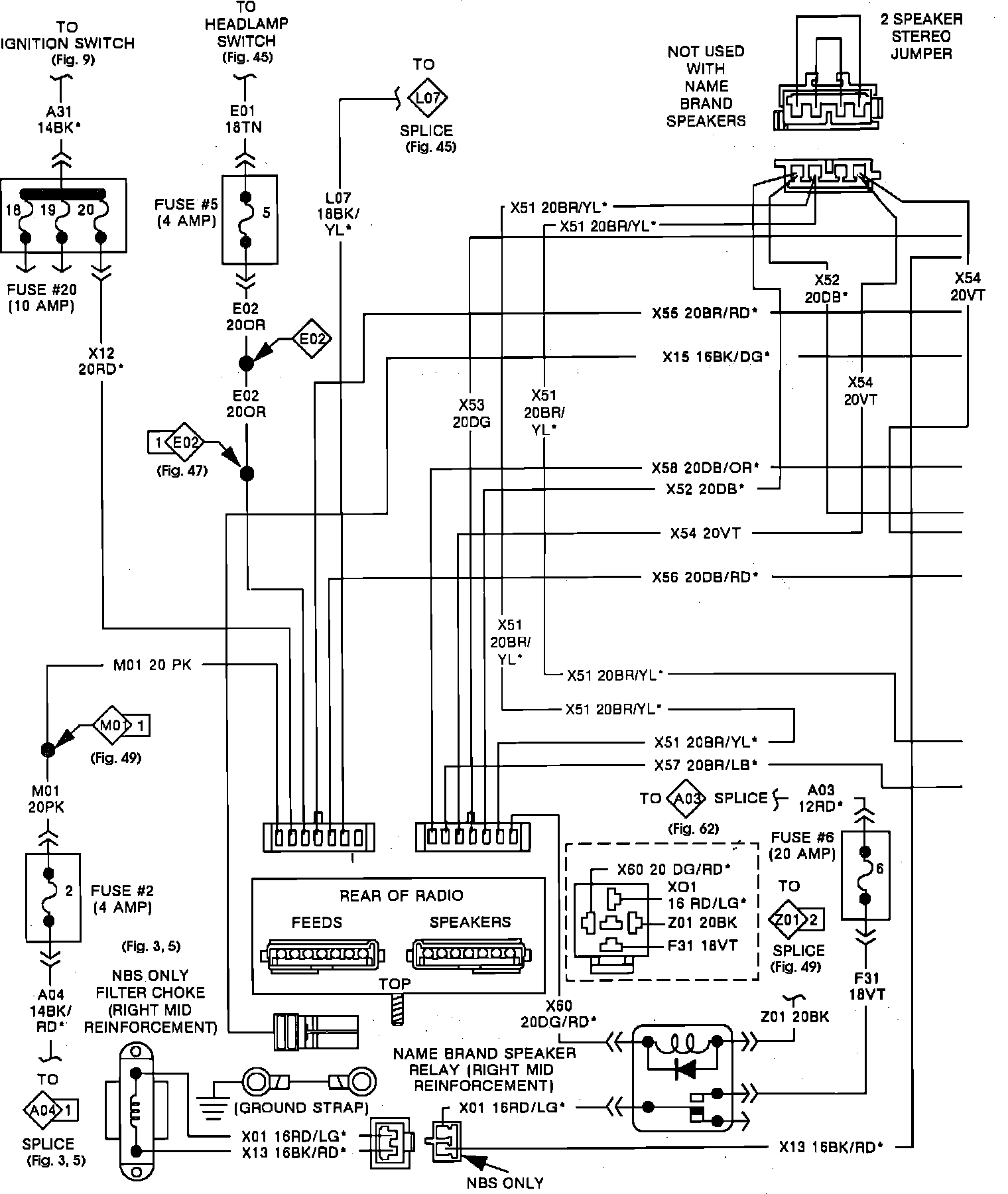

Radio/Stereo

Radio:



Speakers, Front Door & Rear:
