System Diagram

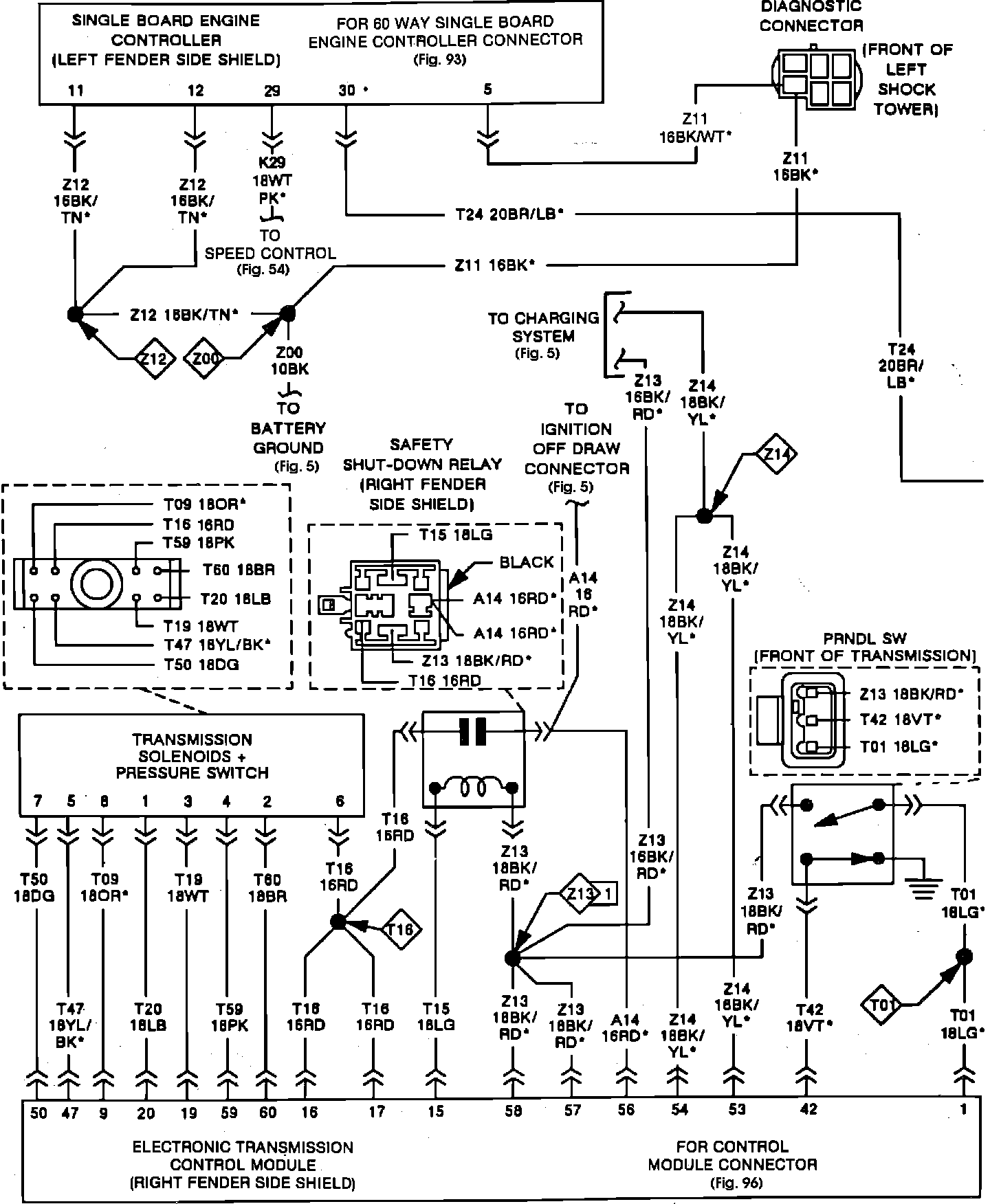

Electronic Transmission System:

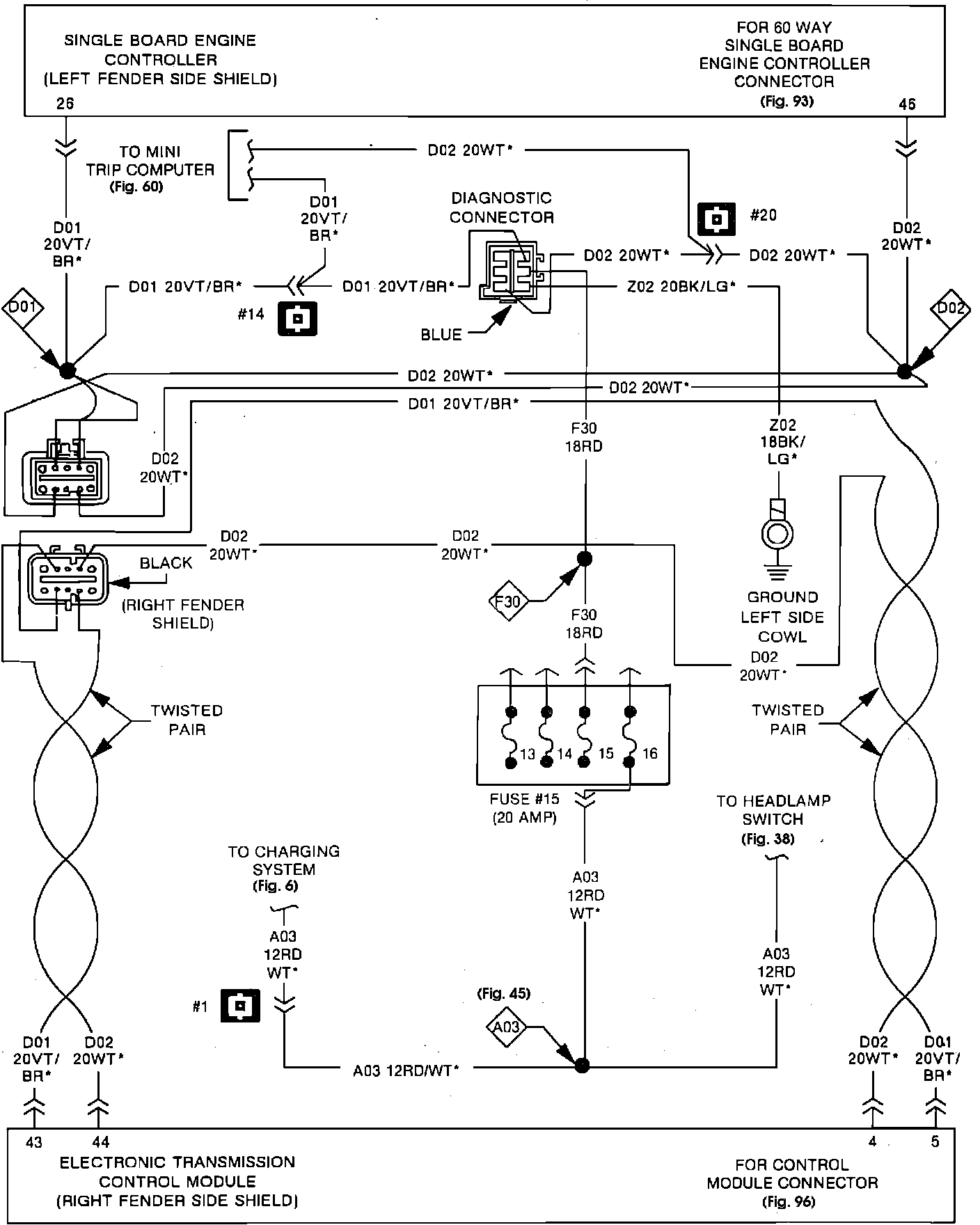

Electronic Transmission System:



Electronic Transmission System:
