Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1991
>>
Acclaim V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Brake Light Switch

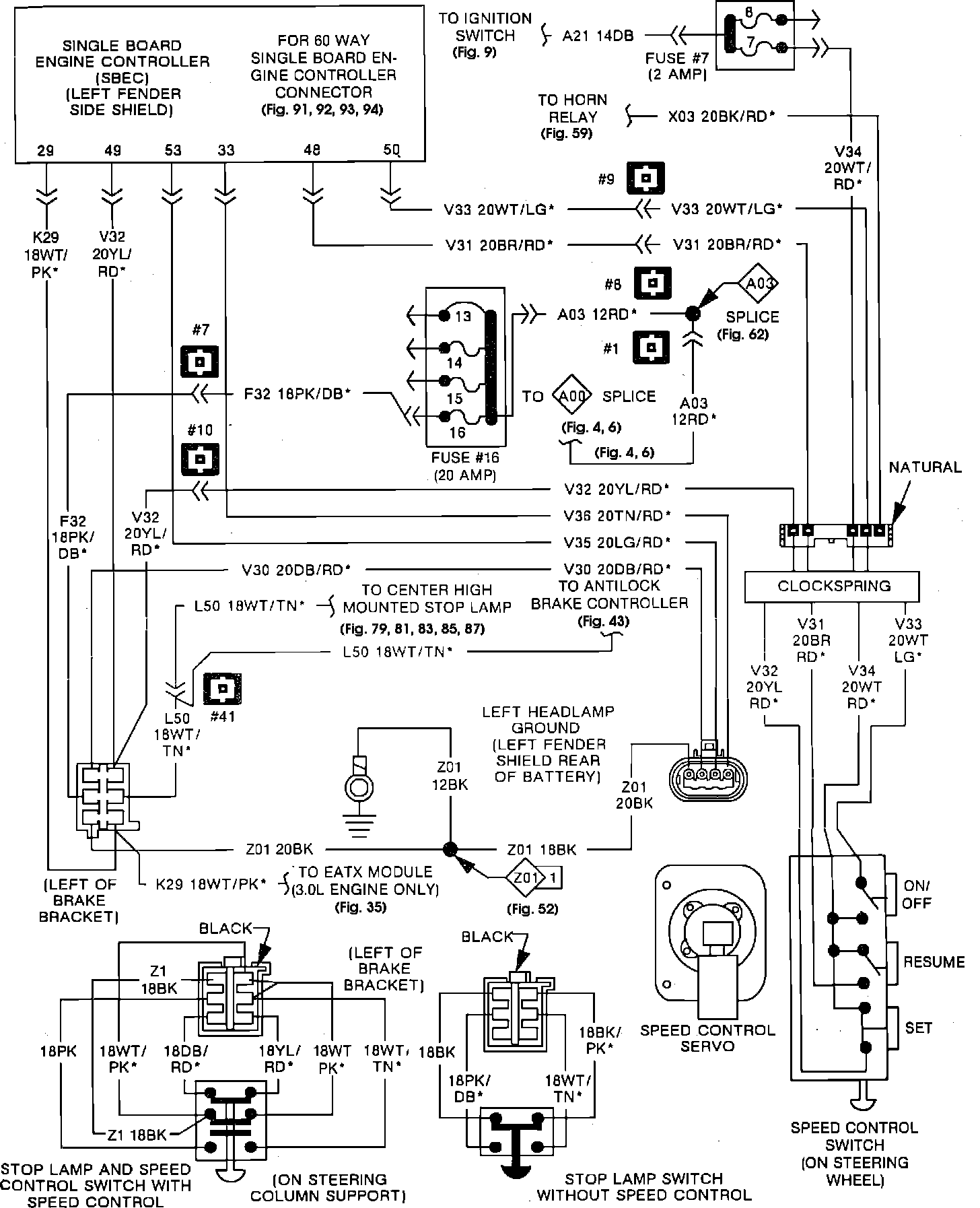

Brake Light Switch
Electronic Speed Control & Stop Lamp Switch:
