Home >> Plymouth >> 1991 >> Acclaim V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp

Courtesy Lamp

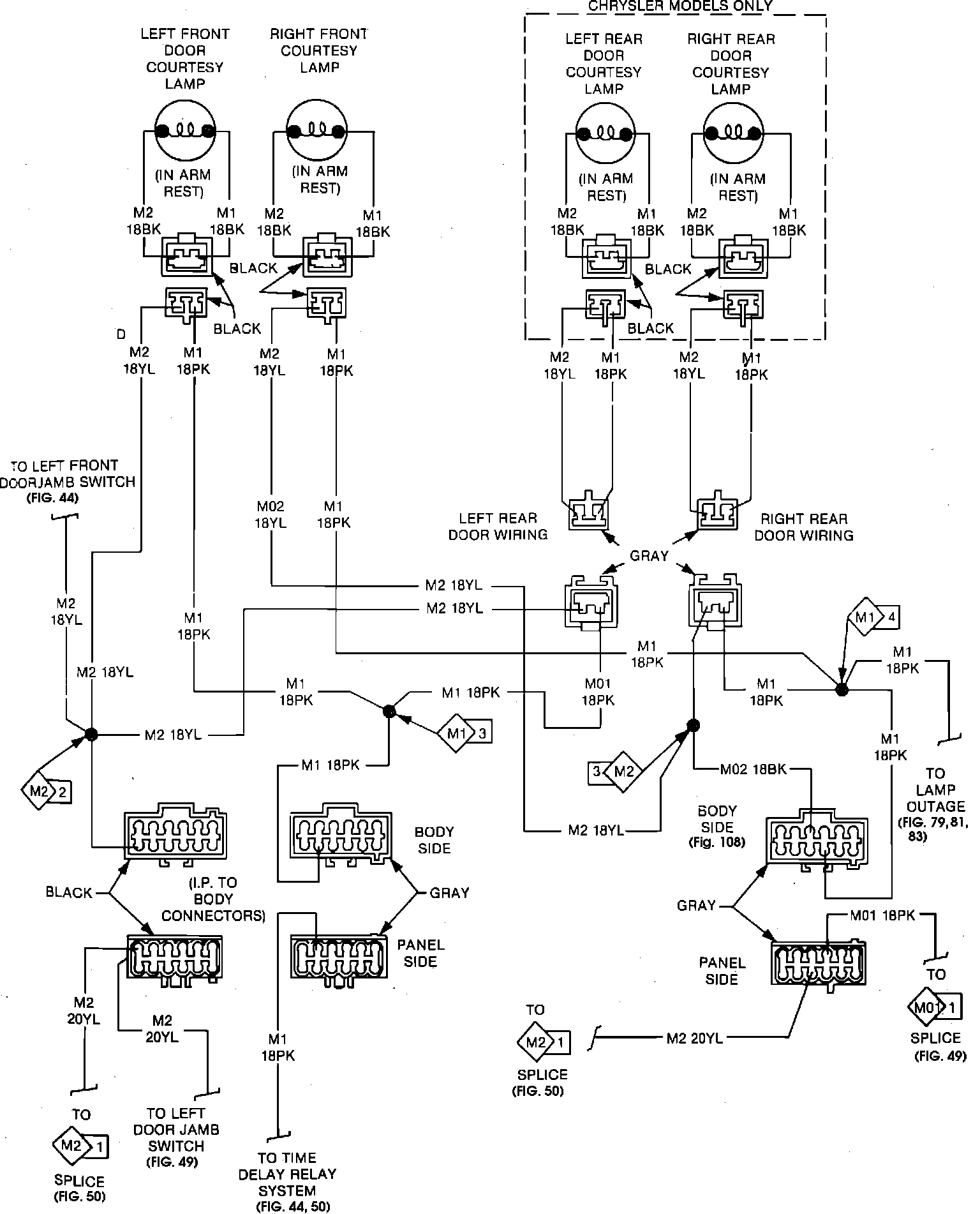

Door Courtesy Lamp:
