Timer/Control Unit, Accessory Control
Timer/Control Unit, Accessory Control

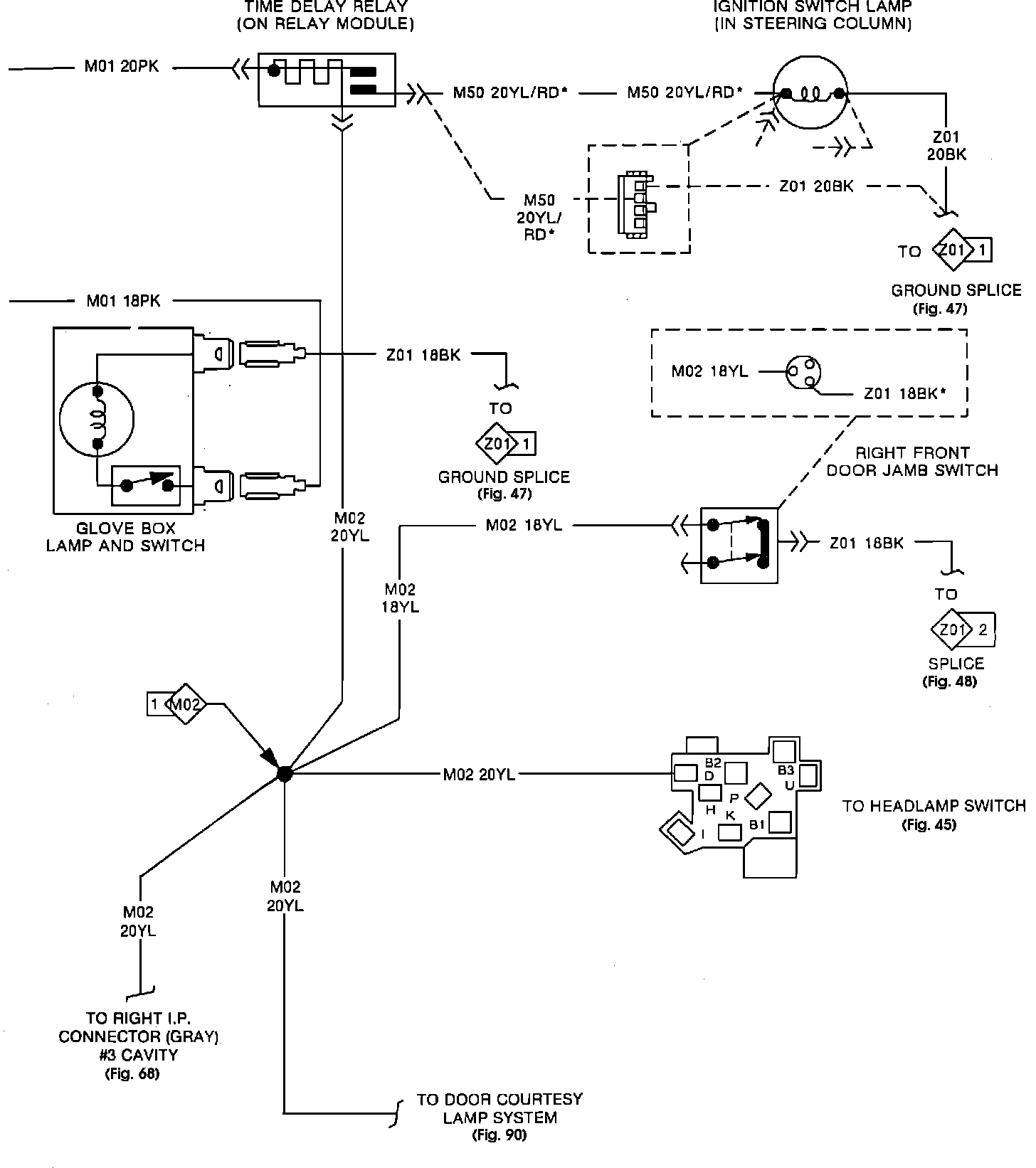

Time Delay Relay System:
Time Delay Relay System:
