Plymouth
>>
1991
>>
Acclaim V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Oil Level
Oil Level

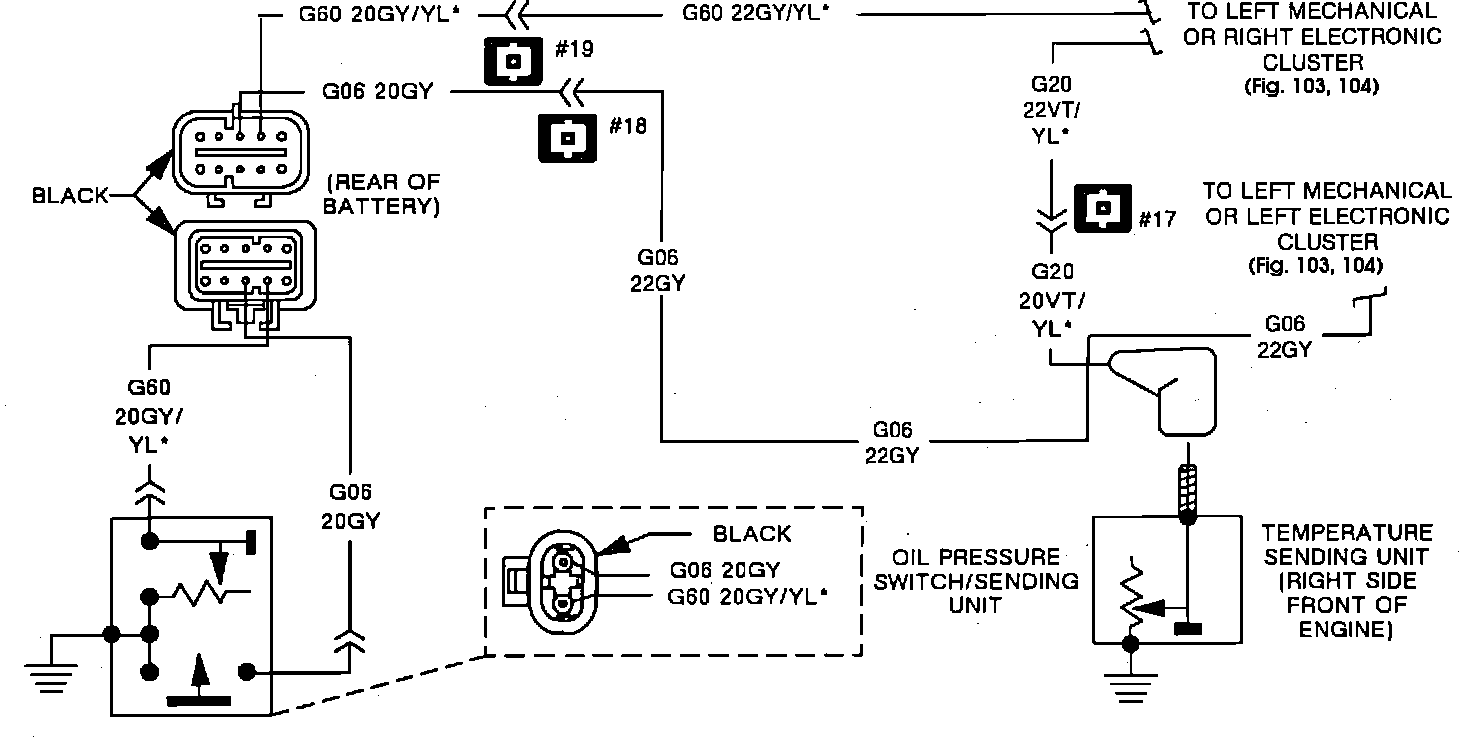

Oil & Temperature Warning System:
