Right Instrument Panel to Body Wiring
Right Instrument Panel to Body Wiring

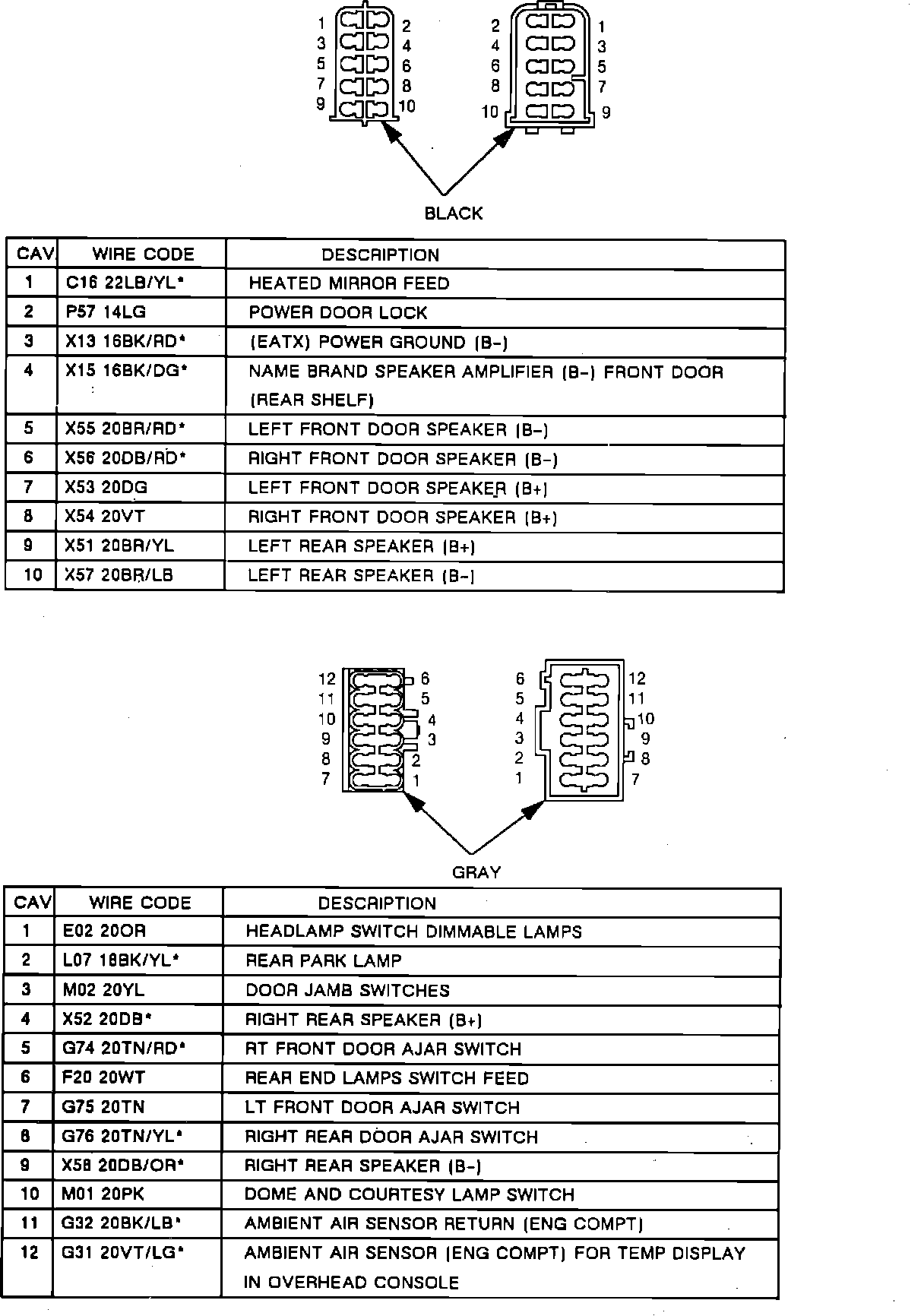

Instrument Panel To Wiring To Right Body:
