Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Engine Compartment Connector Locations
Engine Compartment Connector Locations

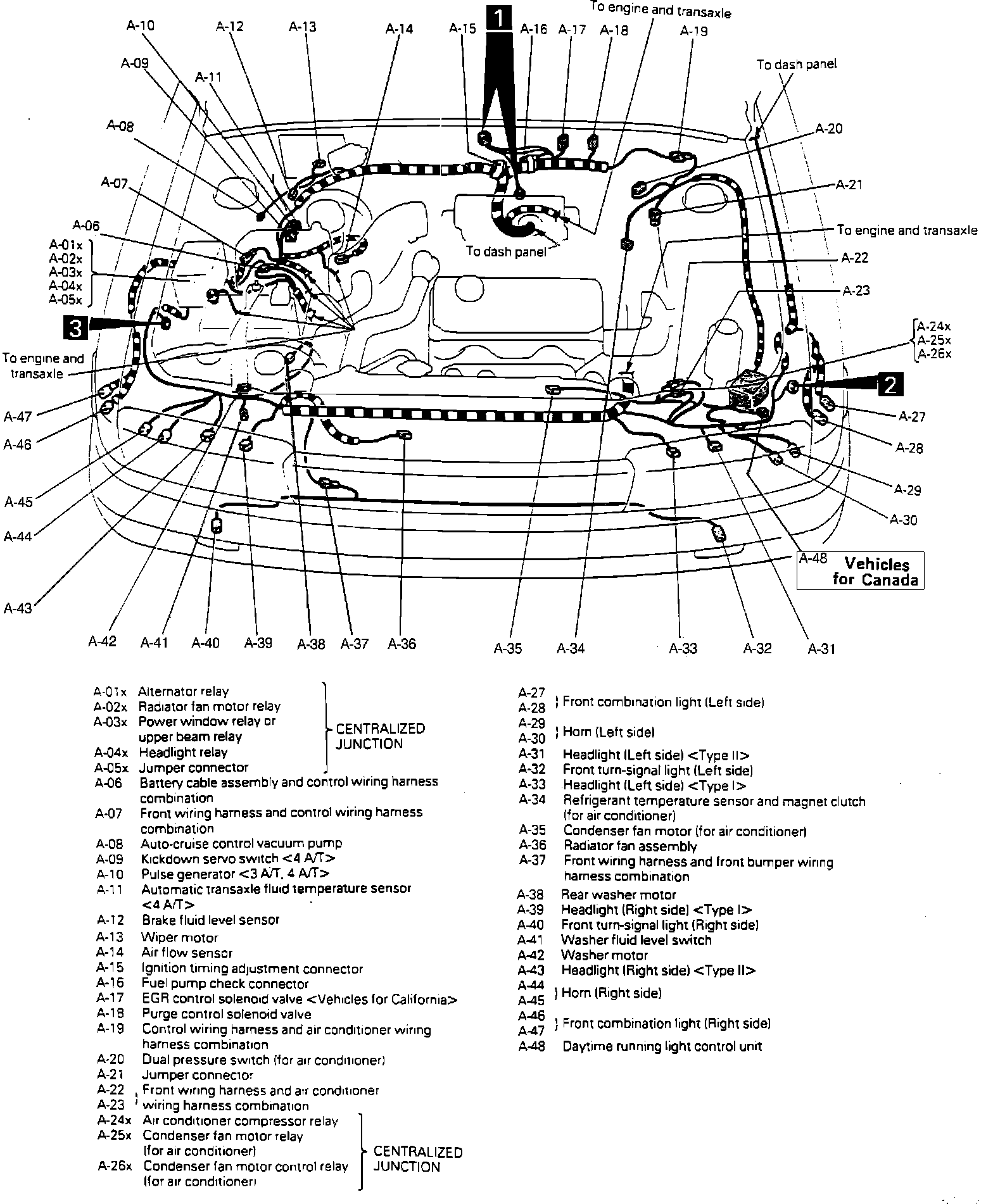

Engine Electrical Harness Connectors:
Transaxle Electrical Harness Connectors:
