Second Seat Belts

PRE-REMOVAL OPERATION
^ Removal of quarter, upper and lower trim

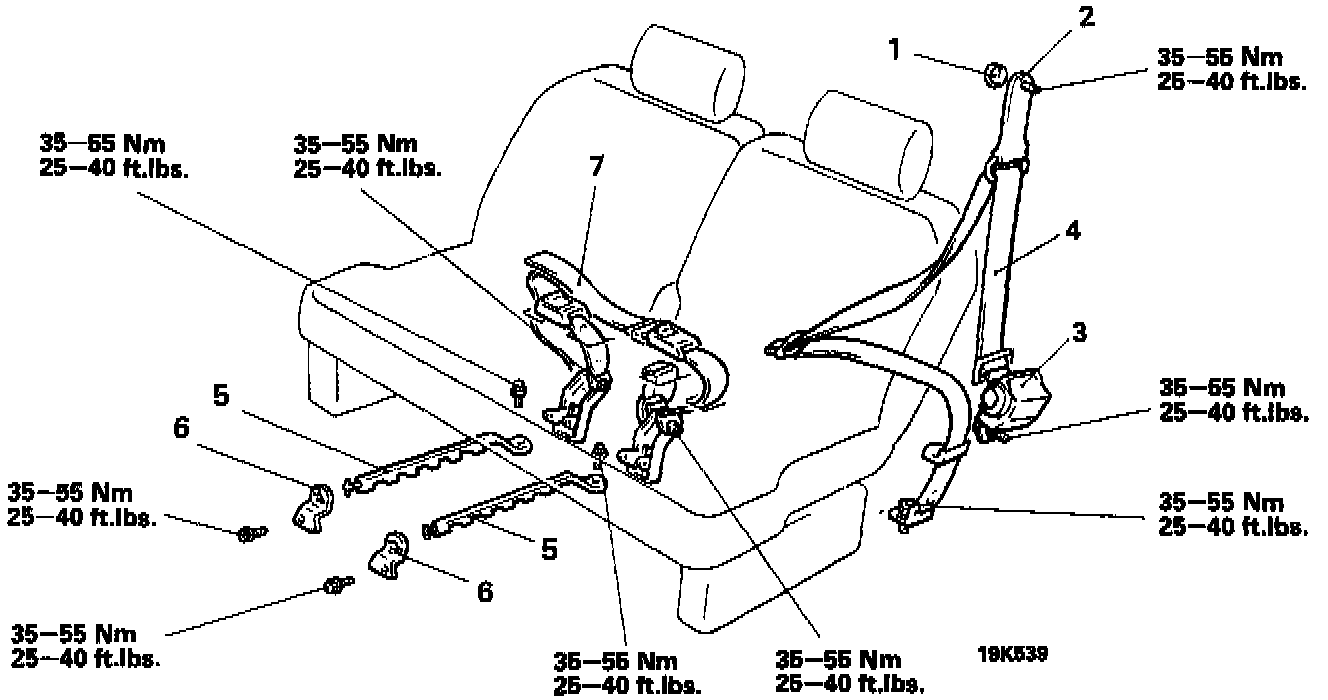

REMOVAL STEPS
1. Sash guide plug
2. Sash guide
3. Emergency locking retractor
4. Seat belt (3-point type)
5. Seat belt rail
6. Seat belt rail holder
7. Seat belt (2-point type)

SERVICE POINTS OF INSTALLATION

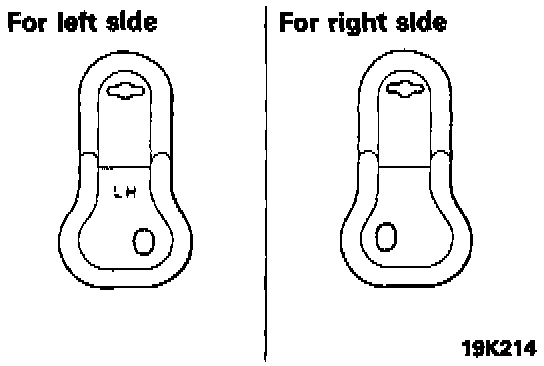

6. Installation Of Seat Belt Rail Holder
When installing the seat belt rail holder, be sure that the left and right sides are placed correctly.

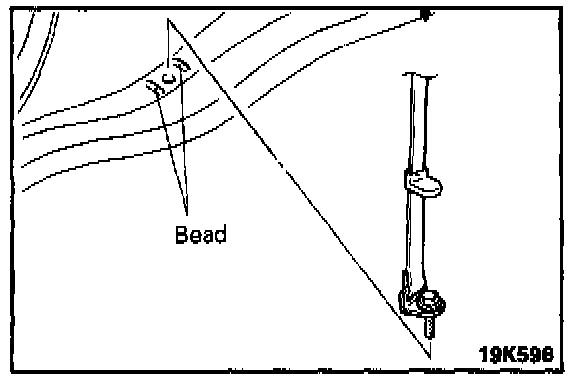

4. Installation Of Seat Belt (3-point Type)
When installing the seat belt anchor plate to the rear floor side member, install so as not to ride up on the bead.
