Home >> Plymouth >> 1991 >> Colt Vista 2WD L4-1997cc 2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp

Headlamp

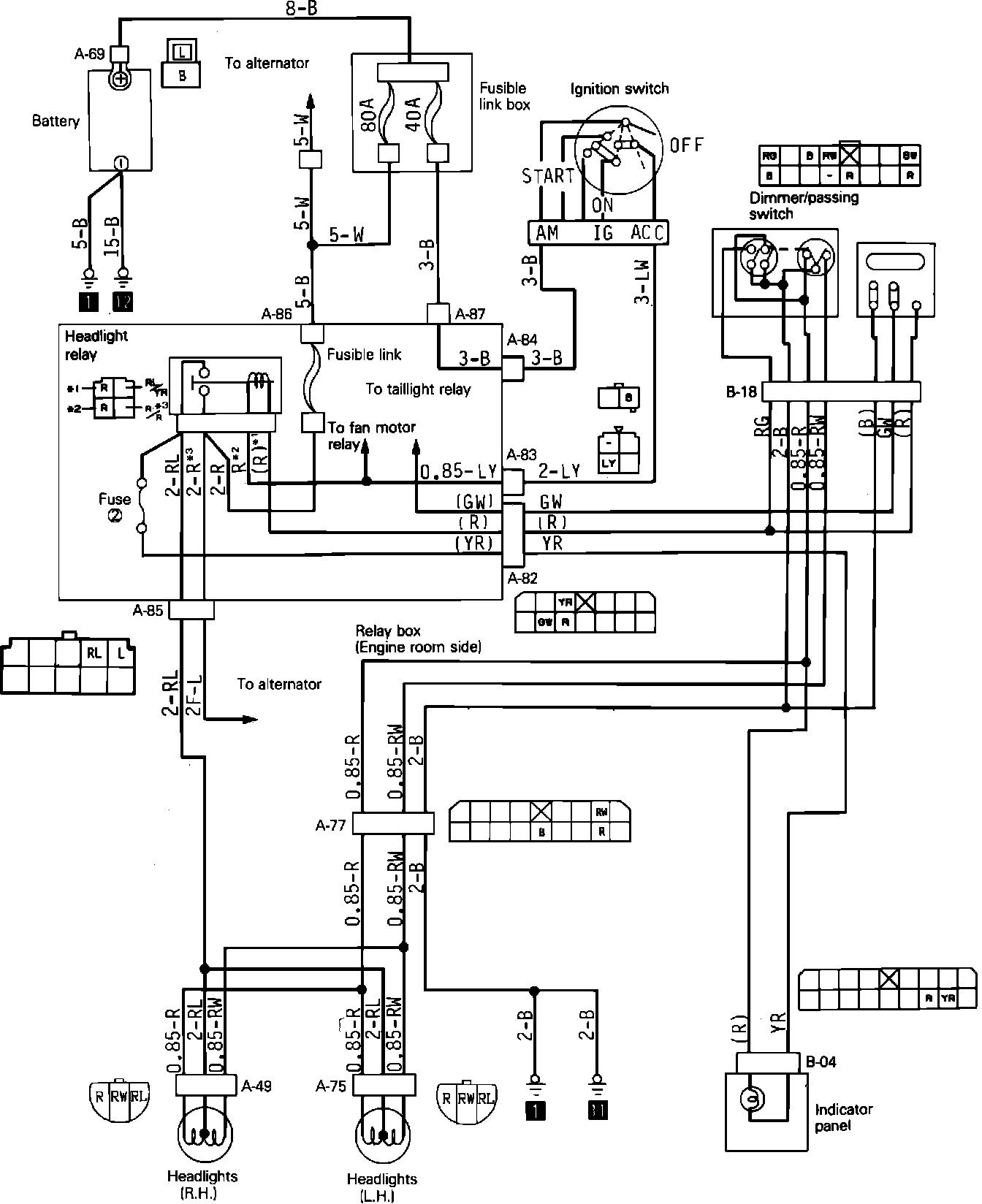

Headlight. For U.S.A. Only:
