Home >> Plymouth >> 1991 >> Colt Vista 2WD L4-1997cc 2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Turn Signals

Turn Signals

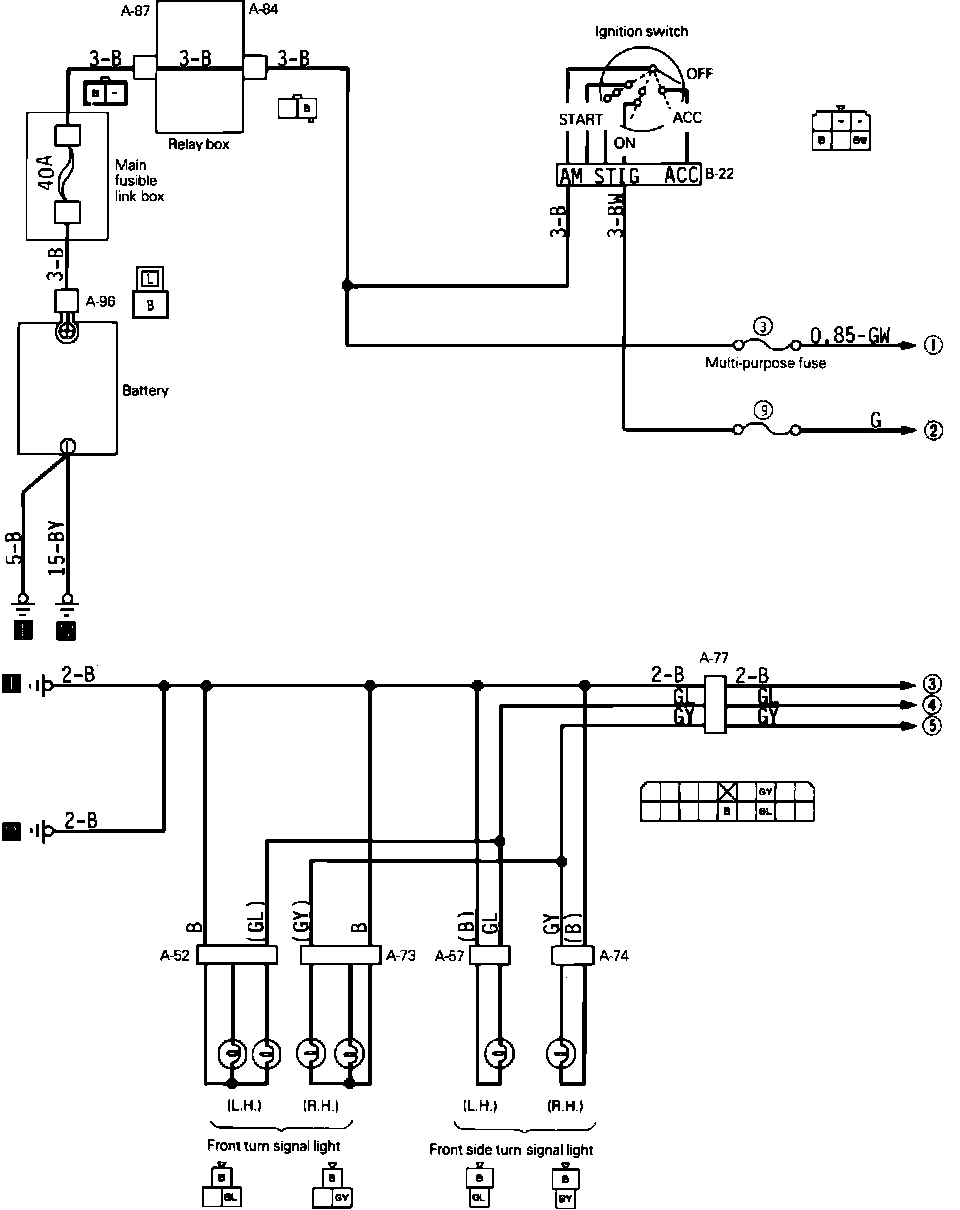

Turn Signal & Hazard Lights:

Turn Signal & Hazard Lights:
