Engine Compartment Connector Locations
Engine Compartment Connector Locations

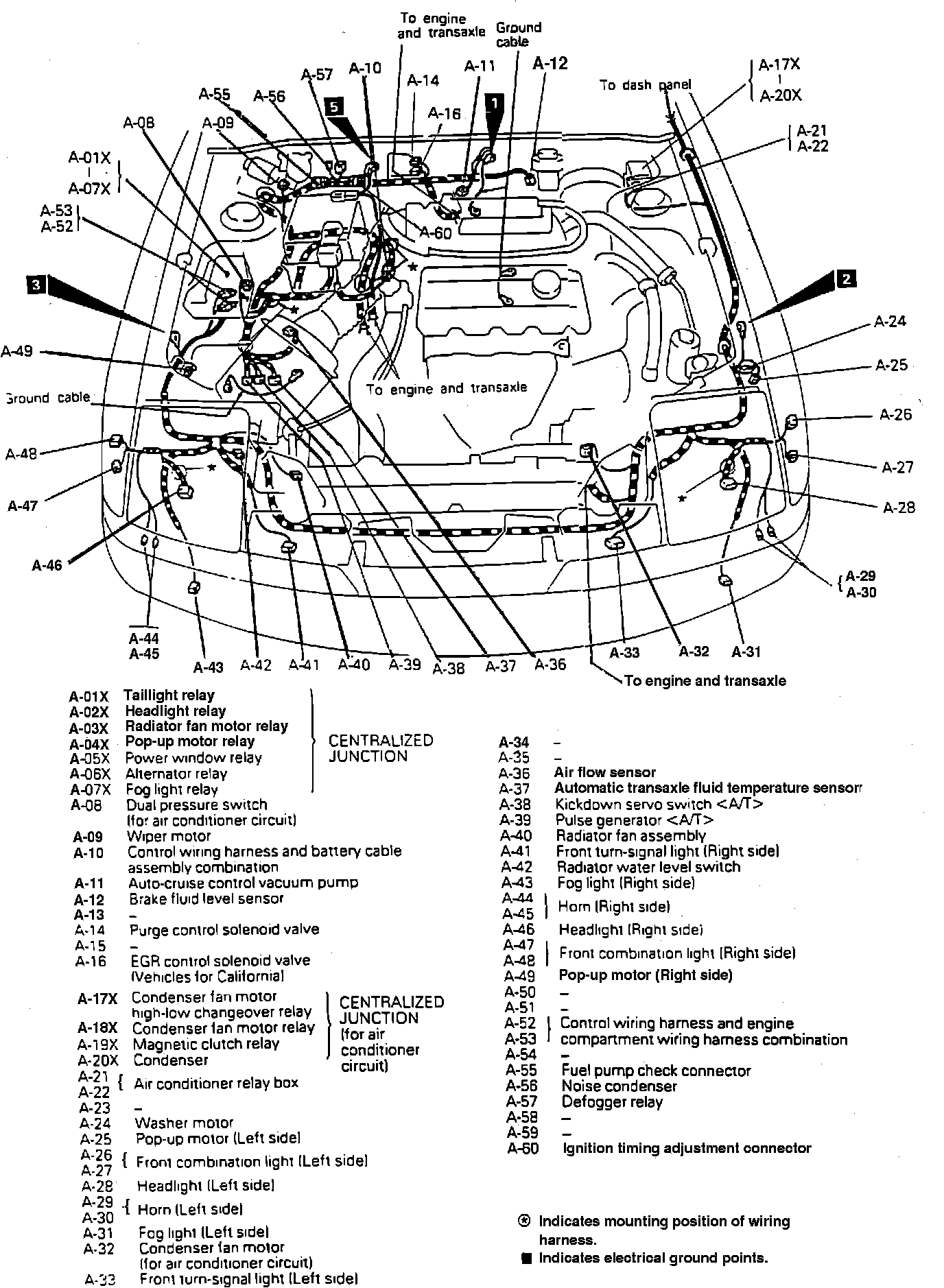

Engine Electrical Harness Connectors:
Transaxle Electrical Harness Connectors:
