Fog/Driving Lamp
>>
Without Daytime Running Lamps
Without Daytime Running Lamps

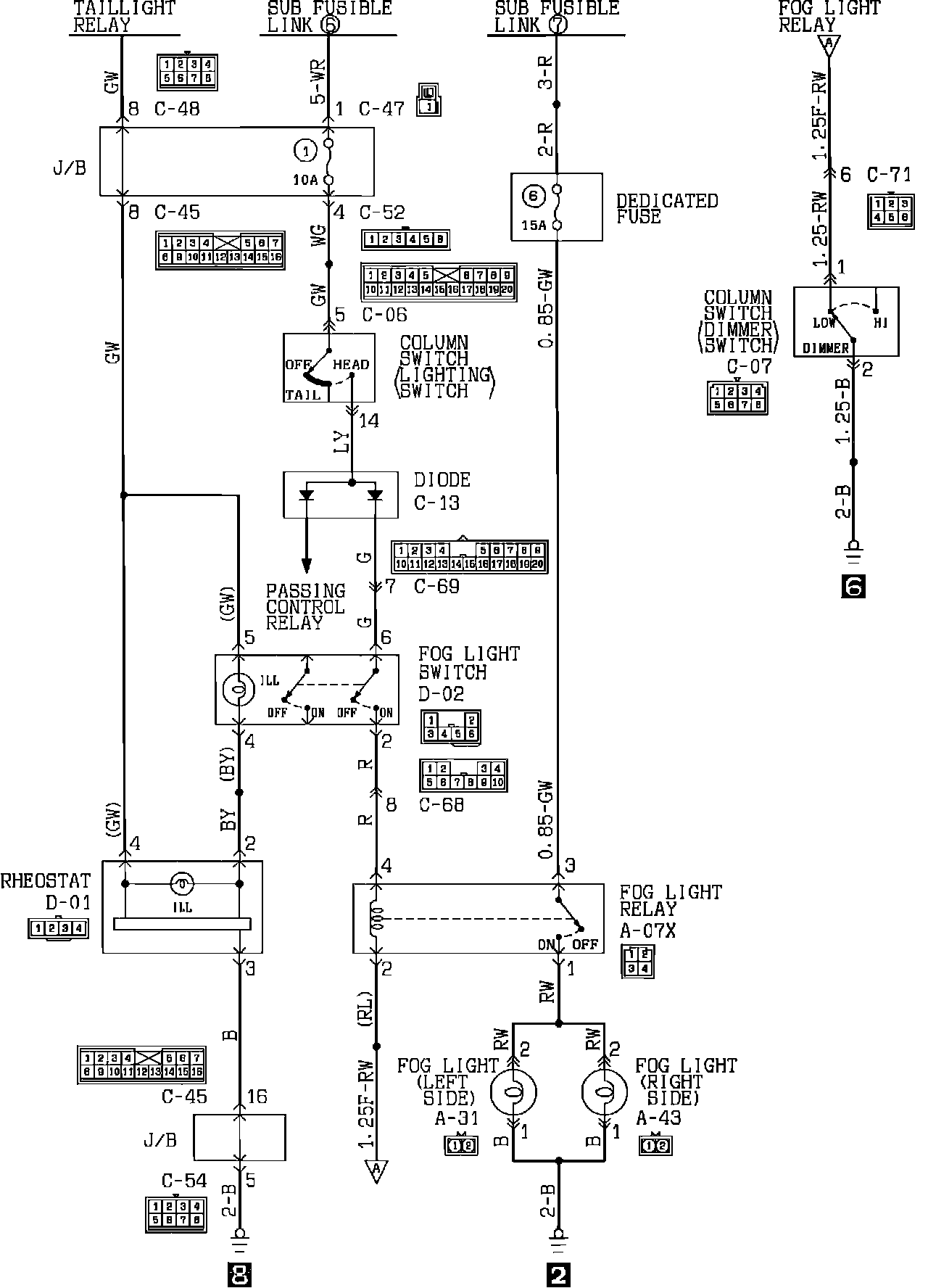

Fog Lamp (Less-Daytime Running Light):
Fog Lamp (All):
