Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1991
>>
Laser L4-1753cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp
>>

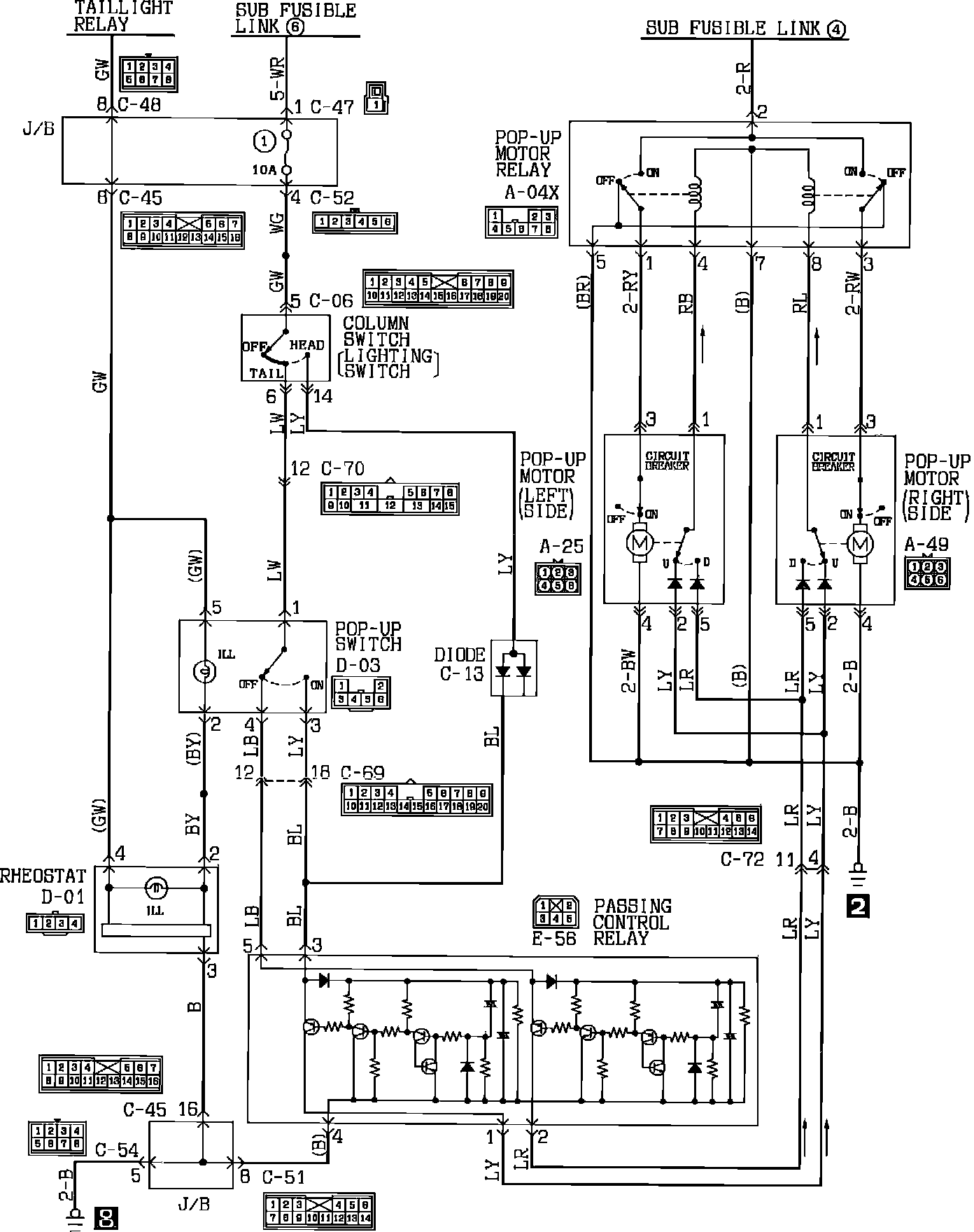

Headlamp Controls With Concealed Lamps
Headlamp Controls With Concealed Lamps
Pop-up Mechanism:
