Home >> Plymouth >> 1991 >> Laser L4-1753cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> Without Daytime Running Lamps

Without Daytime Running Lamps

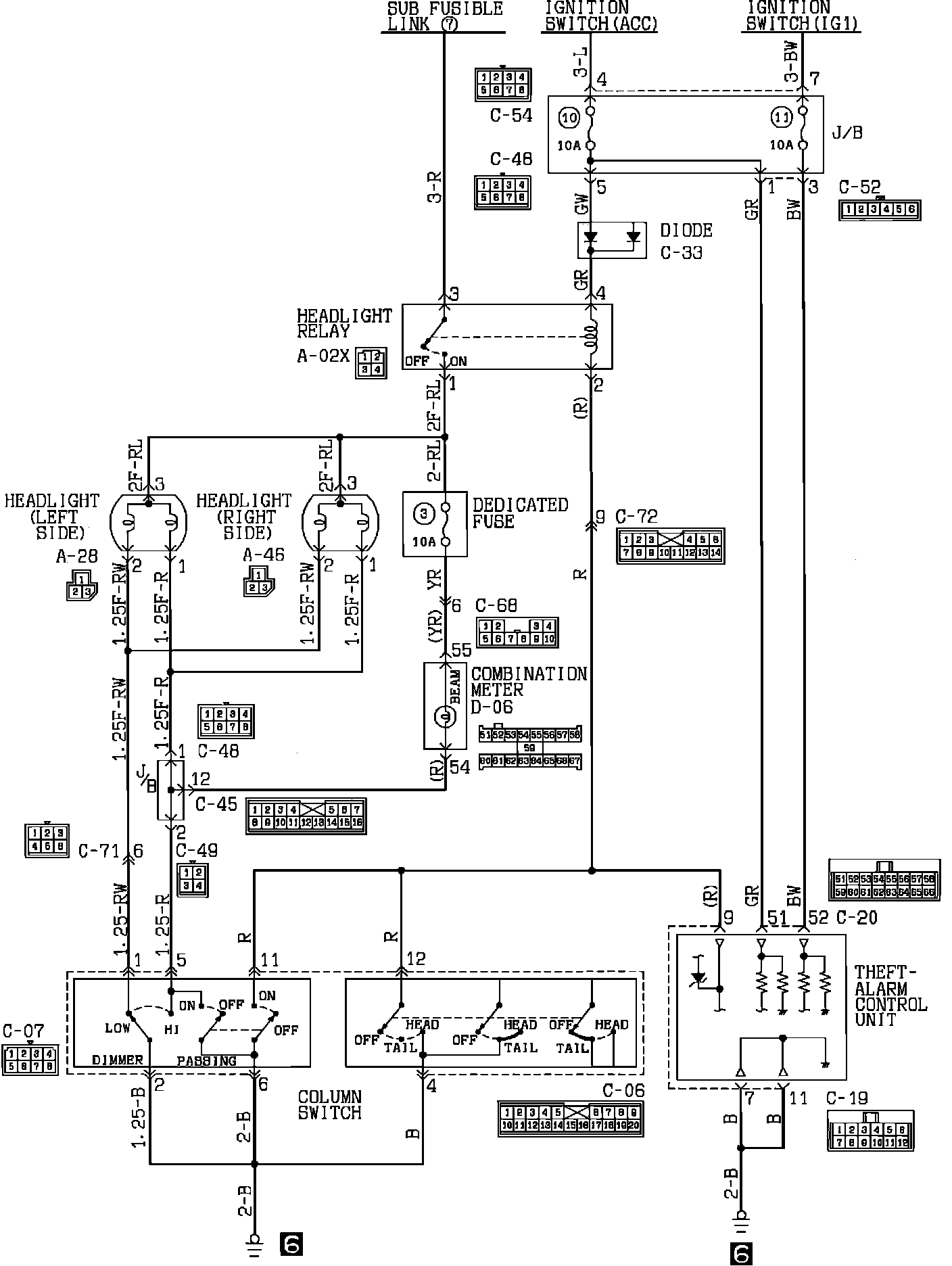

Headlamp (With Theft-Alarm):
