Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1991
>>
Laser L4-1753cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Cluster / Carrier
>>

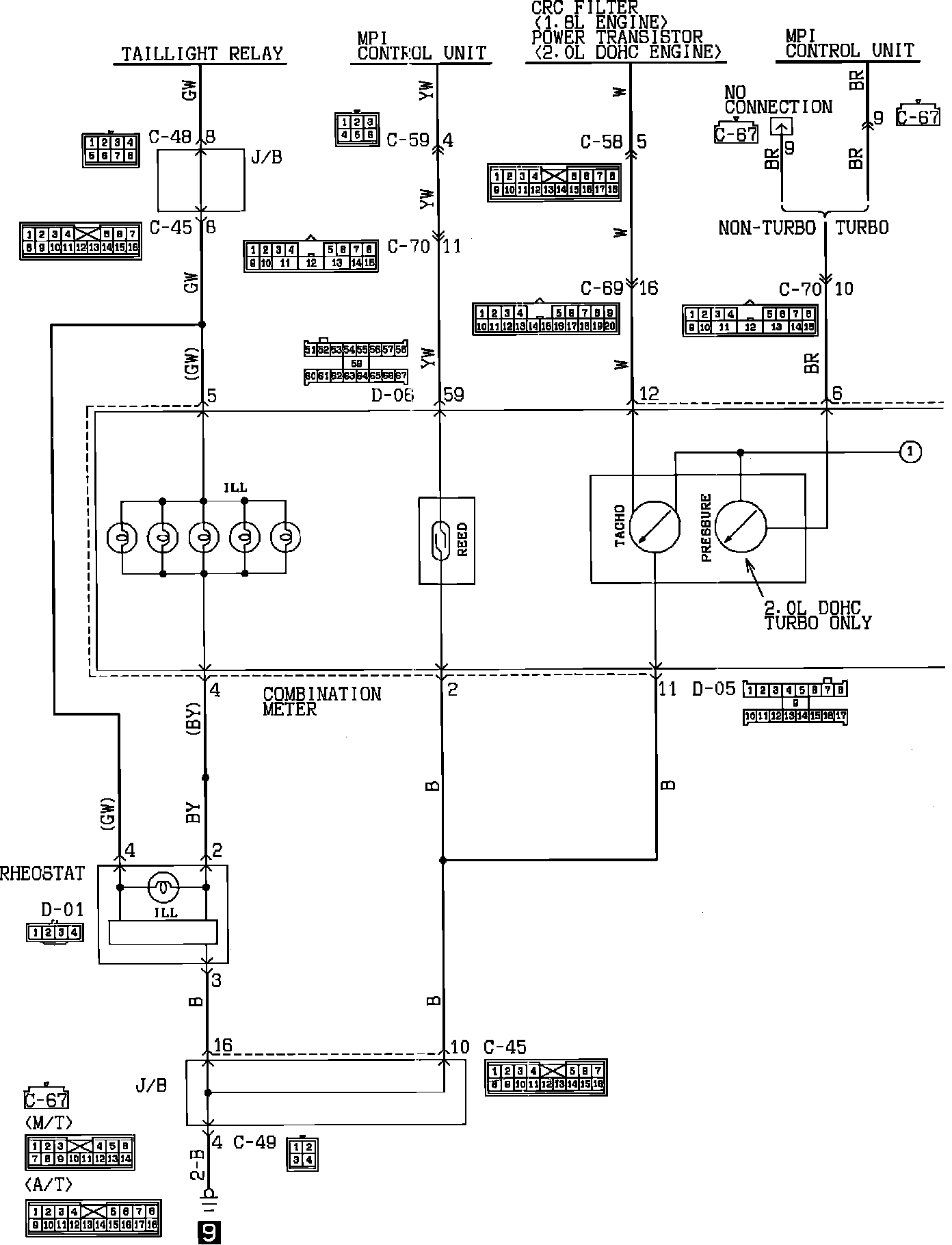

Instrument Panel Circuit Board
Instrument Panel Circuit Board

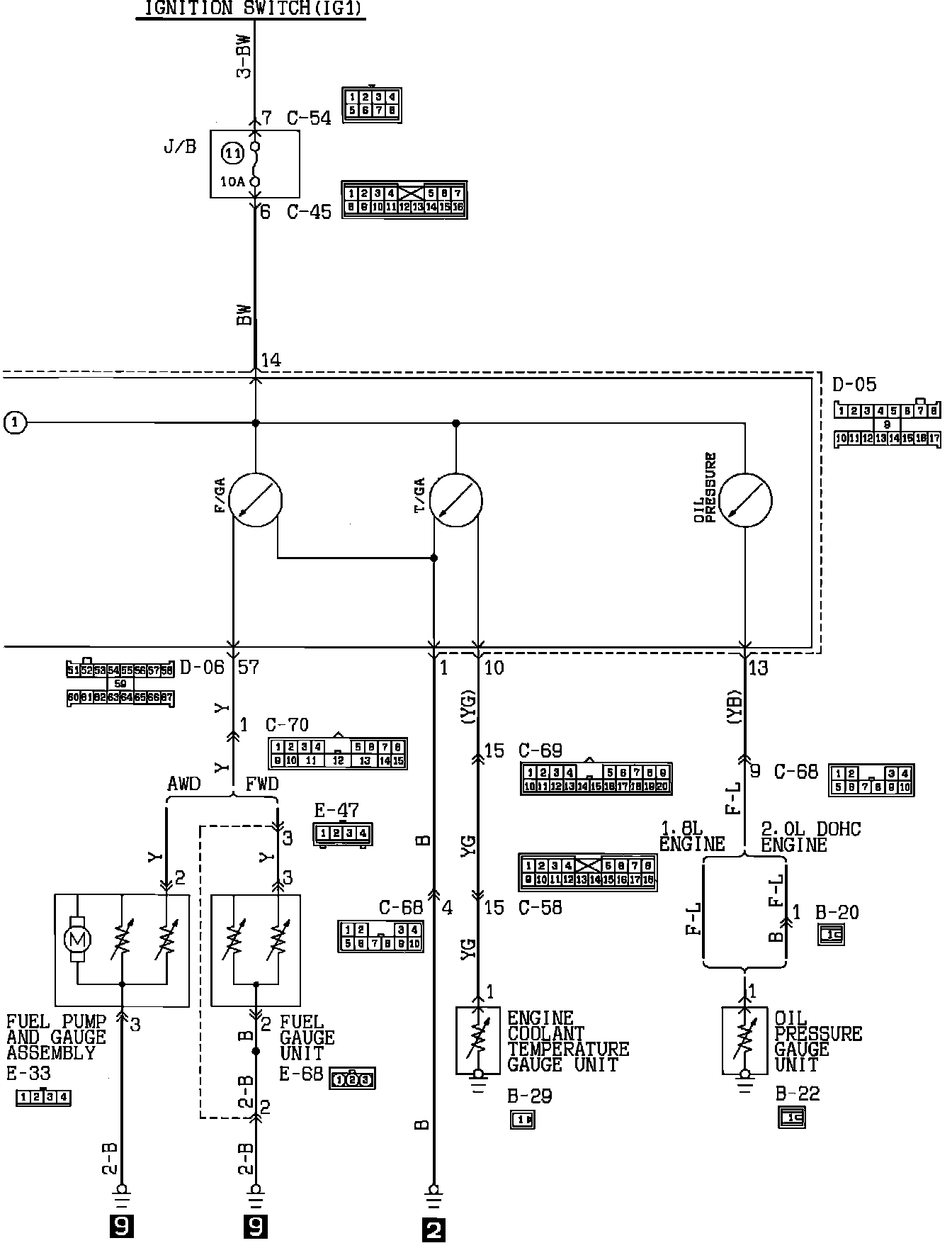

Meters And Gauges:
Meters And Gauges:
