Rear Wiper/Washer System
Rear Wiper/Washer System

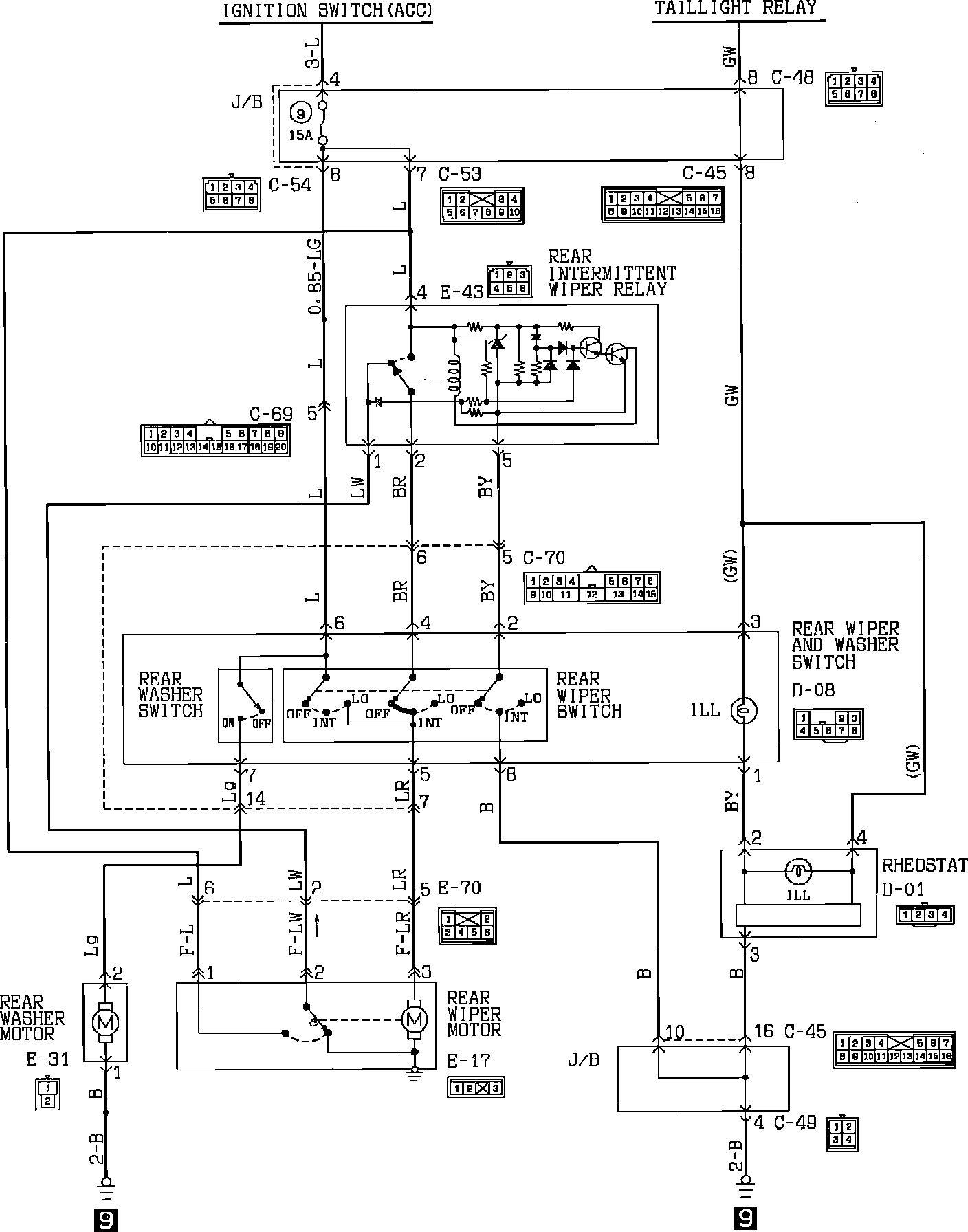

Fig. 67 Rear Wiper System Wiring Diagram:

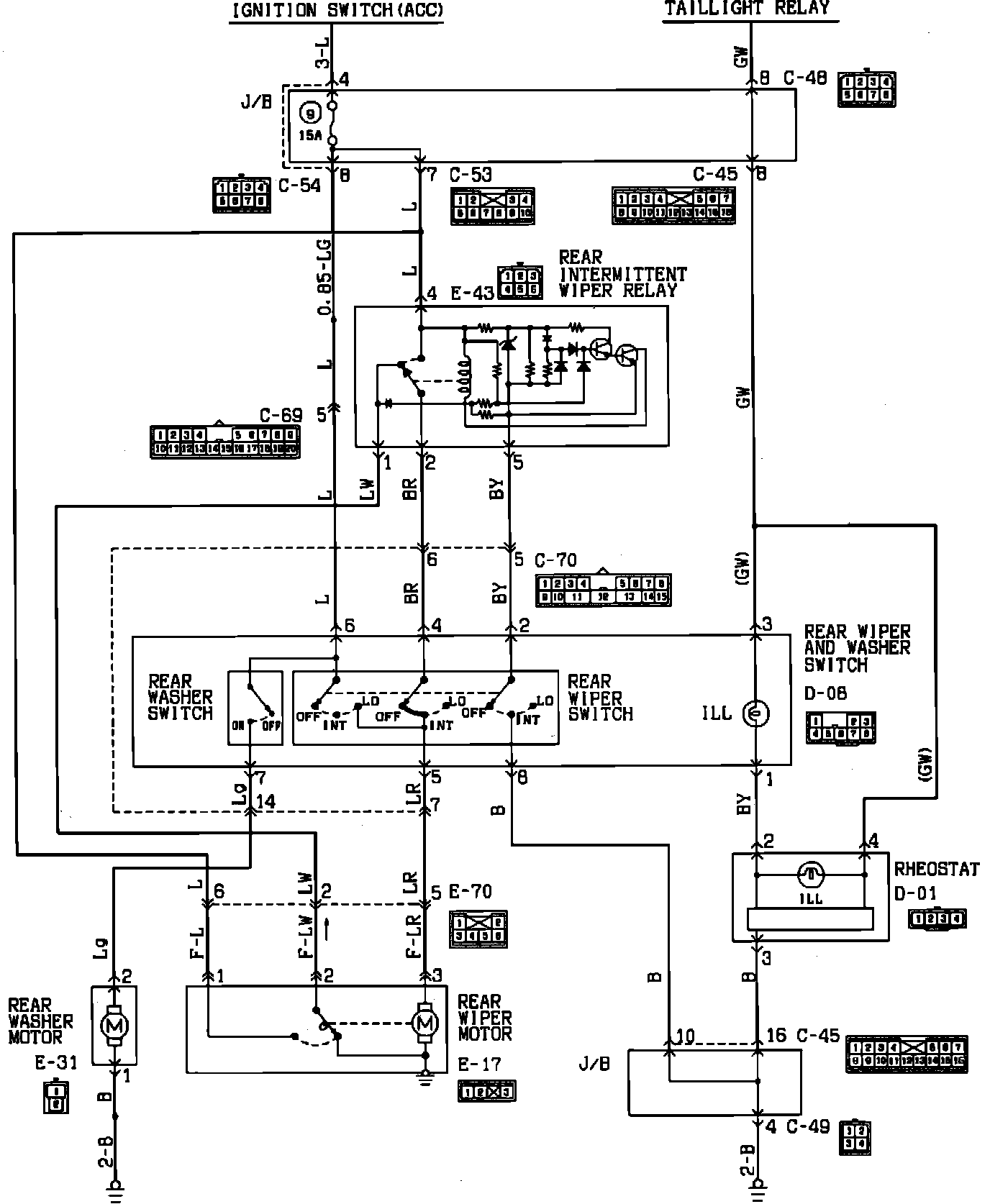

Wiper/Washer (Rear):
